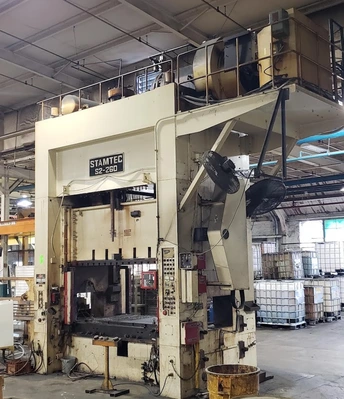

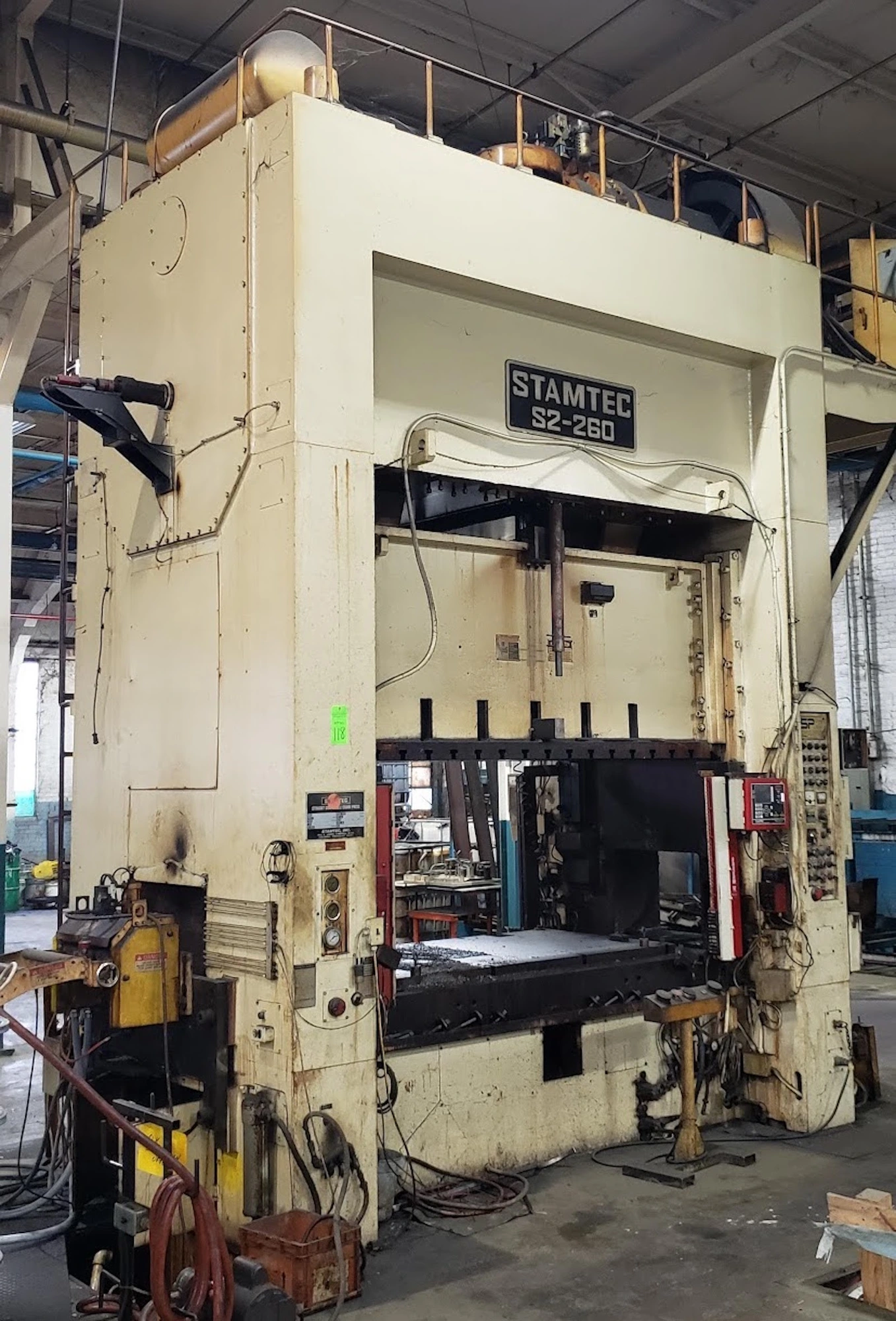

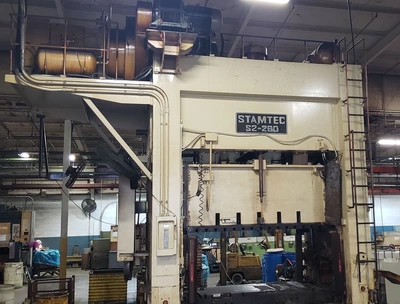

USED 1989 STAMTEC STAMTEC S2-260 PRESS
  • USED 1989 STAMTEC STAMTEC S2-260 PRESS
  • USED 1989 STAMTEC STAMTEC S2-260 PRESS
  • USED 1989 STAMTEC STAMTEC S2-260 PRESS
  • USED 1989 STAMTEC STAMTEC S2-260 PRESS
  • USED 1989 STAMTEC STAMTEC S2-260 PRESS
  • USED 1989 STAMTEC STAMTEC S2-260 PRESS
  • USED 1989 STAMTEC STAMTEC S2-260 PRESS

USED 1989 STAMTEC STAMTEC S2-260 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Straight Side Presses
Manufacturer:
STAMTEC
Model:
STAMTEC S2-260 PRESS
Year:
1989
Stock #:
6308
Description

12" STR, 31.5" DIE HEIGHT, 96X48 BED, 6" ADJ, 25-50 SPM

Specifications
Dimensions20' H X 20' RL X 9.5' FB20' H X 20' RL X 9.5' FB
Weight108,000 LBS108,000 LBS

CAPACITY: 286 US TONS
STROKE: 12"
max DIE HEIGHT: 31.5" OVER BOLSTER BOLSTER SDAU
BED SIZE: 96" x 48" (RL X FB)
SLIDE ADJUSTMENT: 6" MOTORIZED
SPEED: 25 - 50 SPM
SLIDE AREA: 96" x 48" (RL X FB) t-slotTED
BOLSTER PLATE: 96" x 48" (RL X FB) t-slotTED X 6.5" hIGH t-slotTED

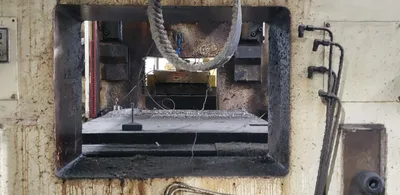

WINDOW SIZE: 27" WIDE X 19" HIGH
distance between uprights: 108"
FLOOR TO BED HEIGHT: 47.5"
CLUTCH: STAMTEC AIR CLUTCH / BRAKE COMBINATION
ELECTRICS: 40 HP 1750 RPM 240V-3-60 EDDY CURRENT MOTOR & STAMTEC RELAY PRESS CONTROL
Note: __
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

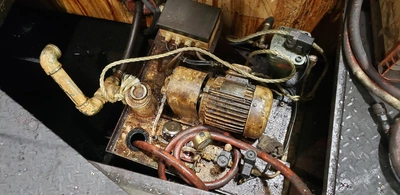

RECIRCULATING LUBRICATION RESERVOIR W/PUMP DUAL AIR COUNTERBALANCED RAM FLOOR STANDING
