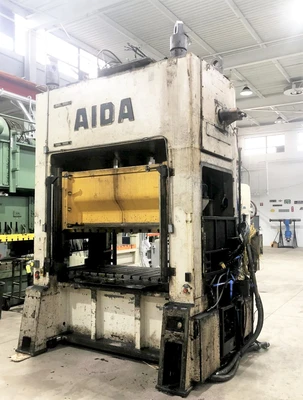

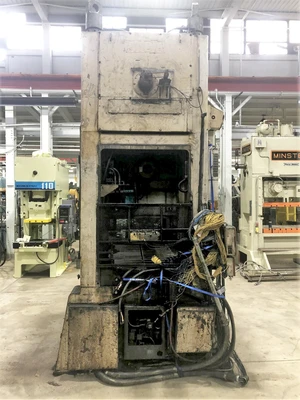

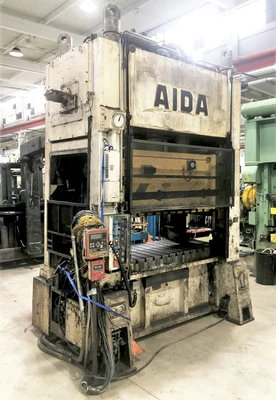

USED 1980 AIDA PRESSES AIDA PDA-20M PRESS

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS
  • USED 1980 AIDA PRESSES AIDA PDA-20M PRESS

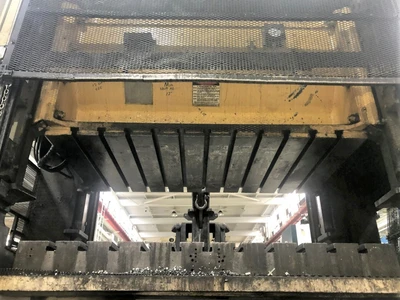

USED 1980 AIDA PRESSES AIDA PDA-20M PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Straight Side Presses
Manufacturer:
AIDA
Model:
AIDA PDA-20M PRESS
Year:
1980
Stock #:
5886
Description

5.9" Stroke, 24" Shut Height, 72" X 39" Bed Area, Variable Speed 48-120 SPM, New in 1980

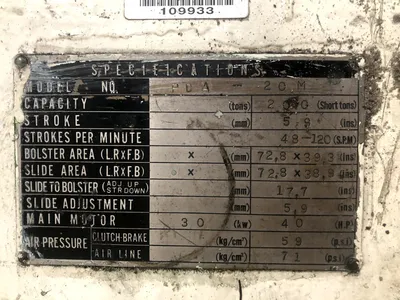

Specifications
Dimensions110" X 81" (RL X FB) X 189" HIGH110" X 81" (RL X FB) X 189" HIGH
Weight60,000 LBS.60,000 LBS.

CAPACITY: 220 TONS
STROKE: 5.9"
SHUT HEIGHT TO BED: 17.72" (OVER BOLSTER)
SPEED: 48 - 120 SPM (VARIABLE)
BED AREA: 72.8" X 39.4" (RL X Fb)
RAM ADJUSTMENT: 5.9" (MOTORIZED)

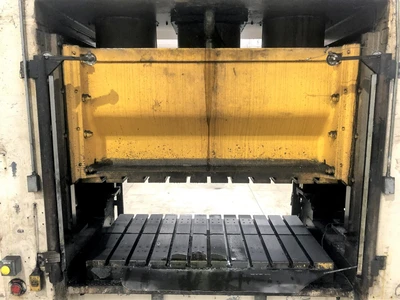

RAM AREA: 72.8" X 38.9" (RL X FB)
BOLSTER SIZE: 72.8" X 39.4" (RL X FB) X 6.29" THICK
DISTANCE BETWEEN UPRIGHTS: 80" WIDE
WINDOW SIZE: 29.5" WIDE X 21.6" HIGH
FLOOR TO BED: 51.9"
CLUTCH: AIDA AIR CLUTCH & BRAKE

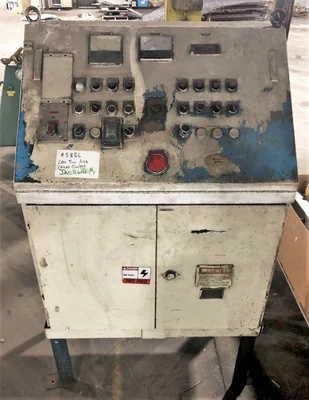

PRESS CONTROLS: __

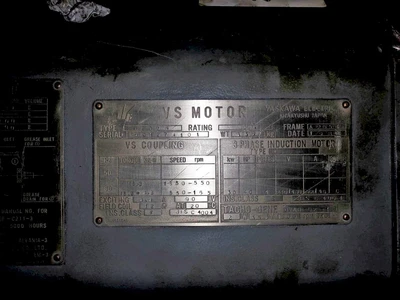

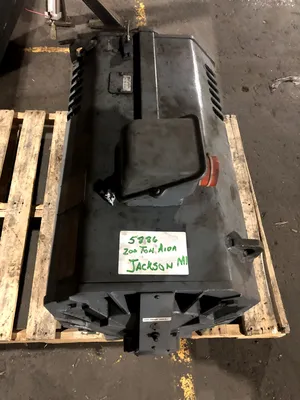

ELECTRICS: 40 HP 230/460V-3-60.YASKAWA ELECTRIC VS MOTOR | 92 / 46 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

TIE ROD, STEEL FRAME CONSTRUCTION HYDRAULIC OVERLOADS IN RAM RECIRCULATING OIL LUBRICATION SYSTEM AIR COUNTERBALANCED RAM SINGLE END DRIVE WITH GEARS IN OIL FLOOR STANDING BASE
