USED 1967 AIDA PRESSES AIDA PD-STG-200M PRESS

USED 1967 AIDA PRESSES AIDA PD-STG-200M PRESS

USD $49,500.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Straight Side Presses
Manufacturer:
AIDA
Model:
AIDA PD-STG-200M PRESS
Year:
1967
Stock #:
5046
Description

11.8" STR, 16.5" SH OB, 59.8X42.2 BED, 25 SPM, 4.9 ADJ, PRICE CUT, RECONDITIONING NOW

Specifications
Dimensions108" X 72" (RL X FB) X 173" HIGH108" X 72" (RL X FB) X 173" HIGH
Weight44,000 LBS44,000 LBS

CAPACITY: 220 TONS
STROKE: 11.8"
MAX SHUT HEIGHT: 16.5" SDAU OVER BOLSTER
BED AREA: 59.8" X 42.2" (RL X FB)
SPEED: 25 SPM
RAM ADJUSTMENT: 4.9" MOTORIZED
RAM AREA: 53.5" X 39.3" (RL X FB) T-SLOTTED

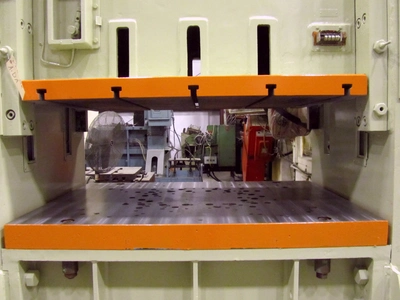

BOLSTER PLATE: 60" X 42.5" (RL X FB) X 4" THICK SOLID PLATE
DISTANCE BETWEEN UPRIGHTS: 61"
FLOOR TO BED HEIGHT: 28.5"
WINDOW SIZE: 16" WIDE x 34" HIGH
CLUTCH: AIDA AIR CLUTCH / BRAKE COMBINATION

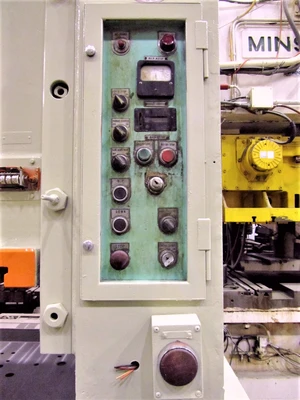

PRESS CONTROLS: new cieco 1100r control INCLUDED AT reconditioned price (NOT AS-IS PRICE)
ELECTRIC MOTOR: 20 hp 1750 rpm 240/480v-3-60 motor & existing relay control
Note: __
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

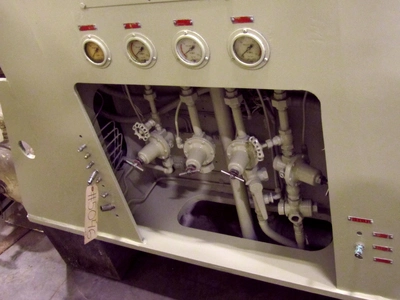

30.8 ton / 5.9" stroke air cushion in bed, steel frame construction, dual air counterbalances, floor standing w/o cushion, cushion in floor, gears in oil uPDATE: MACHINED bolster plate STEAM CLEANED, SANDED, PRIMED & PAINTED
