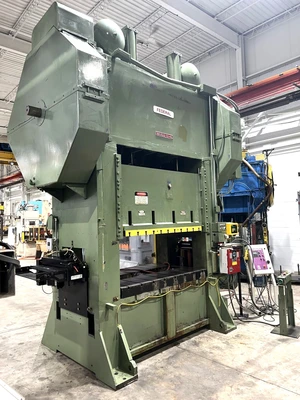

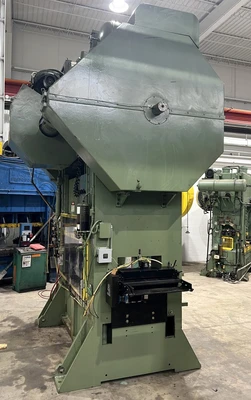

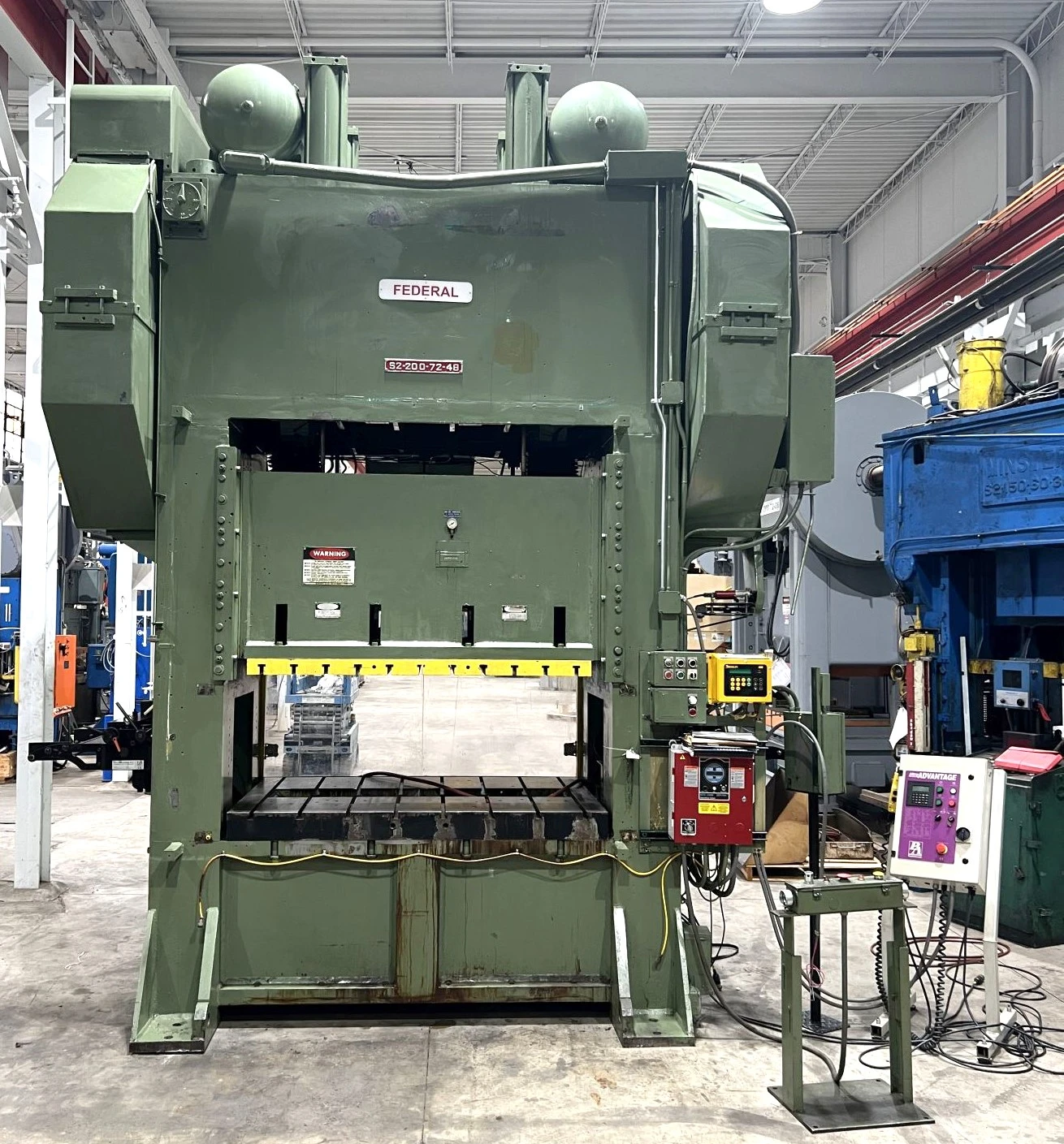

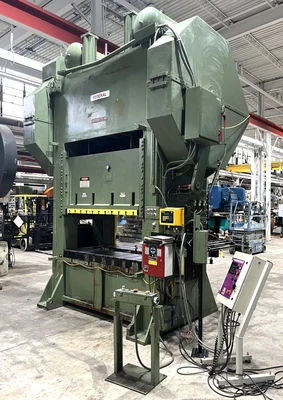

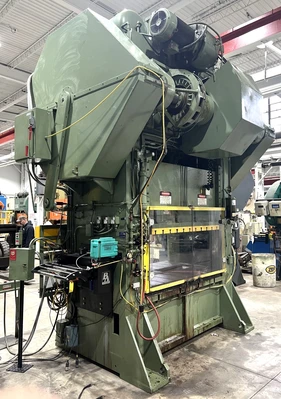

USED 1972 FEDERAL FEDERAL S2-200-72-48 PRESS

USED 1972 FEDERAL FEDERAL S2-200-72-48 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Straight Side Presses
Manufacturer:
FEDERAL
Model:
FEDERAL S2-200-72-48 PRESS
Year:
1972
Stock #:
6825
Description

10" Stroke, 28" Shut Height, 72 x 48, 25-50 SPM Variable Speed, Wintriss Controls

Specifications
Dimensions156" X 104" (LR X FB) X 186" HIGH156" X 104" (LR X FB) X 186" HIGH
Weight82,000 LBS.82,000 LBS.

CAPACITY: 200 TONS
STROKE: 10"
MAX. SHUT HEIGHT TO BED: 28"
RAM ADJUSTMENT: APPROX. 8" motorized
BED AREA: 72" X 48" (RL X FB)

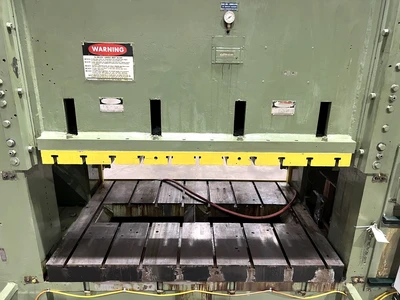

top BOLSTER PLATE: 72" X 48" (RL X FB) X 3" THICK T-SLOTTED BOLSTER PLATE
bottom bolster Plate: 72" X 48" (RL X FB) X 5" THICK T-SLOTTED BOLSTER PLATE with 63" x 12" (RL+FB) Hole

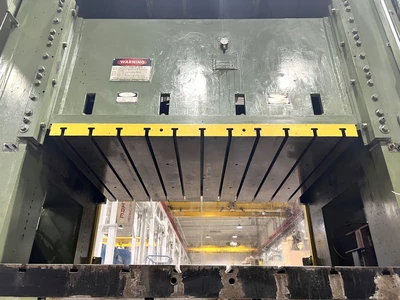

RAM / SLIDE AREA: 66.75" x 48" (RL X FB)
SPEED: 25 - 50 SPM
WINDOW SIZE: 24" W x 24" H
CLUTCH: FEDERAL AIR CLUTCH AND BRAKE
ELECTRIC MOTOR: 25 HP 1750 rpm EDDY CURRENT drive

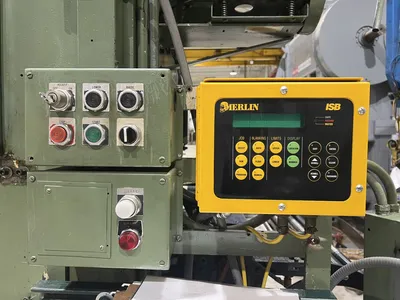

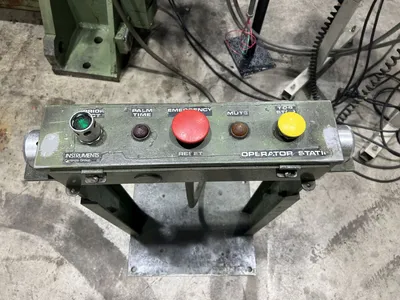

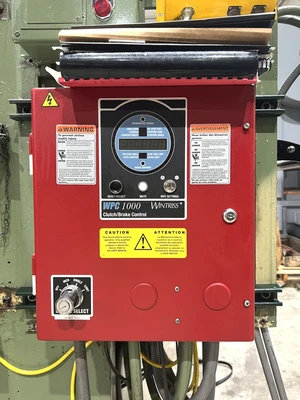

PRESS CONTROLS: WINTRISS WPC 1000 CLUTCH / BRAKE CONTROL, MERLIN ISB DISPLAY
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building
