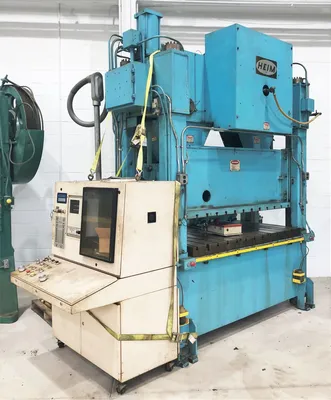

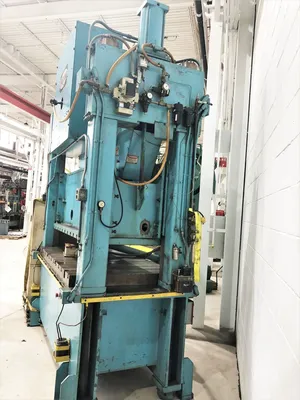

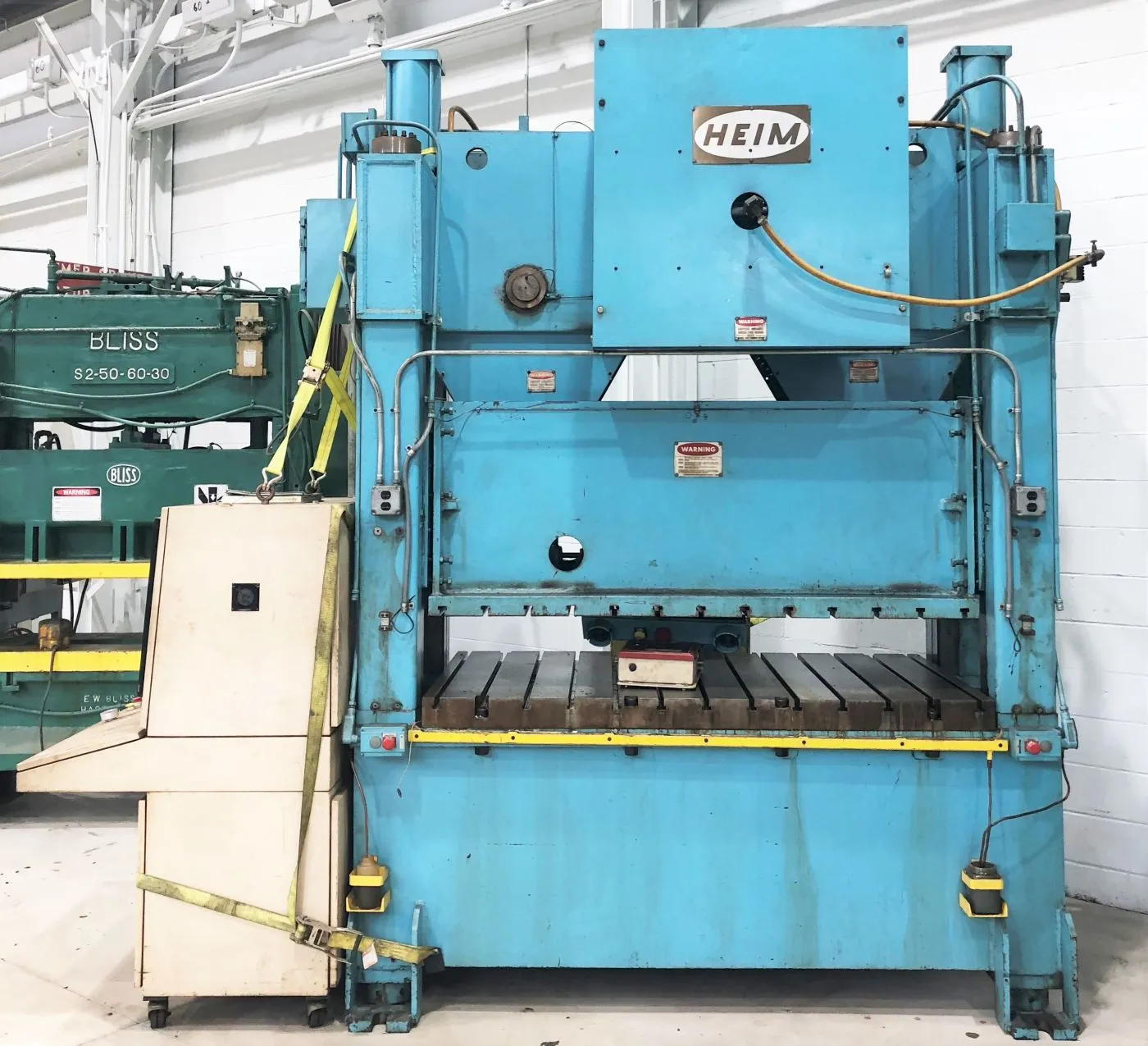

USED HEIM HEIM S150-42-78 PRESS

USD $32,500.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Straight Side Presses
Manufacturer:
HEIM
Model:
HEIM S150-42-78 PRESS
Stock #:
5025
Description

8" Str, 16" Shut Height, 76" x 42" Bed, Air Counterbalances, 22" Wide Windows, T-Slotted Bolster Plate, Approx. 40 SPM,, "Link" Controls

Specifications
Dimensions132" RL X 72" FB X 137" HIGH132" RL X 72" FB X 137" HIGH
Weight40,000 LBS40,000 LBS

CAPACITY: 150 TON
STROKE: 8"
SHUT HEIGHT TO BED: 16" SDAU
BED AREA: 76" RL X 42" FB
SPEED: approx. 40 spm

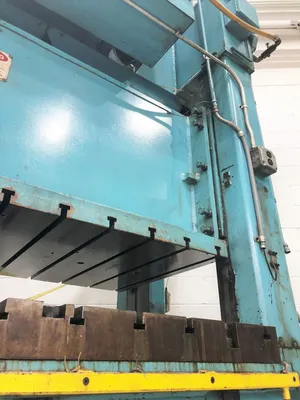

RAM AREA: 76" RL X 30" FB - T-SLOTTED
RAM ADJUSTMENT: APPROX 6" - 7" Adj. (motorized)
BOLSTER PLATE SIZE: 4" x 78" RL X 42" FB - t-Slotted
WINDOW SIZE: 22" WIDE X 21" HIGH
FLOOR TO BED: 38.25"
CLUTCH: HEIM AIR CLUTCH & BRAKE

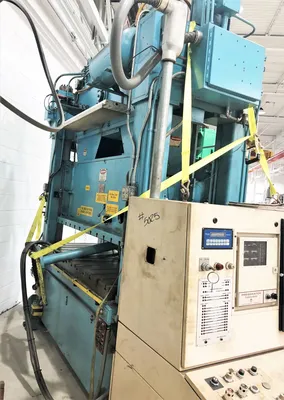

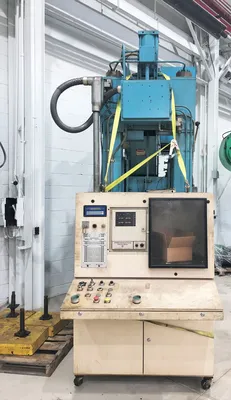

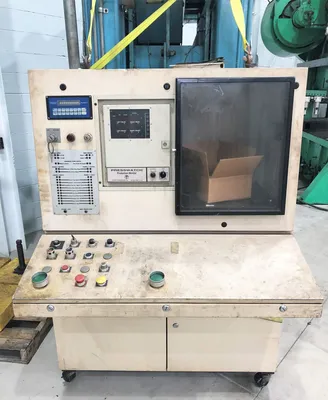

ELECTRICS: LINK SYSTEM #ss-501 controls, 15HP MOTOR 230/460V | tRIAD BRAKE MONITOR
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

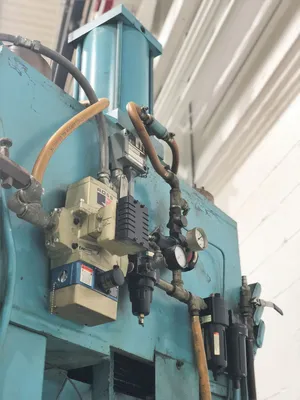

tie rod steel frame construction, DUAL AIR COUNTERBALANCES, ROSS AIR VALVES, FLUSH FLOOR DESIGN, Bijur Oil lubrication system, wintriss SMARTPAC DIE MONITOR, TOLEDO TONNAGE MONITOR, & floor standing
