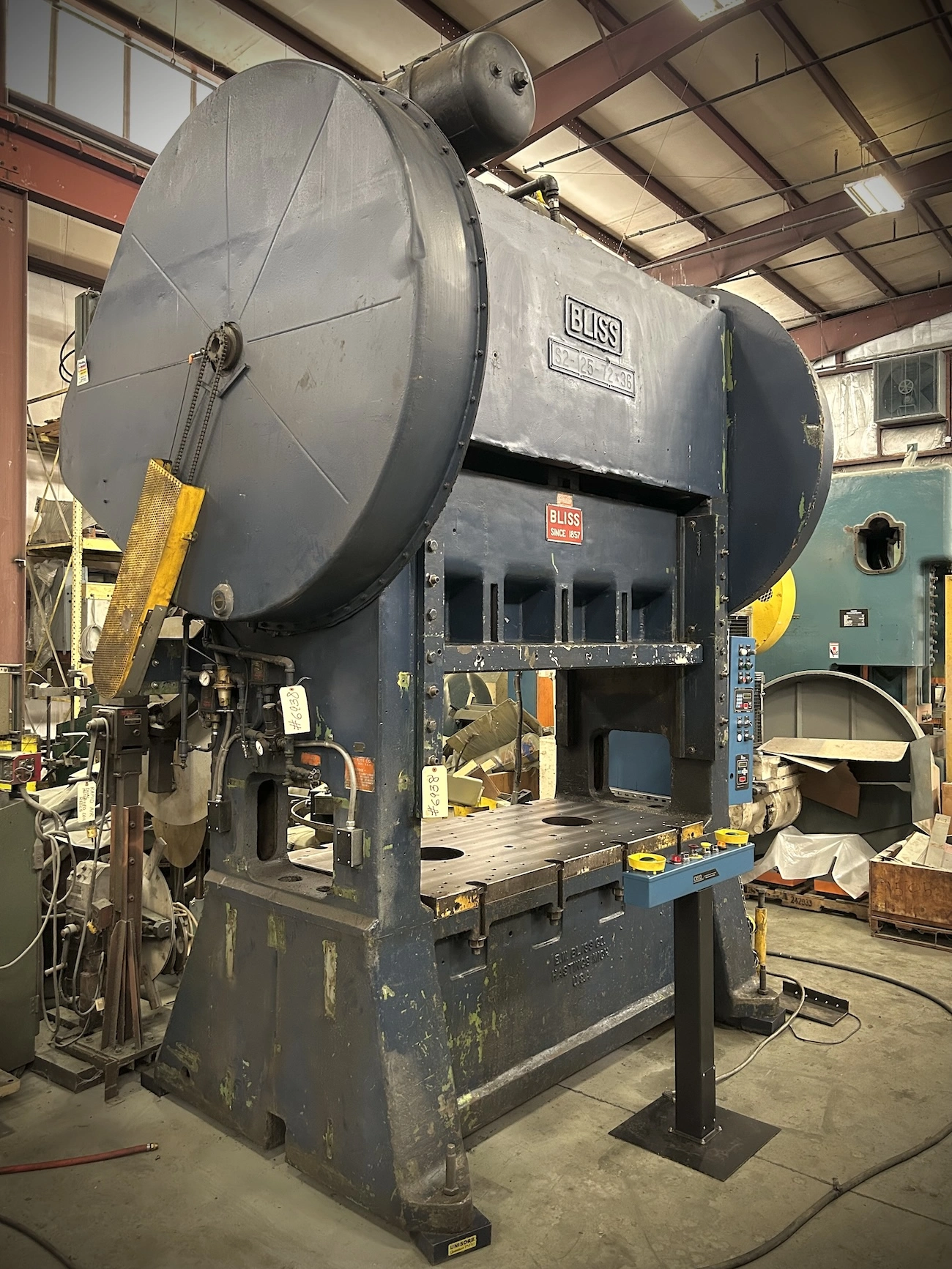

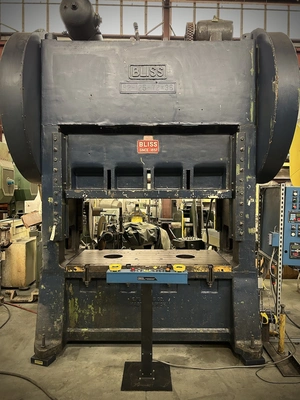

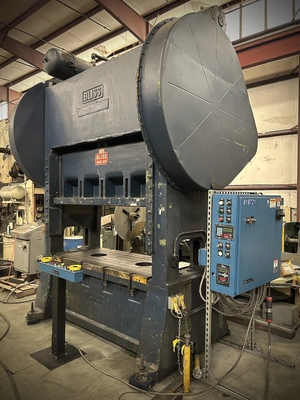

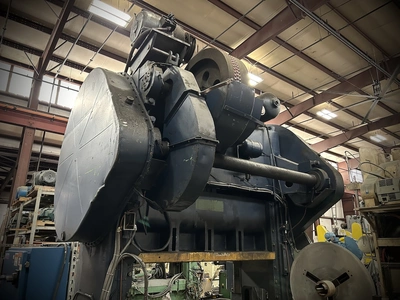

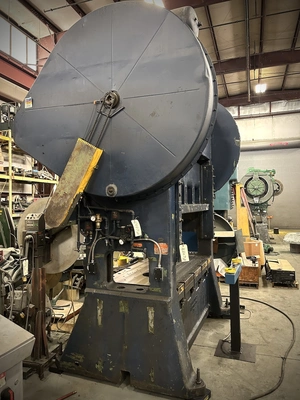

USED BLISS BLISS S2-125-72-36 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

Overview
Manufacturer:
BLISS
Stock #:
6938
Description

10" STR, 22.5" SH, 72X36 BED, 20 SPM, 8" ADJ

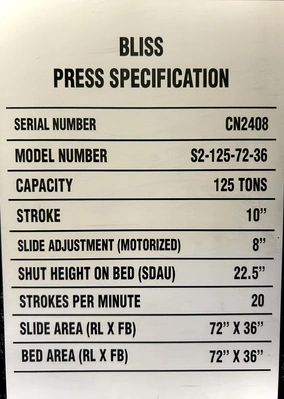

Specifications
Dimensions13' H X 10' RL X 7' FB13' H X 10' RL X 7' FB
Weight36,000 lbs36,000 lbs

capacity: 125 ton
stroke: 10"
max shut height to bed: 22.5" sdau

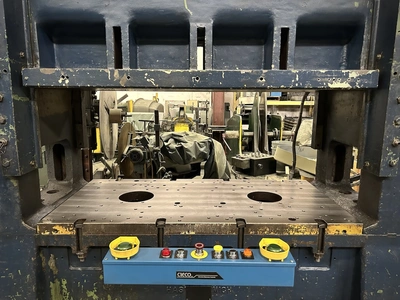

bed area: 72" x 36" (rl x fb)
speed: 20 SPM
slide adjustment: 8" (MOTORIZED)
slide area: 72" rl x 36" fb

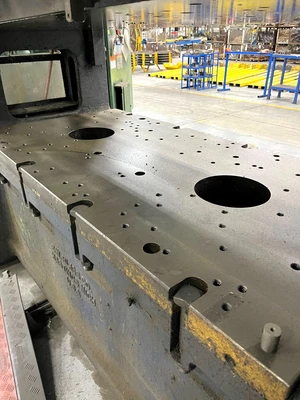

bolster plate: 3" X 72" rl x 36" fb - solid
distance between uprights: 77.5"
distance floor to bed: 32"

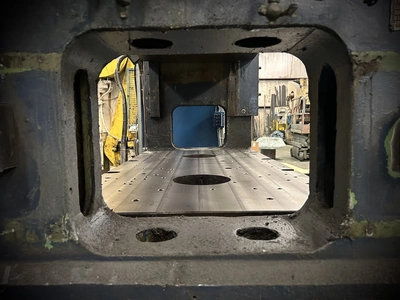

window size: 18.5" wIDE x 15" hIGH
clutch: bliss air clutch / brake combination

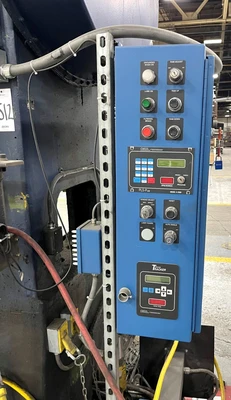

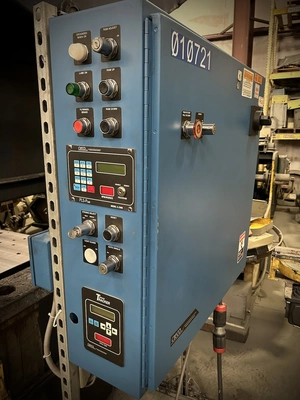

electrics: 15 hp 1150 rpm 240/480v-3-60 motor & existing cieco pls plus press control
Note: __
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

FLOOR STANDING BASE TWIN DRIVE, DOUBLE BACK GEARED W/ GEARS IN OIL AIR COUNTERBALANCED RAM TIE ROD, CAST IRON FRAME CONSTRUCTION GREASE LUBRICATION SYSTEM
