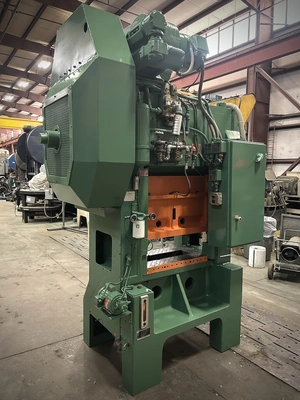

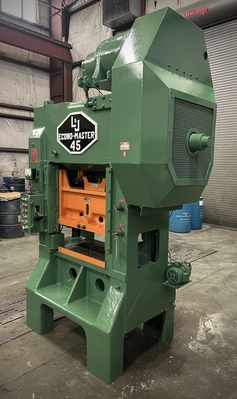

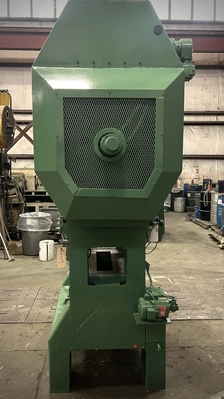

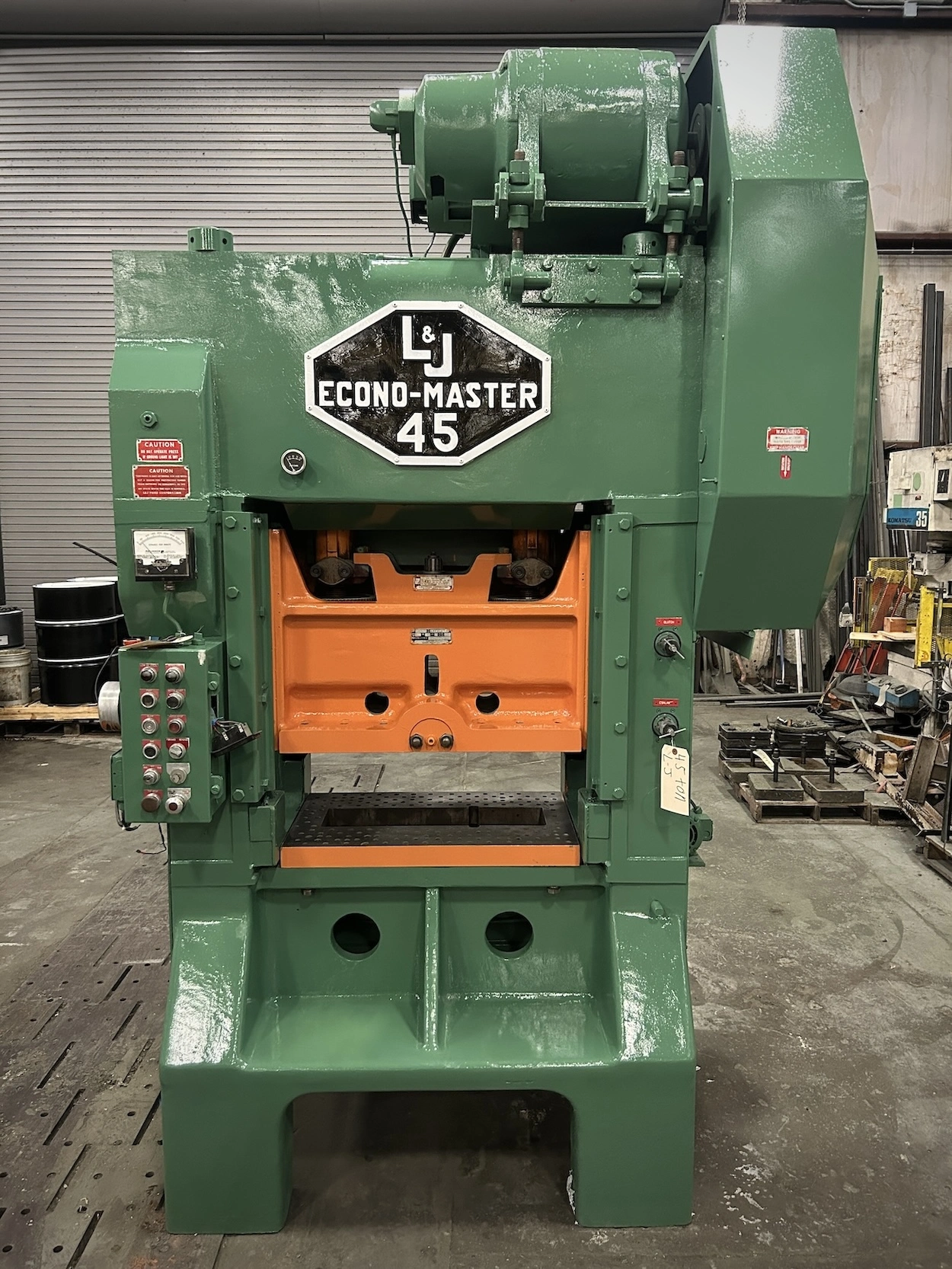

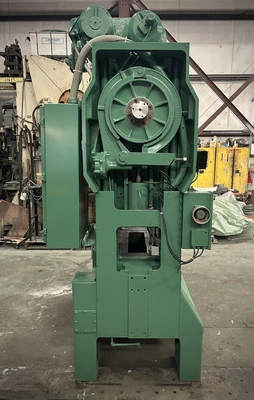

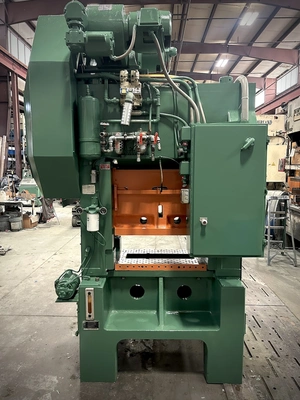

USED 1986 L AND J L AND J EM45 PRESS

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.

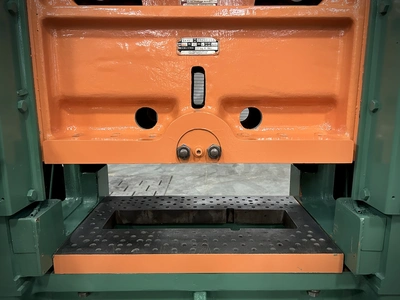

USED 1986 L AND J L AND J EM45 PRESS

USED 1986 L AND J L AND J EM45 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Straight Side Presses
Manufacturer:
L AND J
Model:
L AND J EM45 PRESS
Year:
1986
Stock #:
4449
Description

2" Stroke, 10-3/4" Shut Height, 30"x18" Bed, 125-280 SPM, 1986

Specifications
Dimensions8' W X 4' FB X 9'5" H8' W X 4' FB X 9'5" H
Weight13,000 LBS13,000 LBS

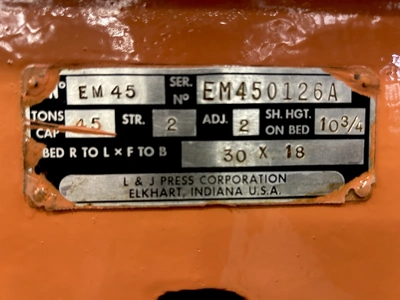

CAPACITY: 45 TON
STROKE: 2"
MAX SHUTHEIGHT TO BED: 10-3/4"
BED AREA: 30" X 18" (rl x FB)
SPEED: 125 - 280 SPM
slide adjustment: 2" MANUAL
slide area: 30" rl X 18" FB
BOLSTER PLATE: 30" rl X 18" FB X 2" H (23" rl X 5" fb hole)
DIST UPRIGHTS/FLOOR TO BED: 30" / 32"
CLUTCH: AIR CLUTCH & BRAKE
ELECTRICS: 7.5 HP 1750 RPM 240/480v-3-60 VS reeves drive & relay press control

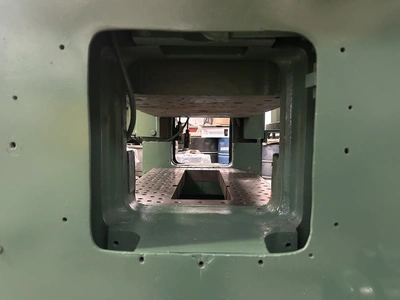

WINDOW SIZE: 12" W X 12" H
Note: __
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

tie rod frame construction, crankshaft is heat treated steel forging w/large diameters at main & crankpin bearings, dual air counterbalances, heavy duty crown, bed & slide, 6 point gibs, recirculating automatic lubrication, floor standing, cast iron frame
