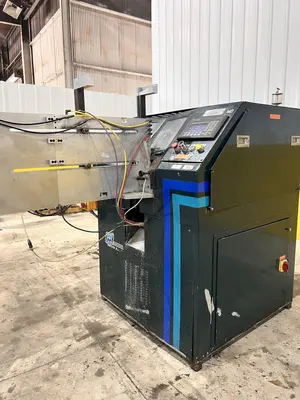

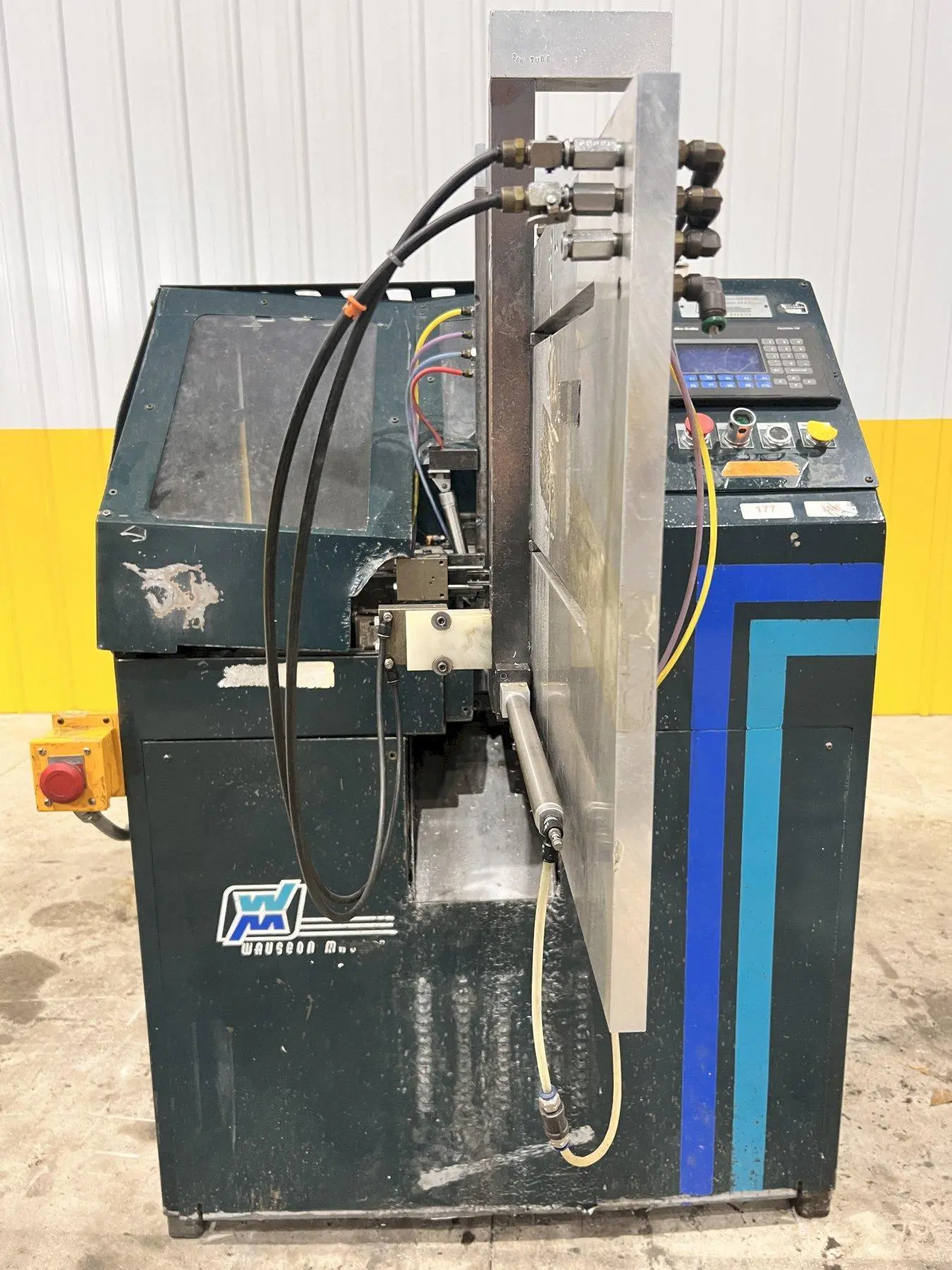

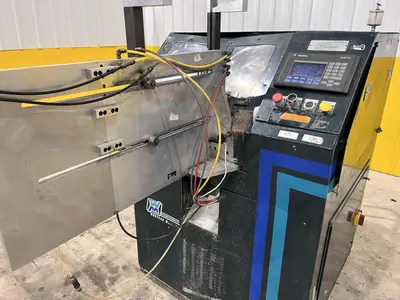

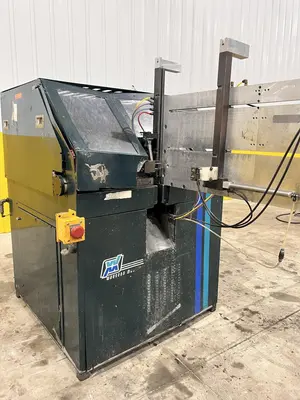

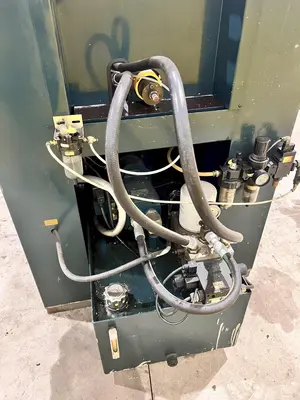

USED WAUSEON 1003

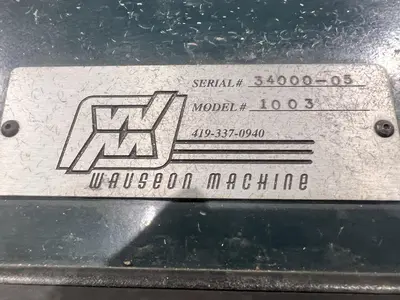

SERIAL ................... 34000-05
MODEL .................... 1003
CAPACITY ................. 1"

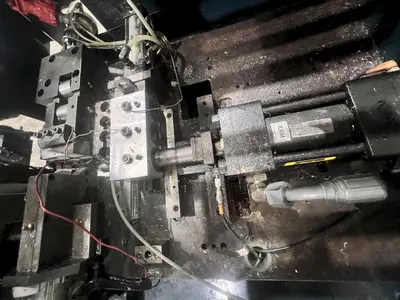

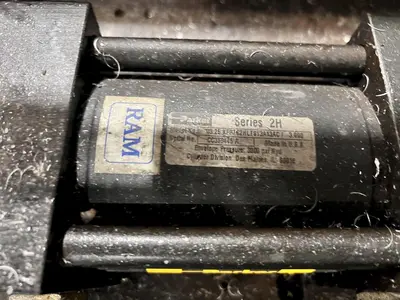

RAM CYLINDER (HYD) ....... 3-1/4" BORE X 3" STROKE
MAXIMUM RAM FORCE ........ 8.2 TONS

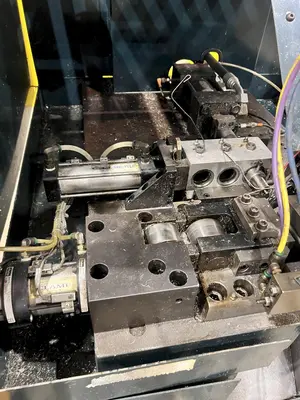

CLAMP CYLINDER (AIR) ..... 14.5 TONS DURING LOCKUP

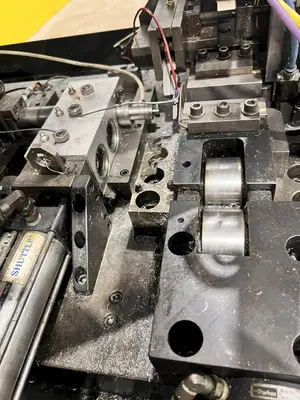

SHUTTLE CYLINDER (AIR) ... 3-1/4" BORE

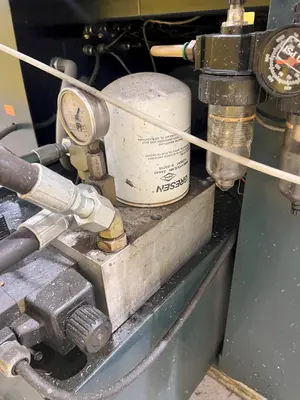

HYDRAULIC POWER UNIT ..... 40 GALLON RESERVOIR
                           15 GPM, PISTON PUMP HYDRAULIC PUMP 2000PSI
                           7.5 HP, 1800 RPM ODP
                           220/440 3 PHASE 60 Hz
RAM WORKING PRESSURE ..... 1200 PSI VARIABLE
RAW MAXIMUM PRESSURE ..... 2000 PSI
MAXIMUM JAW OPENING ...... 1.50"
AIR REQUIREMENTS ......... 80 PSI

Brand
WAUSEON
Type
Tube End Forming Machinery
Stock No.
20114
