USED 2018 AMERA SEIKI VT-2500RM
Overview

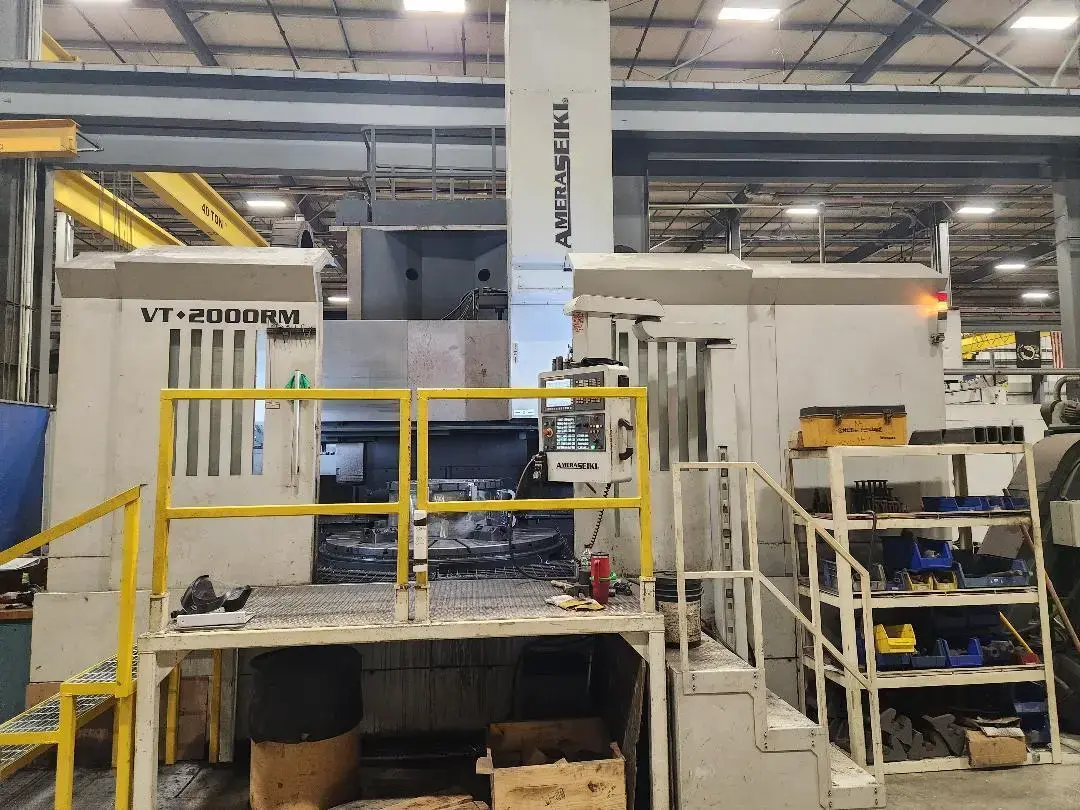

2018 AMERA SEIKI VT-2000RM w/ Live Tooling
The Amera Seiki VT-2000RM is a heavy-duty CNC Vertical Turning Lathe (VTL) featuring a 78.74-inch (2,000 mm) table, 82.7-inch maximum swing, and 63-inch maximum cutting height. Designed with box ways, it boasts a 100 HP spindle, 3-speed gearbox, 12-station ATC, and full C-axis live tooling (3,000 RPM, 50 HP) on a CAT-50 taper.
Founded in 1991 by CEO Rick Welsh, Amera-Seiki is a U.S.-based manufacturer of heavy-duty CNC machine tools, specializing in vertical turning centers, lathes, and machining centers. The company, which moved from the Midwest to Houston, Texas, in 2015, focuses on over-built, high-rigidity machines designed for industries like oil/gas, aerospace, and defense.
Specs
Capacity:
Table Diameter: 78.74" (2,000 mm) (Includes 4-jaw chuck)
Maximum Swing: 82.7" (2,100 mm)
Maximum Turning Diameter: 82.7"
Maximum Cutting Height: 63" (1,600 mm)
Cross rail moving Height mm (in.): 1000mm (6 step)
Maximum Table Load: 44,000 lbs (20,000 kg)
Table Main Motor Hp.\Torque:(80\100HP) 29,480 Ft. Lbs.
Main Spindle:Table Speed: 10 – 450 RPM (3-speed gearbox)
Main Spindle Motor: 100 HP
Live Tooling (C-Axis):
Live Tooling Spindle Speed: 3,000 RPM
Live Spindle Power: 40/50 HP
Live Spindle Torque: 353 Ft-Lbs
Tool Taper: CAT-50Turret/ATC:
Automatic Tool Changer: 12 Stations
Ram Size: 10" x 10" (254mm x 254mm)
Control & Construction:

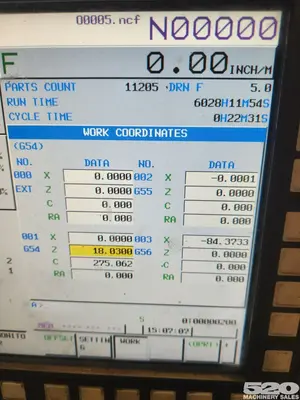

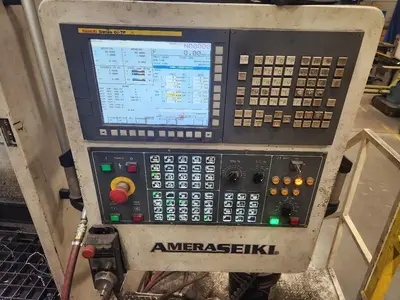

Control: FANUC 0i-TF
Rapid Feed Rate (X) m/min. (in./min.): 12 (472.4)
Rapid Feed Rate (Z) m/min. (in./min.): 12 (472.4)
Z Axis Ram Stroke Inches: 1250 (49.21")
X,Z Axis Motor kw/hp. αiF30: (7kw/10HP)
Horizontal Moving Travel X mm (in.): - 300 ~ 1700 (11.8~66.9)
Vertical Moving Travel Z mm (in.): 800 (31.5")
Cutting Feed Rate mm/rev (in./rev): 0.01 ~ 1000 (.0003 ~ 39.4)
Machine Weight Pounds: 122,041 lbs. Box way construction
Equipped With
•Standard Semi-Hood Enclosure
•Heat Exchanger with Air Conditioner Cabinet
•Drum Type 12 Tools
•I.D. Tool Holder*1, O.D. Tool Holder*1
•Level Screws and level shoes
•Chip conveyor with cart
•Automatic lubrication system
•Work lamps * 2pcs
•Operation & maintenance manual
•Electrical circuit diagram
•Fanuc CNC control manual
