USED 2015 DOOSAN PUMA GT 2600

Collet Chuck| 10" chuck| Tailstock

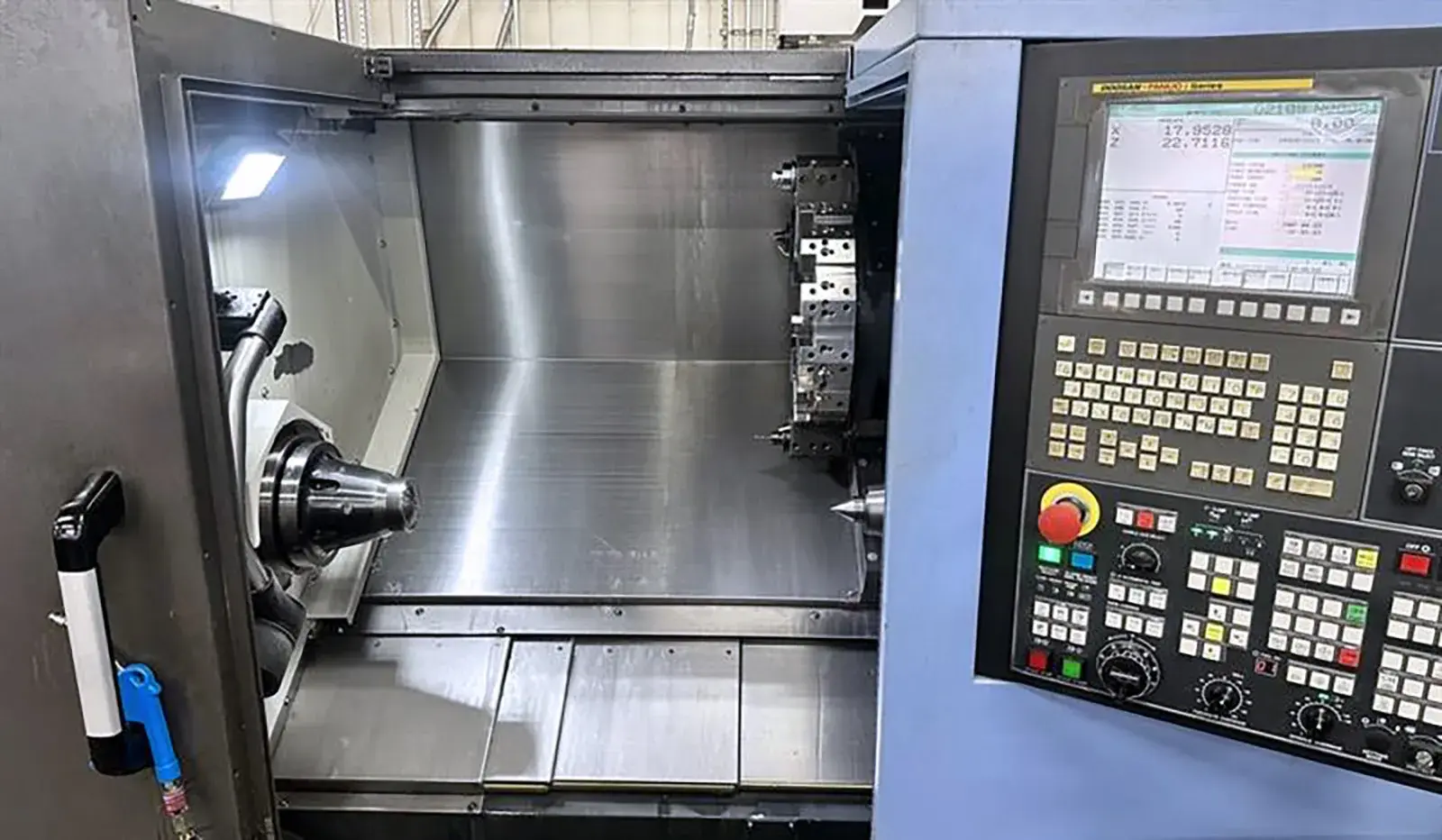

The Doosan Puma GT 2600 CNC Lathe (2015) with Fanuc i-Series control delivers powerful, high-precision turning, drilling, and live tooling for complex parts. Built with rigid box guideways for superior stability, it excels in heavy-duty machining of gears, shafts, and hydraulic components. Ideal for automotive, aerospace, oil & gas, and general industrial applications.

Swing over Bed: 24.8"
Swing Over Carriage: 18.1"
Max Turning Diameter: 18.1"
Max Turning Length: 25.9"
DISTANCE BETWEEN CENTERS: 33.2"
Speed Range: 35 – 3,500 RPM
Spindle Nose: A2-8
Spindle Bore: 3.58"
Bar Capacity: ~3.23"
Chuck Size: 10"
Spindle Motor: 30 HP
Max Torque: ~459 ft-lbs
X-Axis Travel: 10.43"
Z-Axis Travel: 26.8"
Rapid rates X: 945 ipm
Rapid rates Z: 1,181 ipm
Power Requirement: ~39 kVA
Weight: ~10,364 lbs

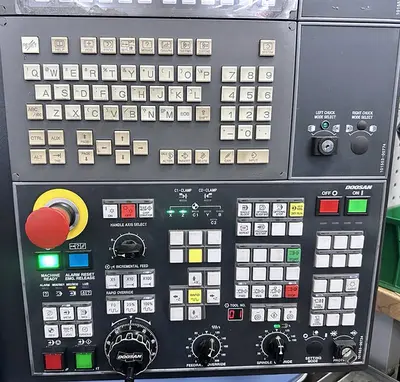

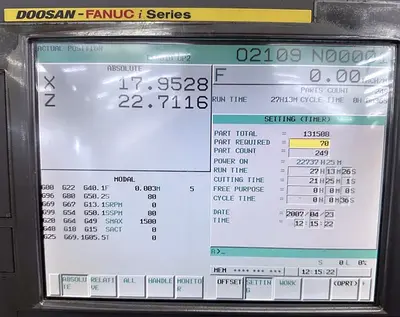

Fanuc i-Series

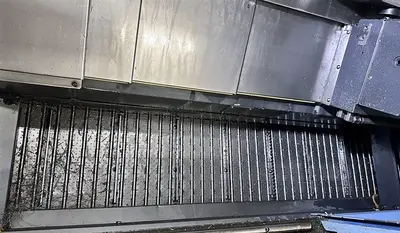

LNS Turbo HB chip conveyor

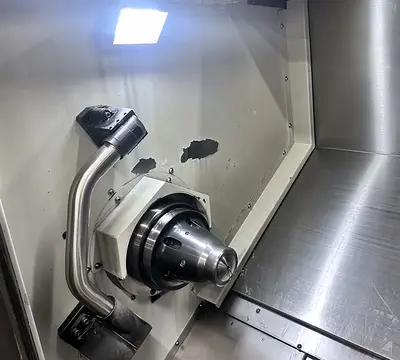

Programmable hydraulic tailstock
10” Samchully 3-jaw chuck
Tool setter
Enclosed guarding
Standard coolant system

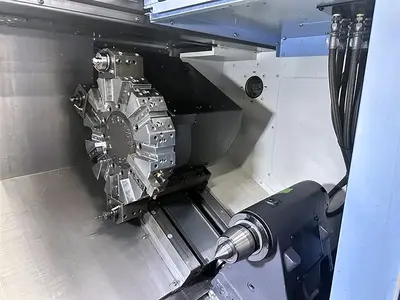

12-station turret
Collet Chuck
