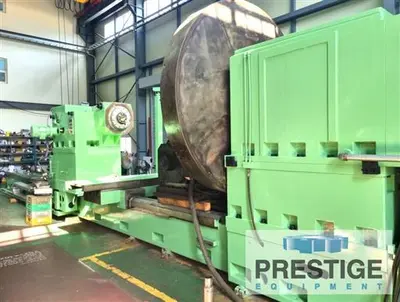

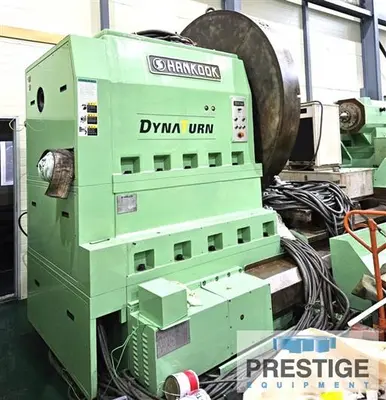

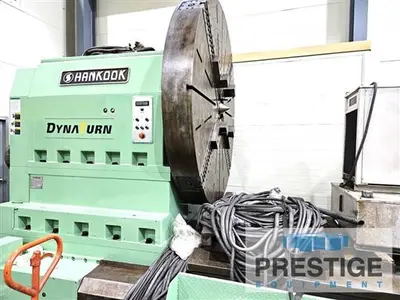

USED 2008 HANKOOK DYNATURN 20

SPECIFICATIONS:
Maximum Swing Over Bedways: 102.4"
Maximum Swing Over Carriage: 86.6"
Max Turn Diameter: 102.4"
Distance Between Centers: 314.96"
Cross Travel, X-Axis: 53.1"
Longitudinal Travel, Z-Axis: 314.96"
Spindle Speeds, 4-Ranges: .5-250 RPM
Spindle Nose: A2-15
Spindle Bore: 4.1"
Spindle Motor: 126 HP
Weight Capacity Between Centers: 55,000 lbs

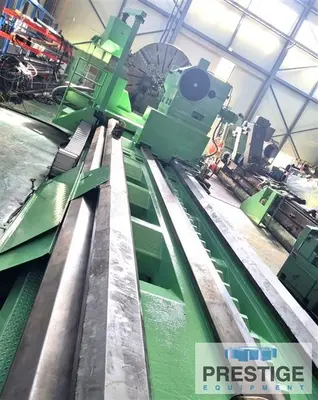

Bed Width: 61.4"

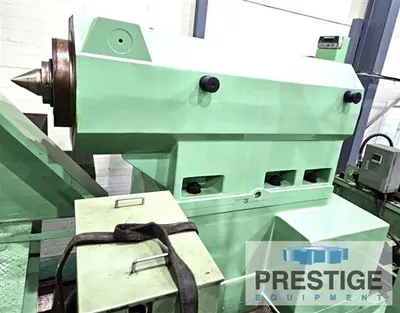

Tailstock Quill Diameter: 15.75"
Tailstock Quill Travel: 11.8"
Machine Footprint: 143" x 482"

Equipped With:

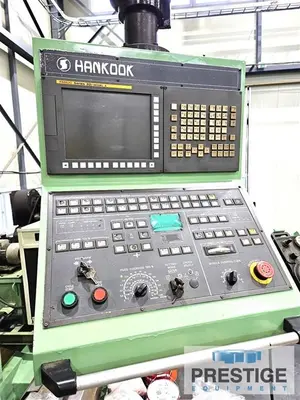

Fanuc 32iA CNC Control

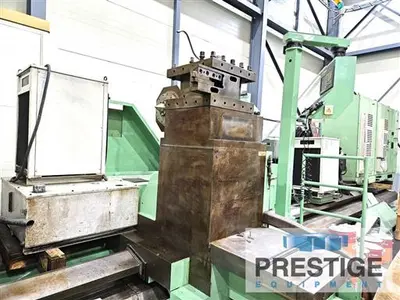

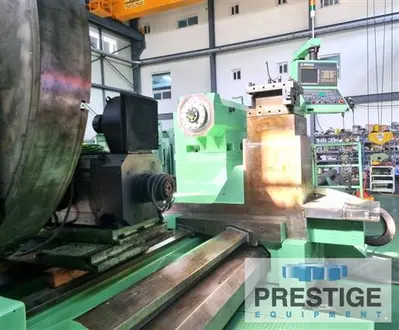

Heavy Duty H4 4-Position Turret

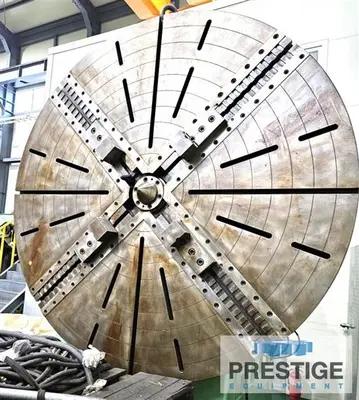

78.74" 4-Jaw Independent Manual Chuck

Features:
Fanuc 32iA CNC Control
Heavy Duty H4 4-Position Turret
78.74" 4-Jaw Independent Manual Chuck
