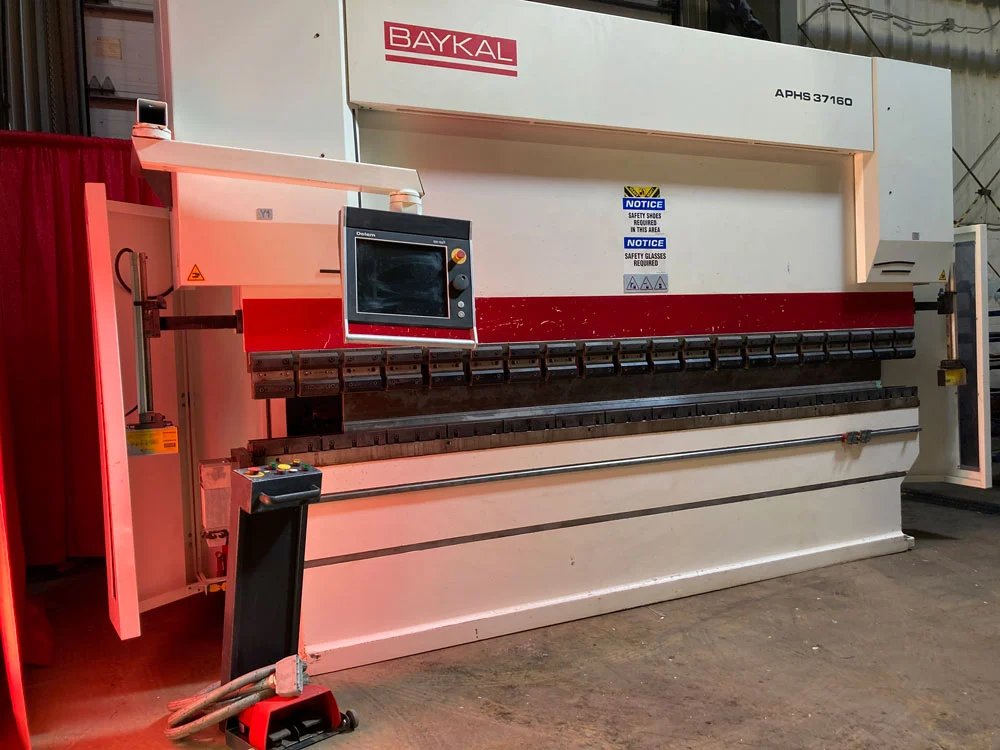

Pre-owned BAYKAL HYDRAULIC PRESS BRAKE 12’ x 176 ton capacity, MODEL APHS 37160

FEATURES:
Specifications:
MODEL: APHS 37160
CAPACITY: 12′ X 176 TON
SERIAL NO.: 21092
OVERALL BENDING LENGTH: 12’
DISTANCE BETWEEN HOUSINGS: 10’ 7”
STROKE OF RAM: 10”
OPEN DAYLIGHT: 20.8”
SPEED: ADVANCE: 402 IPM
SPEED: PRESSING: 23 IPM
SPEED: RETURN: 307 IPM
MAXIMUM TRAVEL OF BACK GAUGE: 29.5” + 9.8” (second finger stop)
TABLE WIDTH: 2.4”
DISTANCE FLOOR TO TOP OF BED: 34.6”
THROAT DEPTH: 16”
YEAR: 2014
MOTOR: 20 HP
WEIGHT: 24,000 LBS (approx)
DIMENSIONS (LxWxH): 192” x 90” x 118”
FOB POINT: Mississauga, ON
CONDITION: Pre-Owned
