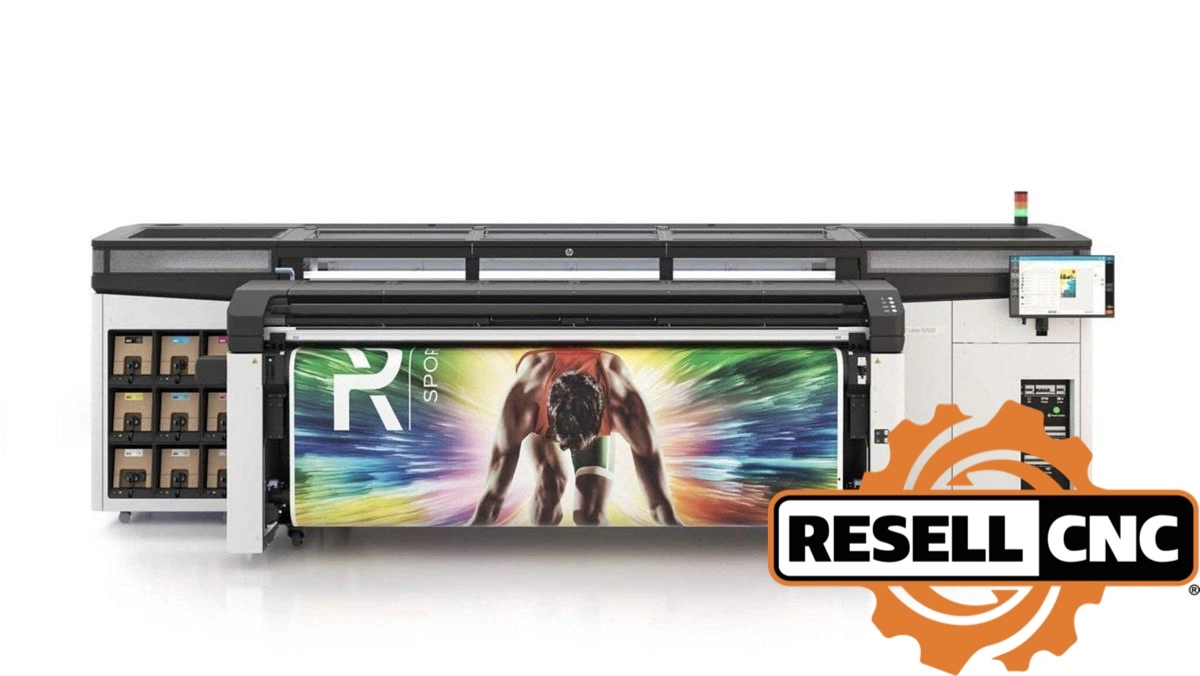

USED 2022 Hewlett Packard Scitex Latex R2000 Plus

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Printing:

- 237 ft²/hr (22 m²/hr) Indoor High Quality (12p 120%)

- 463 ft²/hr (43 m²/hr) Indoor Production (6p 110%)

- 926 ft²/hr (86 m²/hr) Outdoor (3p 70%)

- 388 ft²/hr (36 m²/hr) White Spot (100%)

- 172 ft²/hr (16 m²/hr) White Overflood/Underflood (100%)

- 56 ft²/hr (5.2 m²/hr) 3 layers day & night

Print Resolution: Up to 1200 x 1200 dpi

Ink Cartridges: 9 (cyan, magenta, yellow, black, light cyan, light magenta, HP Latex Optimizer, HP Latex Overcoat, white)

Cartridge Size: 5 L (colors, HP Latex Optimizer , HP Latex Overcoat); 3 L (white)

Printheads: 8 (cyan/black, magenta/yellow, light cyan/light magenta, HP Latex Overcoat, 2 HP Latex Optimizer , 2 white)



Media:

Handling: Flatbed, sheet feed, roll feed, vacuum belt media drive for easy loading and accurate media advance

Media Types: Rigid substrates: paper foamboard, plastic foamboard, PVC foam, plastic corrugated, acrylic, polycarbonate,
polystyrene, compressed cardboard, corrugated board, honeycomb board, aluminum composite panel, wood,
glass, ceramic; Roll substrates: PVC banner , self-adhesive vinyl, coated paper , polypropylene, polystyrene,
polycarbonate, polyester , textile (non porous), canvas, leather

Rigid Media Size: 11.7 x 16.5-in (297 x 420-mm) to 98 x 48 in (2489 x 1220-mm) Up to 98 x 120-in (2489 x 3050-mm) with two
sets of optional extension tables

Roll Size: 24 to 98.4-in (60.9-cm to 2.49-m)

Roll Weight: Up to 220 lb (100 kg)

Roll Diameter: Up to 9.8-in (25-cm)

Thickness: Up to 2-in (50.8-mm)



Applications:

Signage: indoor, flat, backlit, thermoformed

Decoration: wall coverings, window decoration

Vehicle Decoration: fleet graphics, wraps, decals

Textile: soft signage, frontlit, backlit

POS and Packaging: corrugated displays, short-run customized packaging, prototyping



Dimensions:

201 x 80 x 69-in (5.10 x 2.04 x 1.75-m) printer; 201 x 143 x 69-in (5.10 x 3.64 x 1.75-m) including standard input and output tables



Weight:

3527 lb (1600 kg)

B Axis: false
C Axis: false
Control Make Model: HP Scitex ONYX Thrive RIP
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
