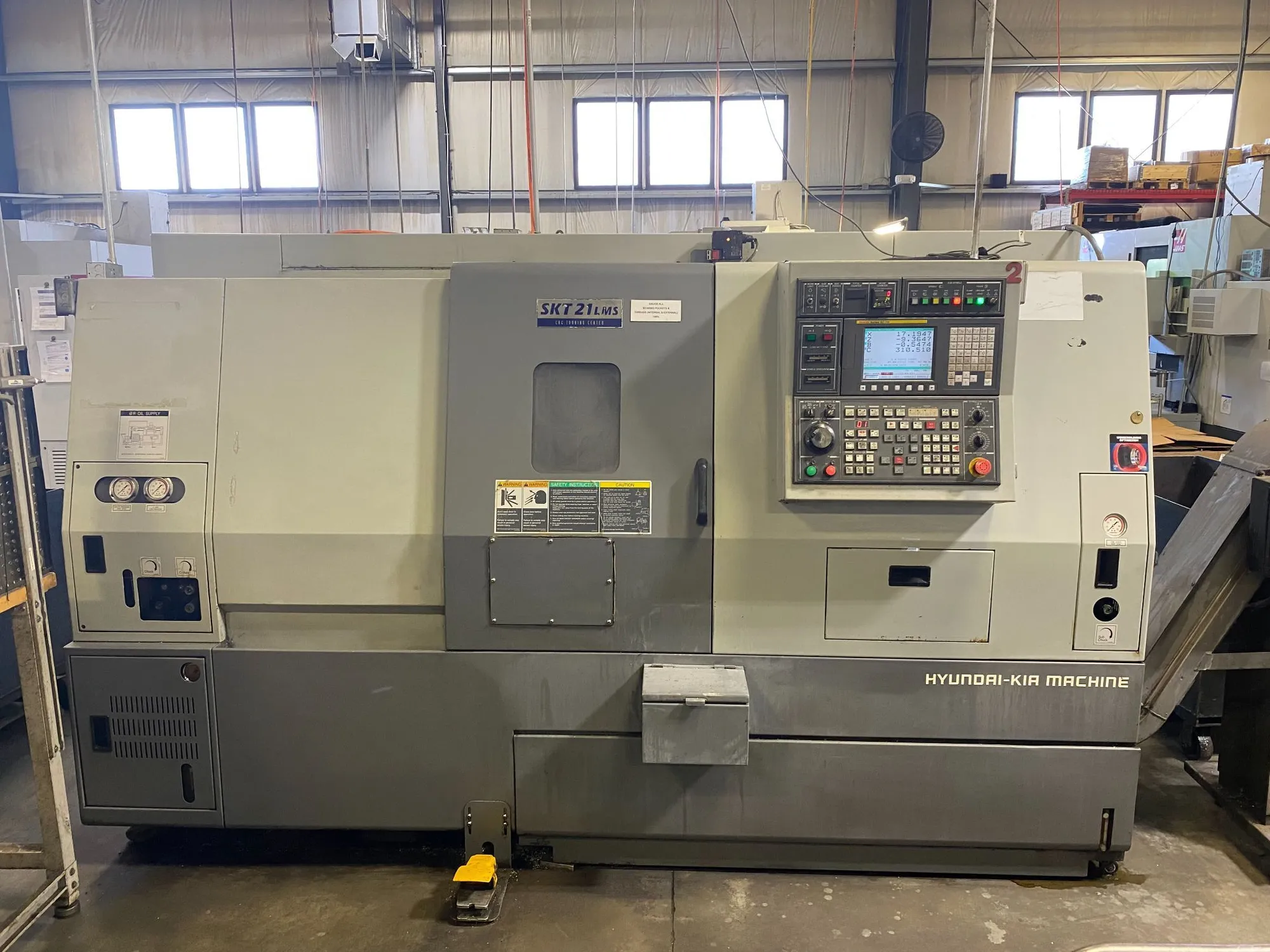

USED HYUNDAI KIA SKT21LMS
Overview
Description
Hyundai Kia SKT-21LMS CNC Turning Center with Sub-Spindle and Live Tooling
Specifications
| Swing | 21.6" | 548.64 mm |
|---|---|---|
| Machining Length | 20.9" | 530.86 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.56" | 65.024 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 10" | 254 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC (Fanuc Oi-TC) | CNC (Fanuc Oi-TC) |
| Dimensions | 120" X 66" X 80" | 120" X 66" X 80" |
| Weight | 10,000 LBS | 10,000 LBS |
CAPACITY: SWING OVER BED / SWING OVER SADDLE...........21.7" / 13.8"
MAXIMUM TURNING DIAMETER / LENGTH......................10.2" / 20.87"
SPINDLE: SPINDLE SPEEDS................................25 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE..................3.1" / 2.56" / A2-6
MAIN MOTOR (30 MIN. / CONTINUOUS)......................20 / 15 HP
SUB-SPINDLE: SPEEDS....................................40 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE / INDEXING.......1.7" / 1.3" / A2-8
MOTOR (30 MIN. / CONT.)................................5 / 3 HP
TURRET: NUMBER OF POSITIONS............................12 STATIONS
X-AXIS TRAVEL..........................................8.3"
Z-LONGITUDINAL.........................................21.7"
ROTARY TOOLS: ROTARY TOOL SPEED........................30 - 4,000 RPM
ROTARY TOOL MOTOR (30 MIN. / CONTINUOUS)...............5 / 3 HP
RAPIDS: RAPID TRAVERSE (X / Z )........................590 / 708 IPM
FEED RATE (X & Z ).....................................0.04 - 157 IPM
DIMENSIONS: FLOOR SPACE (L X W X H)....................120" X 66" X 80"
WEIGHT (APPROX)........................................10,000 LBS
Equipped With
Fanuc Oi-TC CNC Control
8" & 5" Chucks
Live Tooling
Sub-Spindle
Tool Presetter
Chip Conveyor
Parts Catcher
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
