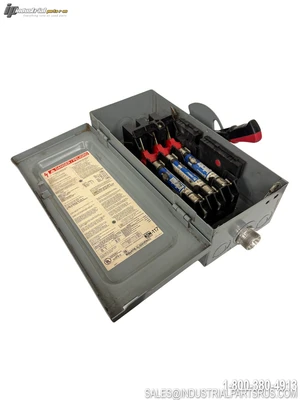

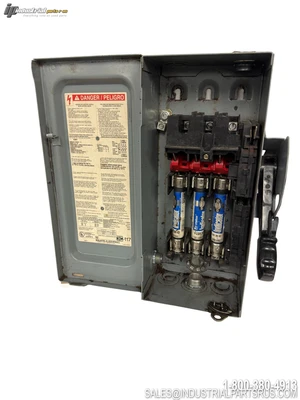

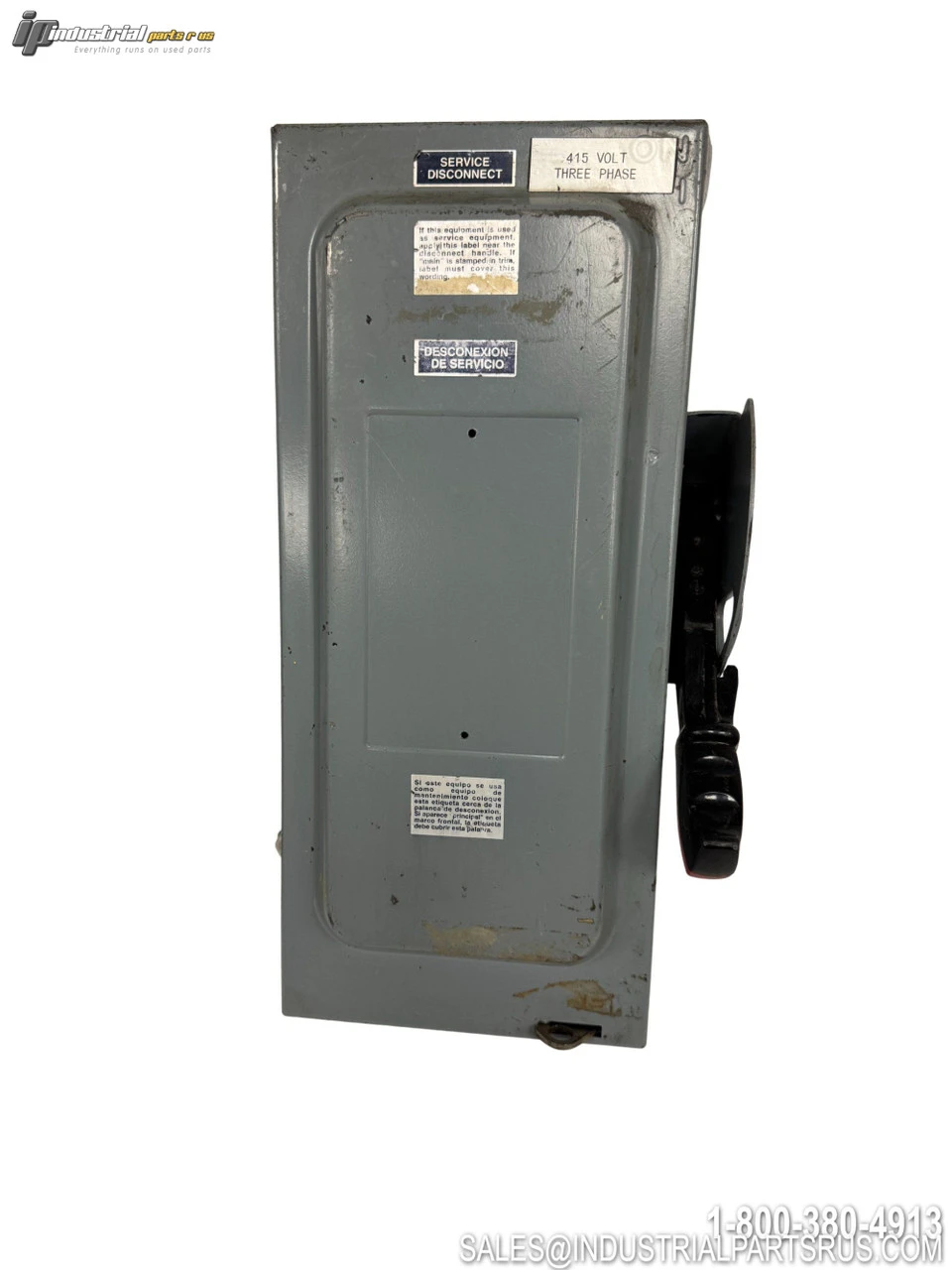

The Square D H361 is a heavy duty fusible safety switch designed for commercial and industrial applications requiring maximum performance and continuity of service. This 3-pole, 30-amp switch features a quick-make, quick-break operating mechanism with dual cover interlock and color-coded indicator handle. The unit provides over-current and short-circuit protection when equipped with appropriate fuses.
Specification
Value
Brand
Square D
Model/Part Number
H361
Type
Fusible Disconnect Switch
Ampere Rating
30A
Voltage Rating
600 VAC/DC
Number of Poles
3
Wire Configuration
3 Wire
NEMA Enclosure Rating
NEMA 1
Short Circuit Rating
10kA (Class H/K), 200kA (Class R/J/L)
Fuse Classes Accepted
H, K, R, J, L
Wire Size Range
14-6 AWG Copper, 12-6 AWG Aluminum
Enclosure Material
Steel
Mounting Type
Surface Mount
Terminal Type
Mechanical Lugs
Dimensions (H x W x D)
14.6" x 7.55" x 4.87"
Weight
8 lbs
Switch Action
Single Throw
Neutral Bar
None
UL Listed
Yes
Series
H3 Series
We warranty all items for 30 days from date of purchase.
| Weight | 4.00 LBS | 4.00 LBS |
SKU: AI1111
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 15.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Square D
Enclosure Type: NEMA 1
Part Number: H361
Shelf: J-20
Model: H361
MPN: H361
Type: Disconnect
