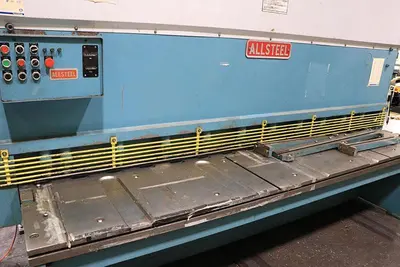

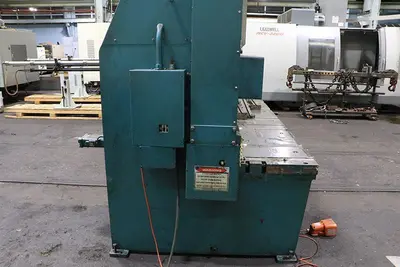

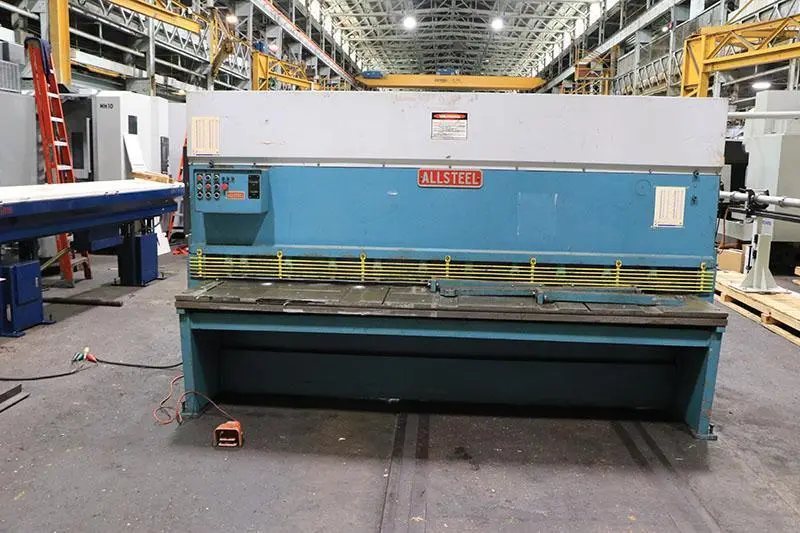

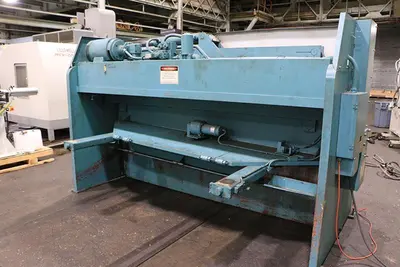

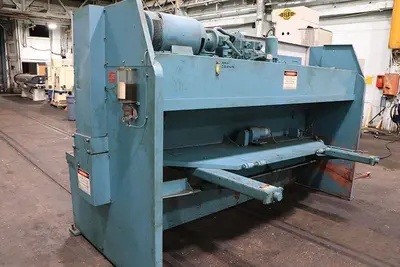

USED 1990 ALLSTEEL 38/-10 MAXI

Equipped With
3/8" x 10' ALLSTEEL MODEL 3/8-10 MAXI HYDRAULIC SHEAR
New 1990
EQUIPPED WITH:
- Front operated motorized back gauge, with in/mm readout.
- Shadow cutting line.
- Rake angle adjustment.
- Cut length adjustment.
- Blade clearance adjustment.
- Individual hydraulic hold down pistons with replaceable polyurethane shoes.
- Hold down force adjusts automatically with thickness being cut.
- Squaring arm with recessed in/mm scale with embedded squaring bar.
- Work support arms 22" long.
- Full electrics with motor, overload protected magnetic motor starter, circuit breaker disconnect with 120v controls.
- Mode selector switch.
- Remote foot switch control.
- Ball transfers in table.
CUTTING LENGTH .................... 10'
CUTTING CAP. ..(MILD STEEL)........ 3/8"
CUTTING CAP. ..(STAINLESSS STEEL).. 1/4"
SPEED ............................. 17 - 60 SPM
NUMBER OF HOLDDOWNS ............... 11
HOLDDOWN FORCE .................... 24 TONS
ELECTRICS ......................... 208 V / 3 / 60
HORSEPOWER ........................ 20 HP
DIMENSIONS ........................ 139" x 96" x

APPROX. WEIGHT .................... 22,000 LBS.
