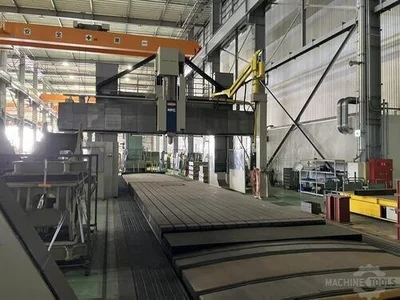

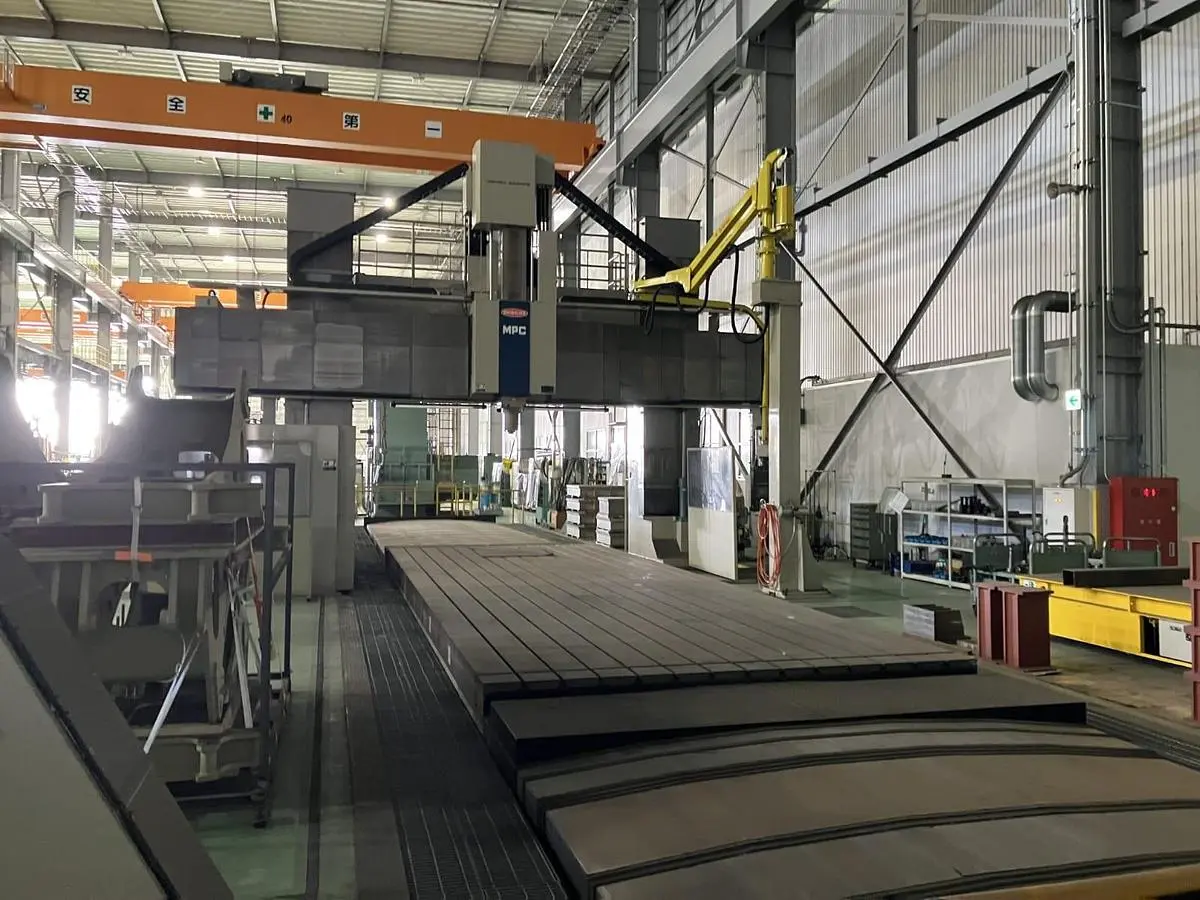

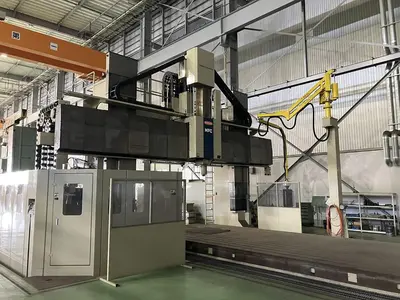

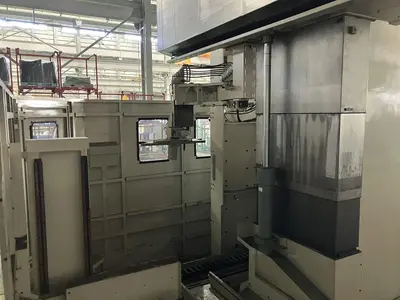

USED 2019 TOSHIBA SHIBAURA MPC 46100B

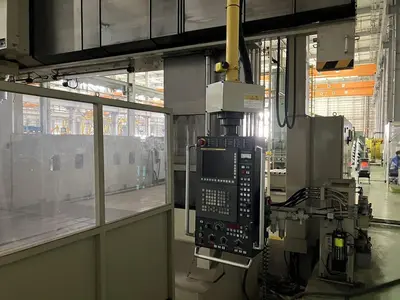

Fanuc 30i Model B CNC ControlTool shank MAS BT 50ATC (automatic tool change device) No.: 120Automatic tool detachable deviceAutomatic Work Change device (AWC)Automatic attachment Change device(AAC);Number of attachment storage units are 5Automatic tool length measuring deviceHydraulic servo balancer device for cross railRam hydraulic balancer deviceOil mist lubrication devicePosition determination precision: plus minus 0.007/1000mmMain Spindle: Main spindle speed: 4~4000rpm The number of Main spindle changing speed range: 2 stages Main spindle taper: 7/24 taper No.50 Maximum rotational force: 2617 Nm Main spindle bearing internal diameter: 120mmTables:Table size: 3500 x10000mm Table maximum load: 40ton Direct table: 2 pieces (load 20ton x 2=40ton) Column width: 4600mm Column height: 3150mmMain Ram:Type: Ram type Guide face: 4 face closed type Size: 380 x 380mmMotors:Main motor AC37KW /30KW(Continuous) X:AC α 200/2500, 16KW Y: AC α 40/3000, 6KW Z: AC α 40/3000, 6KW W: AC α 22/3000, 4KW Hydraulic: AC 22KWLubrication: 25WRapid Speeds: XYZW: 10m/min, 20m/min, 10m/min, 3m/min Cutting Speeds: X:1 ~ 6,000 mm/min Y: 1 ~ 6,000mm /min Z: 10,000 mm/min W: 1 ~ 3,000mm/min

Manufacturer: Toshiba Shibaura
Model: MPC 46100B
Year: 2019
Condition: Used
Stock Number: 5654344
Column width: 4,600 mm
Spindle speeds: 4,000 rpm
Column height: 3,150 mm
X axis travel: 10,500 mm
Y axis travel: 5,400 mm
Z axis travel: 1,100 mm
Table size: 3,500 x 10,000 mm
Table capacity: 40 Ton
Direct table - 2 pieces: Load 20 Ton x 2=40 Ton
W axis travel: 2,300 mm
Spindle drive motor: AC 37/30 kW
Spindle taper: 7/24 No. 50
Machine size: 10,125 x 25,390 x 8,490 mm
Machine weight: 150 Ton
Electricity: AC 200/220 V - 50/60 Hz
