USED 2007 UNISIGN UNIPORT 6000
Overview
Siemens SINUMERIK 840D CNC Control

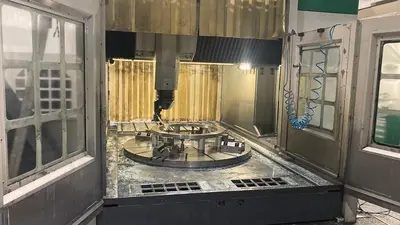

Gantry Milling Machine with Carousel Rotary Table
Head change station
30 Position Tool changer

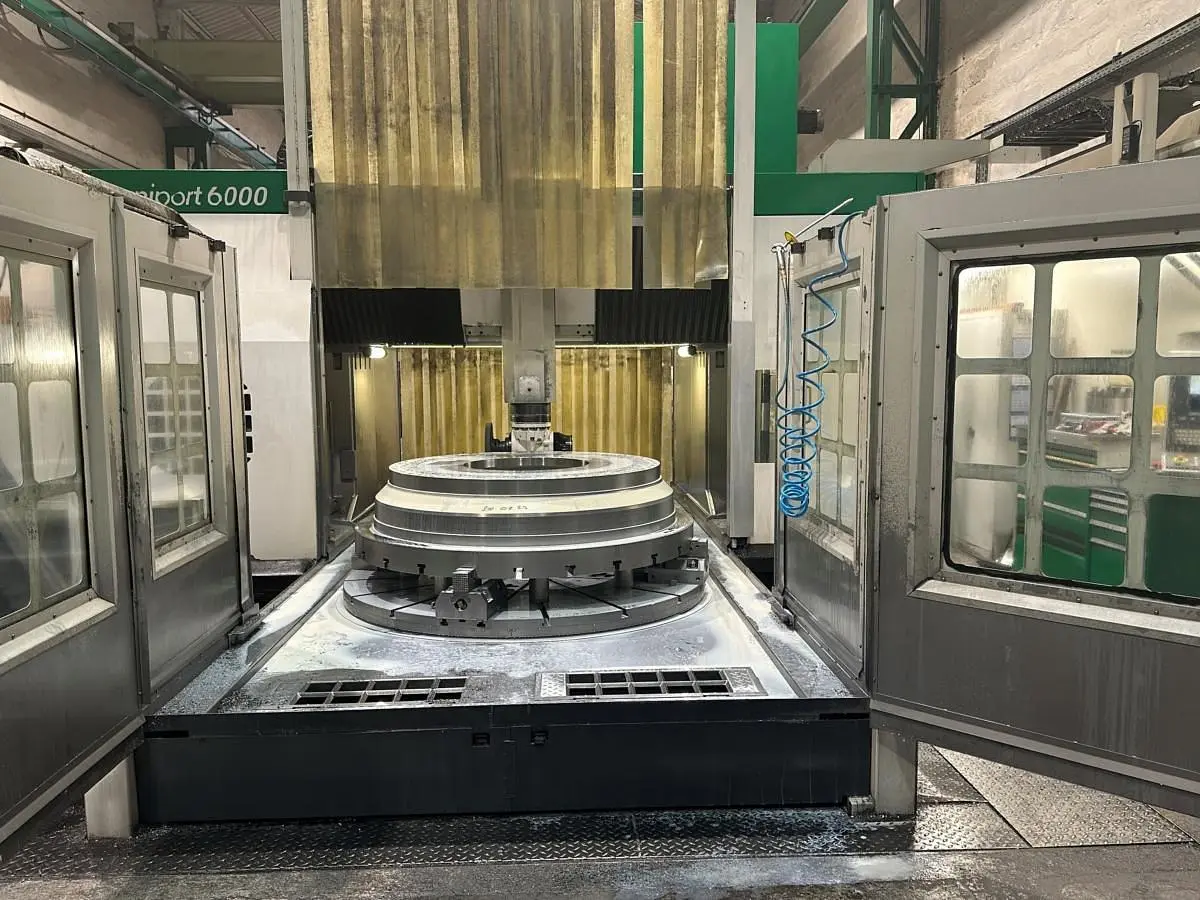

2,000 mm diameter rotary table for turning operations
Specs
Manufacturer: Unisign
Model: Uniport 6000
Year: 2007
Condition: Used
Stock Number: 5654346
Distance between columns: 2,500 mm
Rotary table diameter: 2,000 mm
Turning diameter: 2,500 mm
Rotary table capacity: 10 Ton
Torque: 33,000 Nm
Rotary table turn speed: 250 rpm
Live spindle speed: 6,000 rpm
X axis travel: 3,000 mm
Y axis travel: 2,500 mm
Z axis travel: 1,000 mm
Live spindle motor: 36 kW
Spindle taper: HSK 100
Feed: 5 - 30,000 mm/min
Table area: 2,000 x 2,170 mm
Table load: 1,500 kg/m²
Machine dimensions: 8 x 6.4 x 4.4 m
Machine weight: 45 Ton
