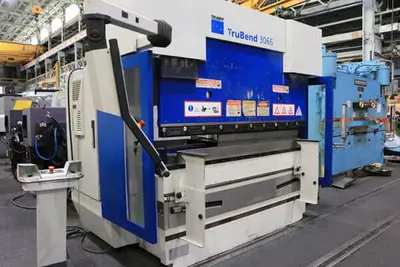

TRUMPF TRUBEND 3066 73 TON X 80″ HYDRAULIC PRESS BRAKE

TRUMPF TRUBEND 3066 73 TON X 80″ HYDRAULIC PRESS BRAKE – 2006
TONNAGE ……………………. 73

BED LENGTH .. ………………. 80″

DISTANCE BETWEEN HOUSINGS ……. 69″

LENGTH BETWEEN THE HOUSINGS ….. 93″

STROKE …………………….. 7.87″

OPEN HEIGHT ………………… 14″

CLOSED HEIGHT ………………. 5.9″

Y-AXIS RAPID DOWNWARD MOVEMENT .. 200 MM / SEC.

Y-AXIS OPERATIONAL SPEED MAX …. 15 MM /SEC.

PRESS SPEEDS: RAPID ADVANCE ….. 472 IPM

BENDING ……….. 35 IPM

RETURN ………… 472 IPM

MAIN MOTOR HP ………………. 10

MAX OPERATING PRESSURE ……… 4,466 PSI

MOTOR SPECS ………………… 3 PH / 460 V
APPROX. WEIGHT: 12,500 LBS.

APRROX DIMENSIONS: 102″ X 69″ X 92″ H

– PALM BUTTONS MOUNTED ON PEDISTAL STATION WITH FOOT PEDAL

– DELEM DA-65TW GRAPHIC CONTROL

– TRUMPF CNC MULTI-AXIS BACK GAUGE (X, Y, R, Z1, Z2)

– MISC. TOOLING
