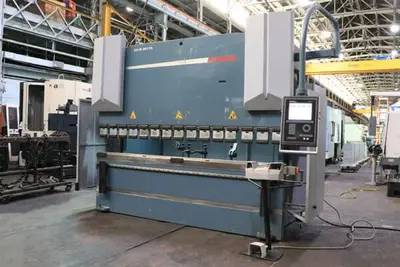

DURMA AD-R 30175 10′ x 192.5 TON CNC HYDRAULIC PRESS BRAKE

DURMA AD-R 30175 10′ x 192.5 TON CNC HYDRAULIC PRESS BRAKE – 2014
Capacity …………………… 192.5 Ton

Overall Length of Bed & Ram ….. 10′

Distance Between Housings ……. 8’6″

Stroke (Adjustable) …………. 10.4″

Open Height ………………… 21″

Throat Depth ……………….. 16″

Speeds …………………….. 283 IPM – Approach

24 IPM – Press

236 IPM – Return

Motor ……………………… 25 HP

Voltage ..(currently 460)…….. 230 / 460 / 3 Ph

– Delem DA-56s 3-Axis CNC Back Gauge (X, Y1, Y2)

– Manual R Axis

– Manual Crowning

– 4 Adjustable Fingers on Back Gauge

– Lower Die Rail

– Full Complement of Sectional Ram Clamps

– Dual Palm Button or Electric Foot Switch Operation

– All Manuals
Weight: 25,353 Lbs.

Dimensions: 14′ L-R x 8’4″ F-B x 9′ H
