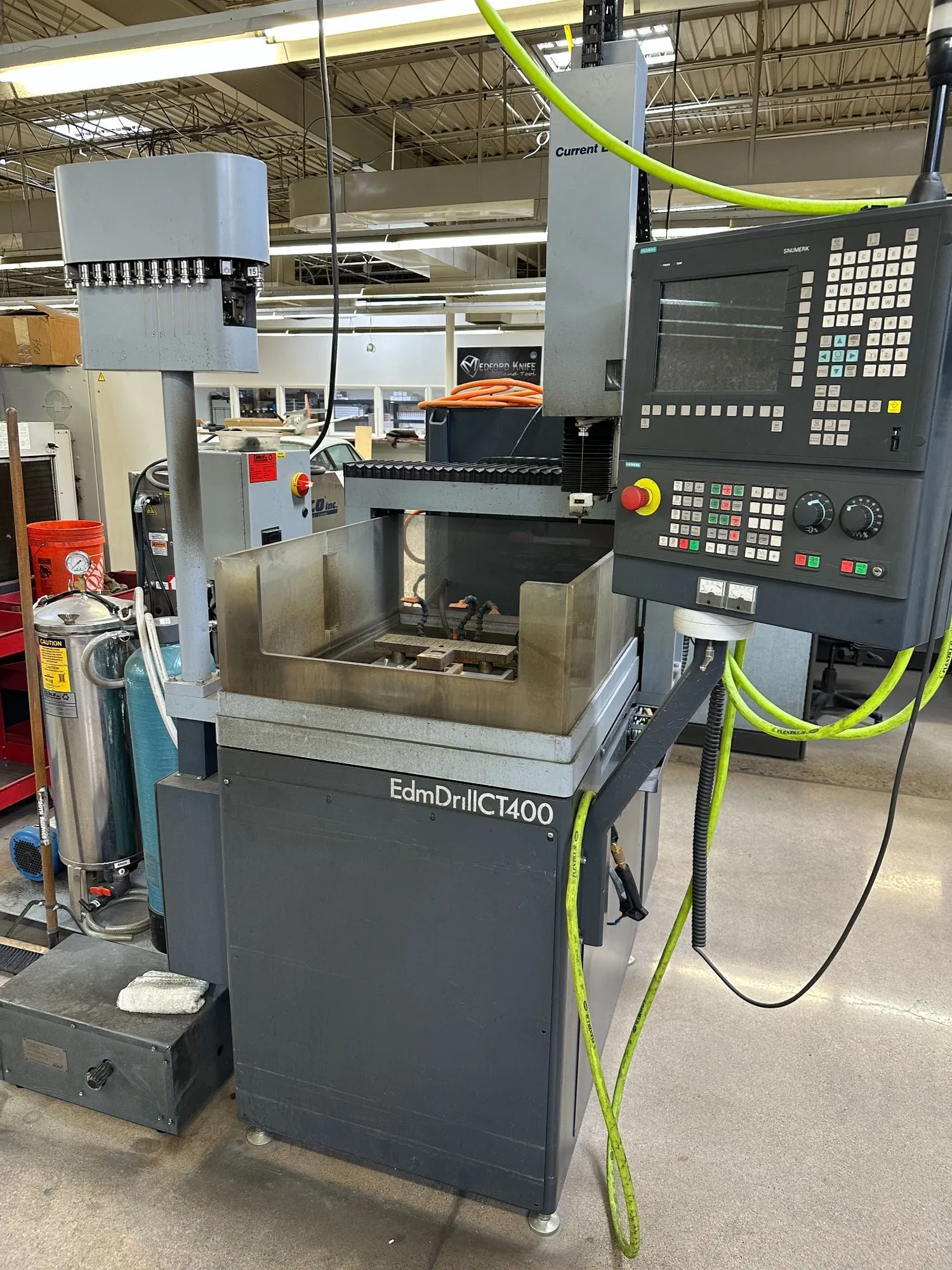

The Current EDM EdmDrill™ CT400 is a high-precision, mid-size CNC EDM drilling machine designed for versatile, high-capacity, and automated drilling in aerospace, medical, and tool & die industries. Available in 3-5 axis configurations, it features a moving bridge, a 1,000 lbs table capacity.
| Hole-Dia. (Min) | 0.004" | 0.1016 mm |
| Hole-Dia. (Max) | 0.256" | 6.5024 mm |
| X-Axis Travel | 18" | 457.2 mm |
| Y-Axis Travel | 12" | 304.8 mm |
| Z-Axis Travel | 16" | 406.4 mm |
| Control | CNC (Siemens Sinumerik) | CNC (Siemens Sinumerik) |
| Dimensions | 59 in. W x 64 in. L | 59 in. W x 64 in. L |
| Weight | 2000 | 2000 |
X-Axis Travel
18.0 in. (457 mm)
Y-Axis Travel
12.0 in. (304 mm)
Z-Axis Travel
16.0 in. (406 mm)
W-Axis Travel
10.5 in. (266 mm)
Electrode Diameter Range
0.004 in. – 0.256 in. (0.1 mm – 6.5 mm)
Table Weight Capacity
1000 lbs. (454 kg) maximum
Machine Weight
1500 lbs. (681 kg)
Machine Footprint
47 in. W x 64 in. L (1194 mm W x 1625 mm L)
Machine Footprint with AEC
59 in. W x 64 in. L (1498 mm W x 1625 mm L)
24 Tool Changer
