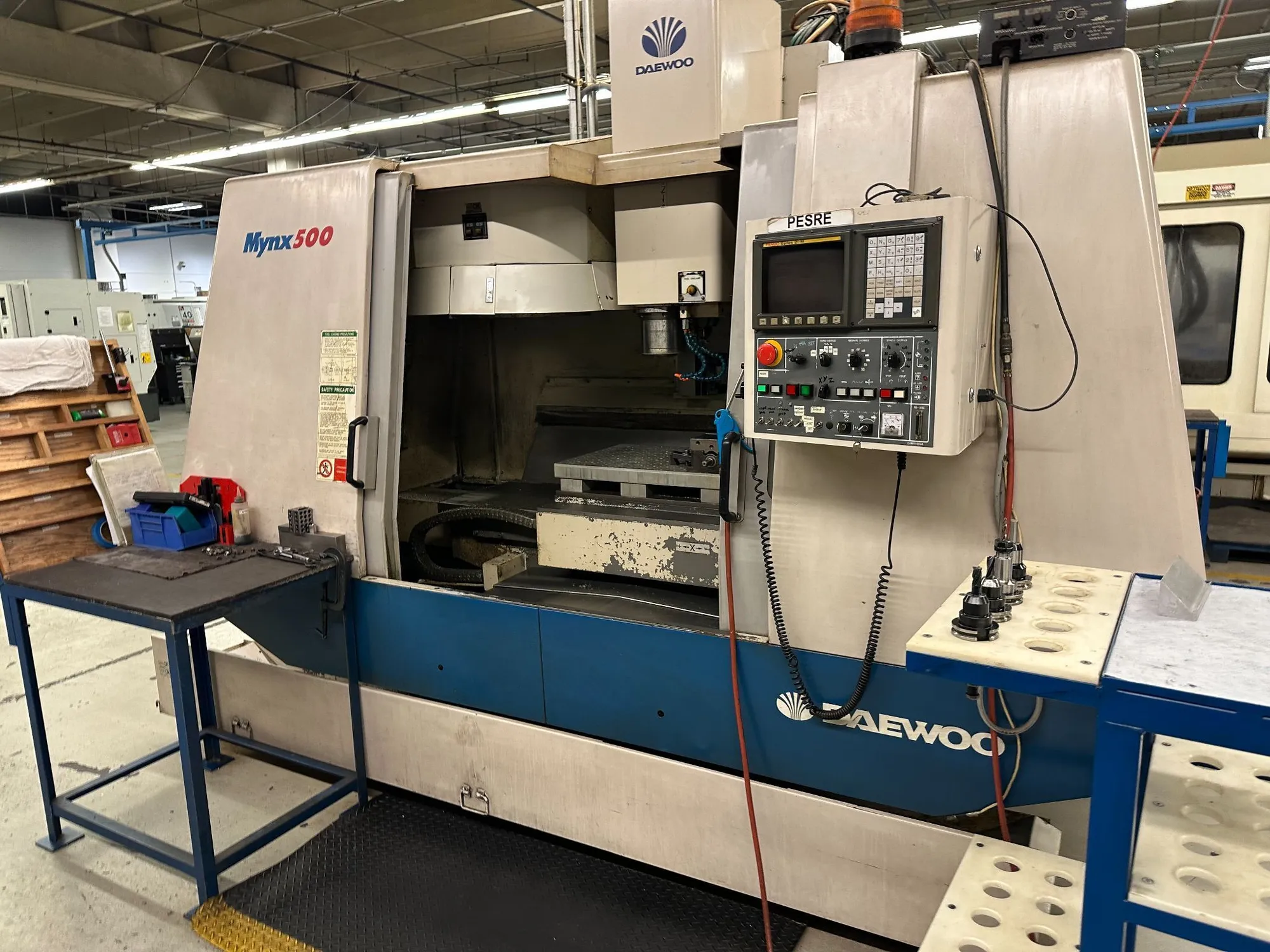

The 2000 Daewoo Mynx 500 is a robust, box-way 3-axis vertical machining center (VMC) designed for heavy-duty milling. It features a 40-taper, 8,000 RPM spindle with 20 HP, typically controlled by a Fanuc 21M. Key specs include 40.2" x 20.1" x 22.6" travels, a 24-station automatic tool changer, and a ~1760 lb table
| X-Axis | 40.2" | 1,021.1 mm |
| Y-Axis | 20.1" | 510.54 mm |
| Z-Axis | 22.6" | 574.04 mm |
| # Axis | 3 | 3 |
| Power | 20 hp | 14.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| Taper | Cat 40 | Cat 40 |
| # ATC | 20 | 20 |
| Table-W | 39" | 990.6 mm |
| Table-L | 17" | 431.8 mm |
| Pallets? | No | No |
| 4th Axis | No | No |
| Control | CNC (Fanuc 21-M) | CNC (Fanuc 21-M) |
