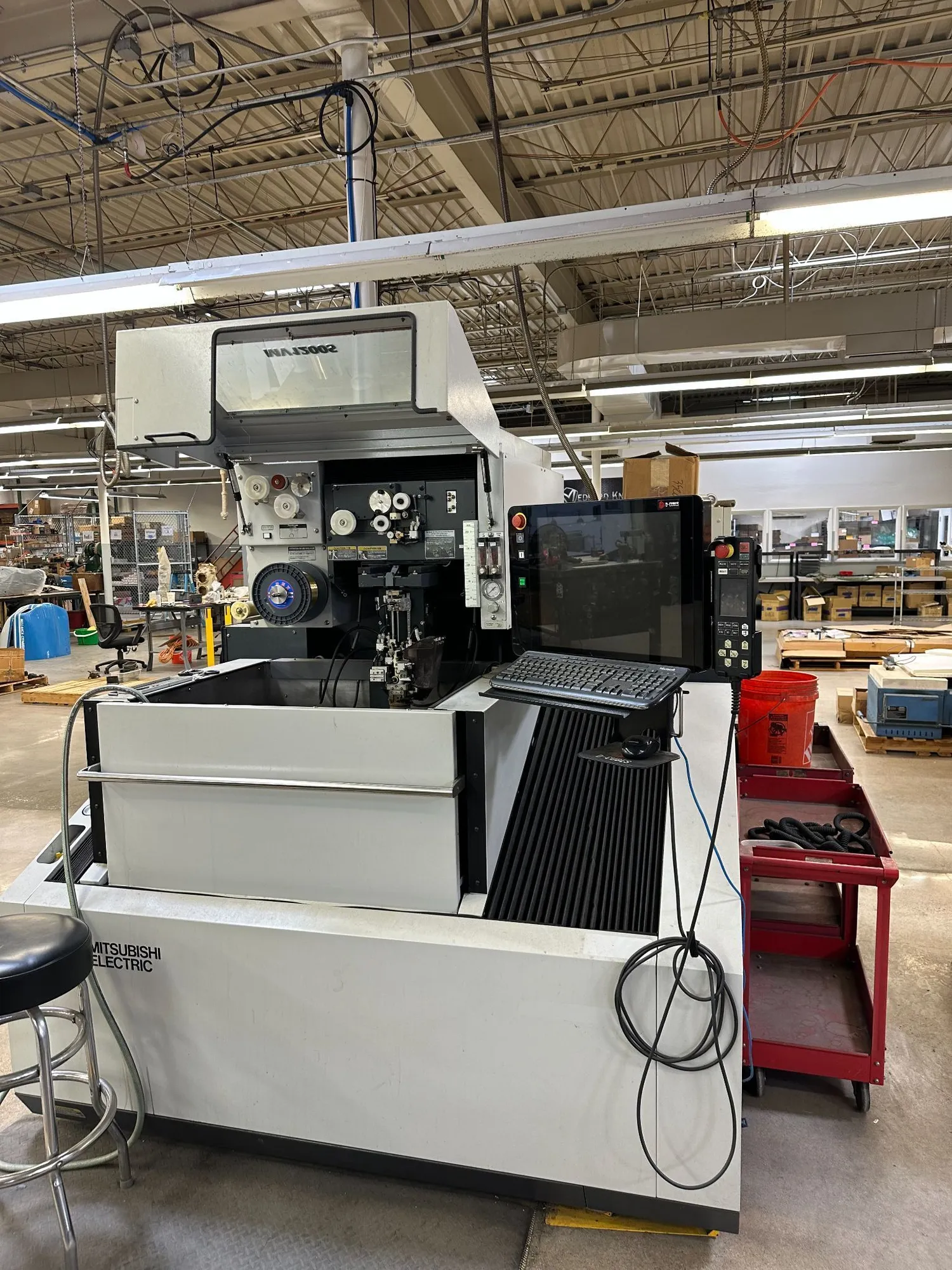

The MV1200-S Advance Type M800 features improvements to machine construction, auto-threading, internal machine communication, and power supply technology.
| X-Axis Travel | 15.7" | 398.78 mm |
| Y-Axis Travel | 11.8" | 299.72 mm |
| Z-Axis Travel | 8.7" | 220.98 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | Yes | Yes |
| Control | CNC (D-Cubes) | CNC (D-Cubes) |
| Dimensions | 81” x 108” x 80” | 81” x 108” x 80” |
| Weight | 6,000 | 6,000 |
Maximum Workpiece Dimensions 31.9” x 27.6” x 8.5”
Maximum Workpiece Weight 1,102 lbs.
Table Dimensions 25.3” x 21.3” (3 Sided, Hardened)
Machine Range 15.7” x 11.8” x 8.7”
U/V Travel +/- 2.36”
Wire Diameter .004” - .012” (.010” Guides)
Max. Workpiece AWF Height 8.0”
Machine Dimensions 81” x 108” x 80”
Machine Weight 5,952 lbs.
Input Power (Total) 13.5 KVA – 200 -220V, 3 Phase
INCLUDES: Linear Motor Drive System (No Ball Screws), AT Automatic Wire Threader, Submerged Cutting,
Di Electric Chiller, D-Cubes Control w/ 15” Color Touch Screen, Wire Alignment Device, Automatic Way Lubrication.
