Used

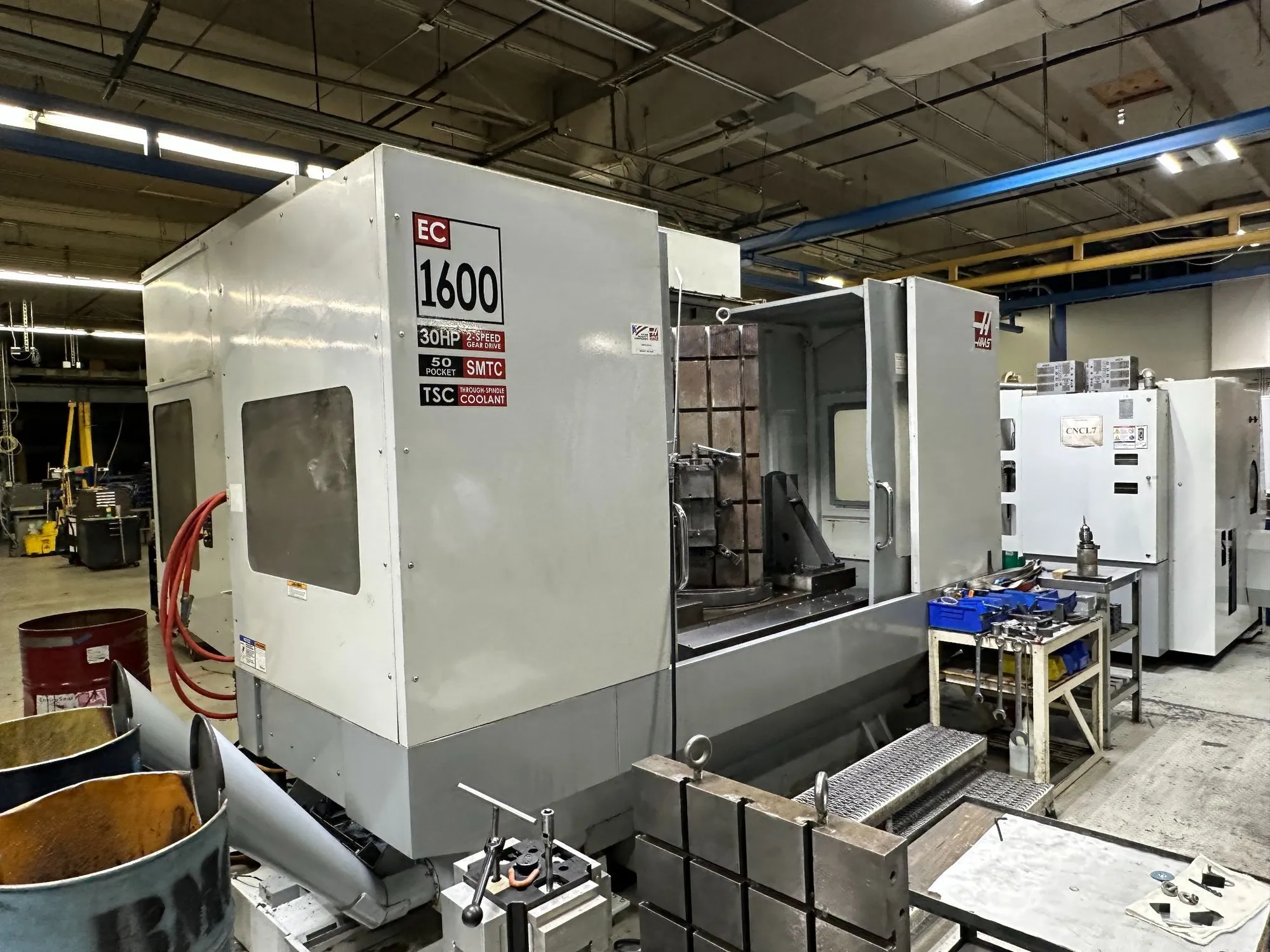

USED 2006 HAAS EC-1600-4AX

Arizona, United States
324Listings|203Followers
Overview
Horizontal Machining Centers

The Haas EC-1600 is a high-rigidity, 50-taper CNC horizontal machining center (HMC) designed for large-part manufacturing with a 64" x 50" x 32" work envelope. It features a 30 HP spindle, 7,500-RPM speed, and a 10,000 lb table capacity, integrated with a 4th-axis rotary table for 4-sided machining.

Specs
X-Axis
64"
1,625.6 mm
Y-Axis
50"
1,270 mm
Z-Axis
32"
812.8 mm
# Axis
4
4
Power
30 hp
22.4 kW
RPM
7,500 RPM
7,500 RPM
Taper
CAT 50
CAT 50
# ATC
50
50
Pallet-W
36"
914.4 mm
Pallet-L
64"
1,625.6 mm
# of Pallets?
2
2
Pallet Indexing
Yes
Yes
FMS System?
No
No
Control
CNC (HAAS)
CNC (HAAS)
Dimensions
194" x 147" x 133"
194" x 147" x 133"
Weight
35000
35000
