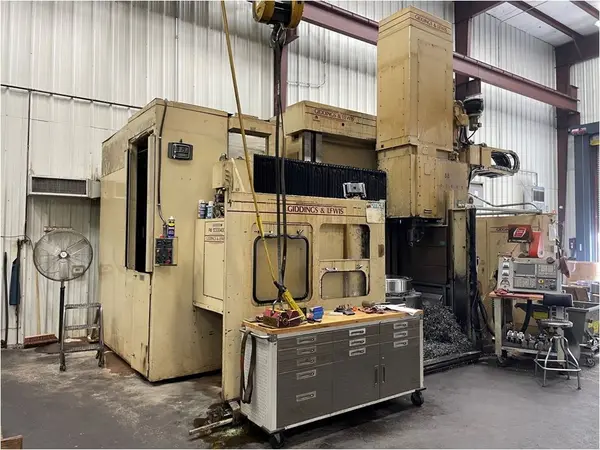

NEW GIDDINGS & LEWIS 48VTC
Overview
Description
GIDDINGS & LEWIS Model 48VTC
Giddings & Lewis vertical turning centers are well known for their unrivaled stiffness, distinct functionality and impressive capacity. With cast iron machining platforms, hydrostatic rams and high capacity table bearing systems, they set the standard for heavy precision cutting.
Whether you’re interested in standard turning, hard turning, grinding, live spindle machining, four-axis operations or cutting on multiple sides of the part, we can configure a vertical turning center solution for you.
The Giddings & Lewis 48" VTC (Vertical Turning Center) is a high-precision CNC Vertical Boring Mill, often equipped with a Fanuc 18iT control, a 36-inch or 48-inch chuck, and a 12-station automatic tool changer. Key specs include a 60-inch maximum swing and 48-inch to 67.5-inch maximum height under the rail.
Specifications
| Table Dia | 48" | 1,219.2 mm |
|---|---|---|
| Swing | 60" | 1,524 mm |
| Work Ht-U/R | 65" | 1,651 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 400 RPM | 400 RPM |
| Dimensions | 17" x 15" | 17" x 15" |
| Weight | 27,215 lbs | 27,215 lbs |
Specifications:
Common Specifications (G&L 48" VTC):
Table Size (Chuck): 48-inch (often with 4-jaw manual or hydraulic chuck).
Maximum Swing: 60-inch.
Maximum Height Under Rail: ~48-inch to 67.5-inch (varies by model year).
Vertical Ram Stroke (Z-Axis): ~42-inch to 50-inch.
Tool Changer: 12-Station Automatic Tool Changer.Control: Typically G&L 800 Series or Fanuc CNC
Spindle Speeds: Often infinitely variable with 2 ranges.
Table Dia 48"
Swing 60"
Work Ht-U/R 65"
Power 50 hp
RPM 400 RPM
Equipped With
Key Features:Infinitely Adjustable Cross Rail: Allows for handling a wide range of part sizes.
Robust Structure: Designed for heavy-duty cutting with hydrostatic rams on many models.
