| Swing | 14" | 355.6 mm |
| Gap Swing | 20" | 508 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5625" | 39.688 mm |
| RPM | 2,000 RPM | 2,000 RPM |
| Power | 5 hp | 3.7 kW |
| Taper | #4MT | #4MT |
| Dimensions | 85"L x 40"W x 48"H | 85"L x 40"W x 48"H |
| Weight | 3,350 LBS | 3,350 LBS |

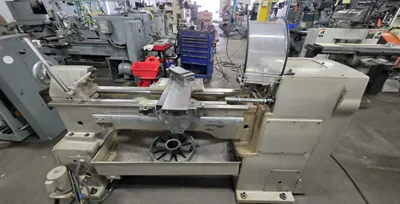

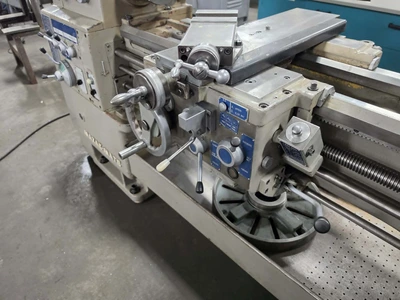

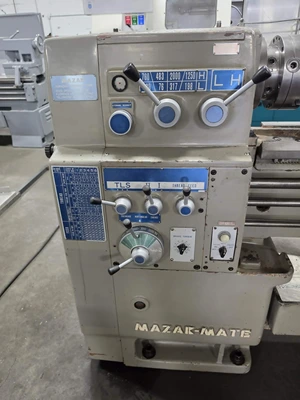

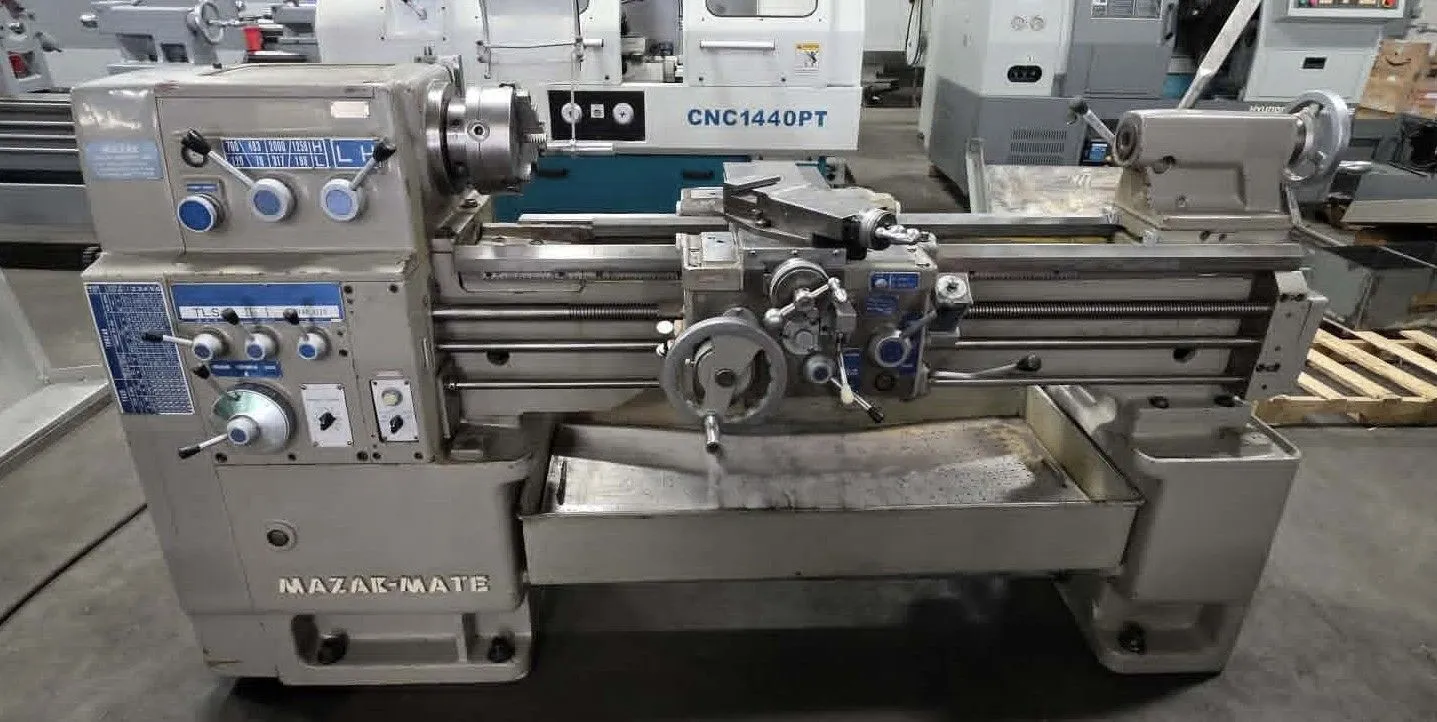

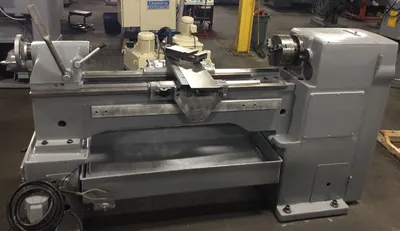

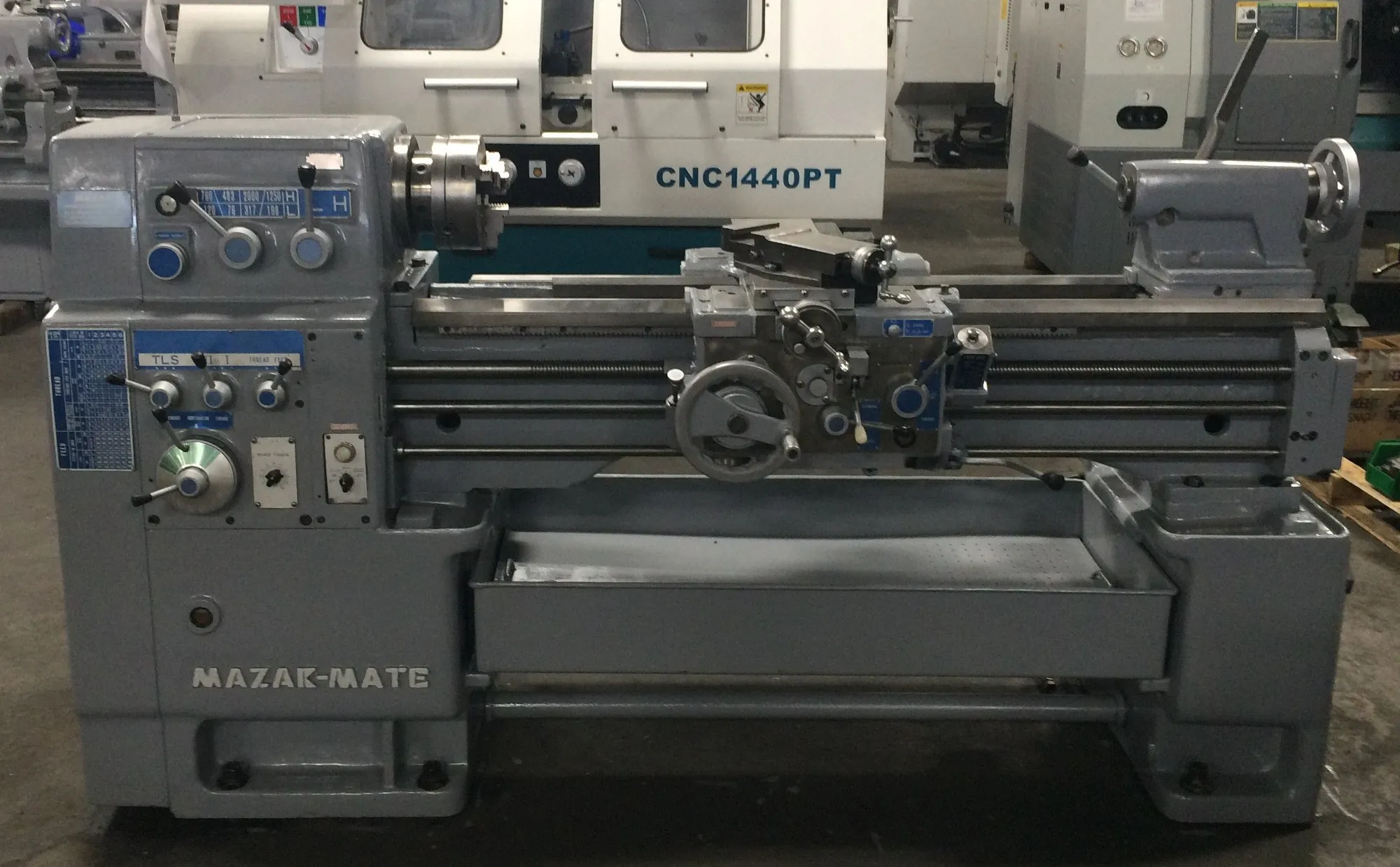

14"/20" x 40" MAZAK MATE GAP BED ENGINE LATHE
MODEL: MATE,

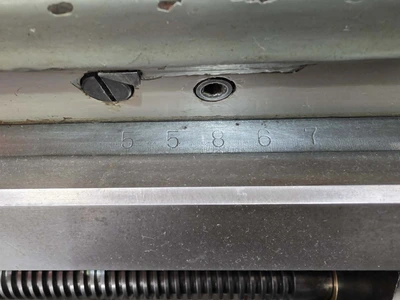

s/n 55867,

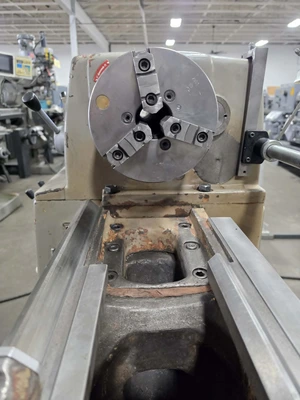

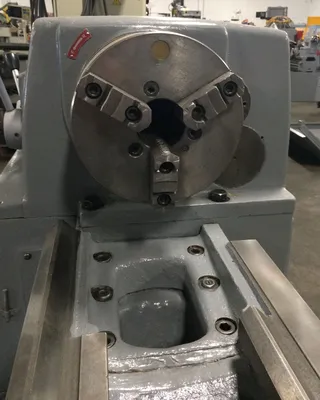

8” 3-Jaw Chuck,

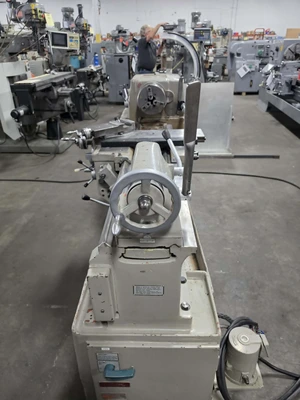

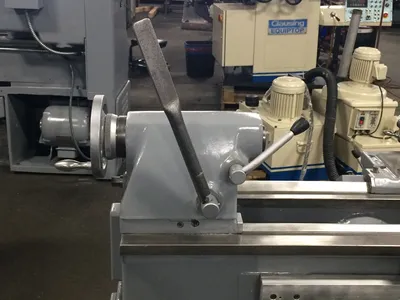

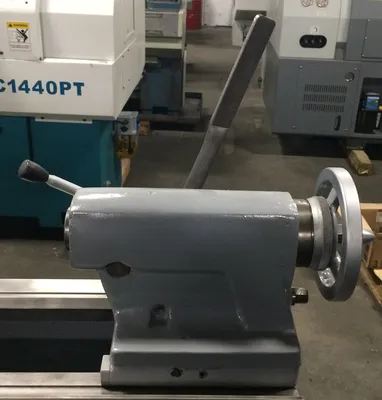

Tailstock,
THREAD DIAL,

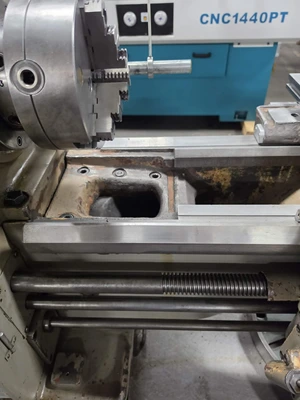

HARDENED BED WAYS,
5 HORSE POWER MAIN MOTOR,
NEW:1990's SPECIFICATIONS:
SWING OVER BEDWAYS ................... 14"
SWING IN REMOVEABLE GAP .............. 19"
SWING OVER CROSS SLIDE ............... 8-1/4"
HOLE THRU SPINDLE .................... 1-9/16"
DISTANCE BETWEEN CENTERS ............. 40"
SPINDLE NOSE ......................... D1-5" CAMLOCK
SPINDLE SPEED RANGE (8) .............. 76 - 2000 RPM

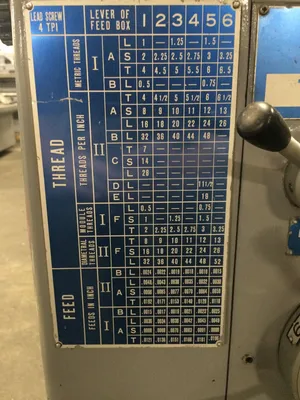

ENGLISH THREADING RANGE (28) ......... 4 - 48 TPI
METRIC THREADING RANGE (17) .......... .5 - 6.5 mm
LONGITUDINAL FEED RANGE .............. .0015" - .0196" IPR
CROSS FEED RANGE ..................... .0037" - .0499" IPR
TAILSTOCK SPINDLE TAPER .............. #4MT TAILSTOCK
SPINDLE TRAVEL ............. 5-1/8"
APPROX FLOOR SPACE ................... 85"L x 30"W x 48"H
APPROX WEIGHT ........................ 3,350 LBS

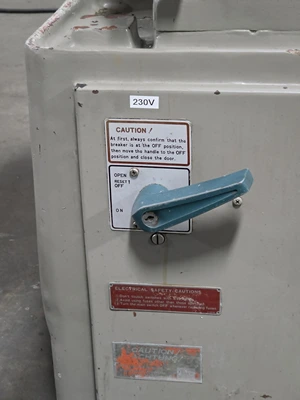

VOLTAGE............................... 230V 3 PHASE
