USED 2023 ITALIMPAINTI IAO/BR50

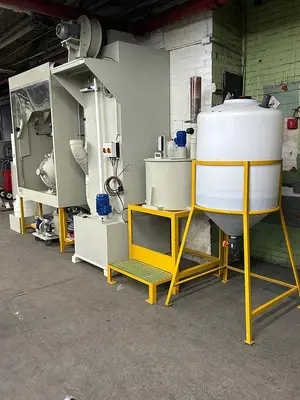

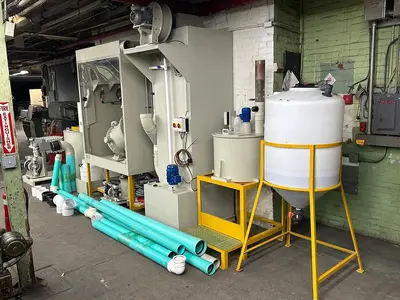

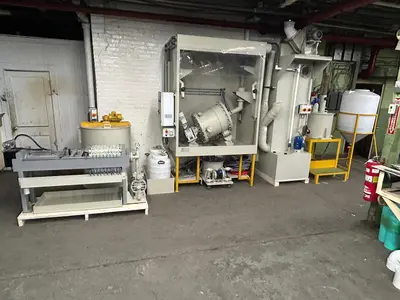

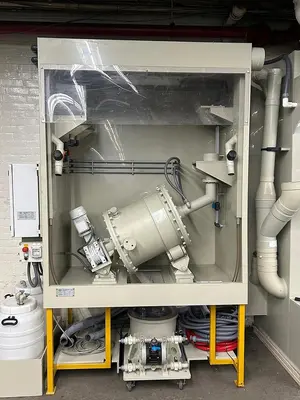

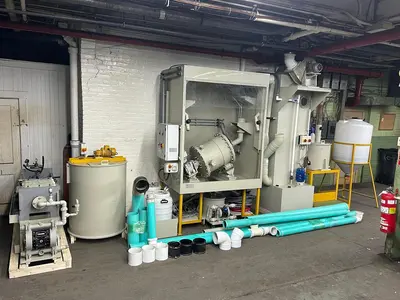

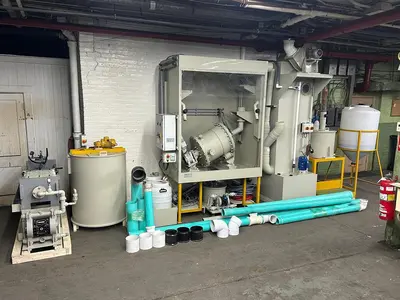

ITALIMPIANTI ORAFI spa IAO/BR50 PVDF ROTATING TUMBLER Aqua regia gold refining tumbler and silver nitrate production - Year 2023

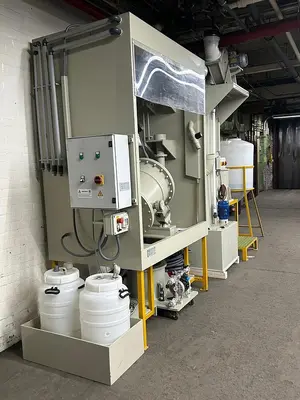

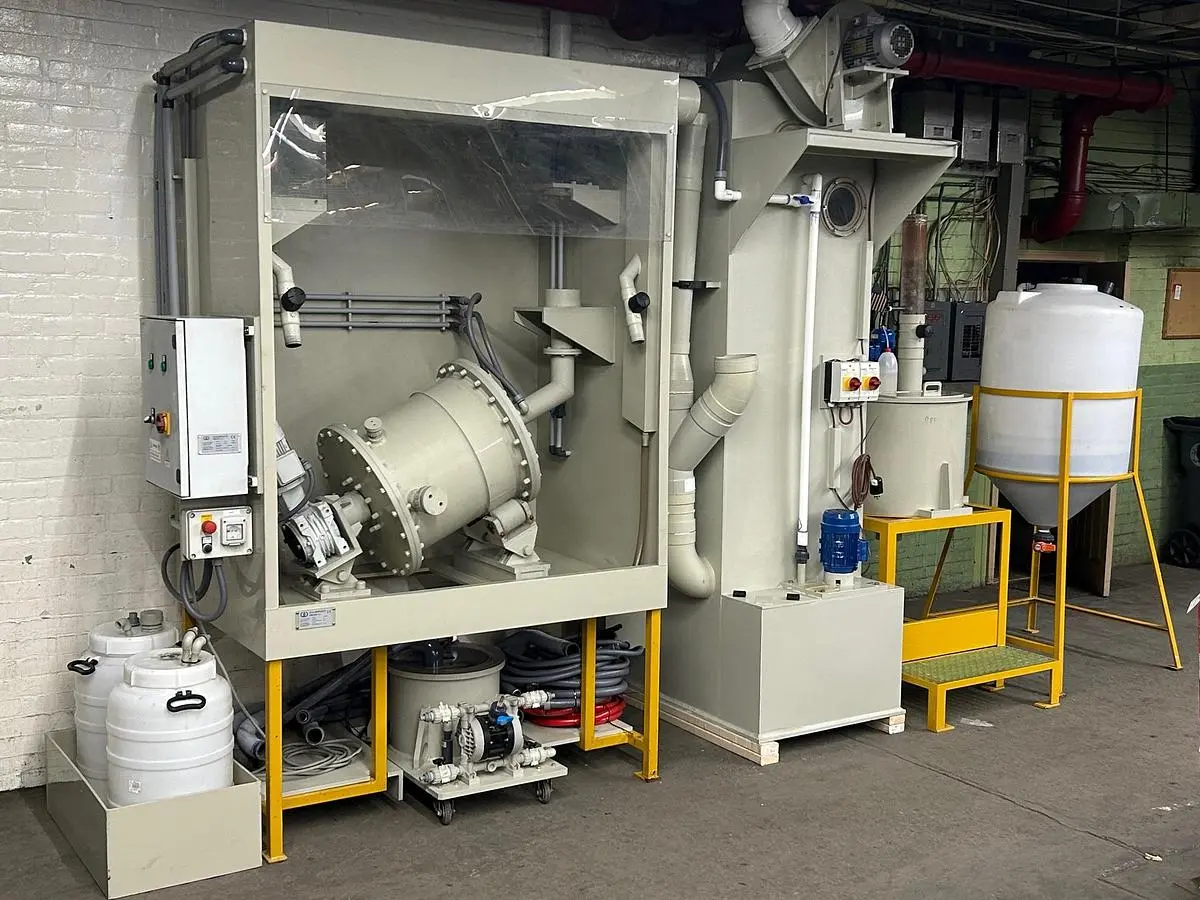

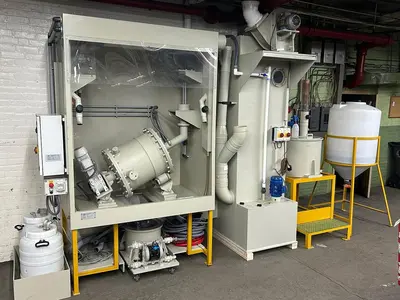

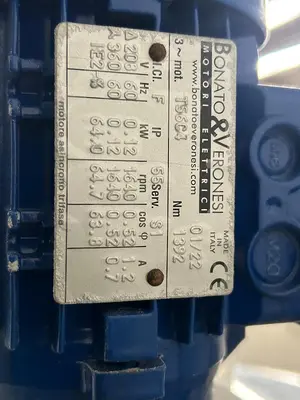

Italimpianti Orafi aqua regia refining tumblers are a state-of-the-art solution for refining gold alloys and offer a quicker, more flexible and user-friendly approach compared to traditional static glassware units. This IAO/BR50 model consists of a Polyvinylidene fluoride PVDF tumbler with a total volume of about 100 litres, inclined to 30° and rotated by a motor, with the possibility to adjust the rotation speed. The rotation forces the gold grains to continuously rub against each other reducing the overall dissolution time. The tumbler has a useful capacity of about 50 litres (acids plus gold grains). A Pyrex glass condenser, connected to the fume outlet on the tumbler, condenses the acid fumes released during the process thus reducing the volume requiring neutralisation and resulting in a more efficient fume scrubbing operation. 7.5 kg of grains can be refined per batch with the possibility to treat two batches per standard working shift. Depending on initial composition, a purity of 999.5/1000 is guaranteed – higher purities can be achieved if starting parameters fall within certain restrains, like quantity of gold and silver present in the initial alloy.

MAIN ADVANTAGES
Cheaper to maintain thanks to absence of expensive glassware.
Cheaper to run thanks to absence of heating jackets.
Maximum operational flexibility: refining with aqua regia or nitric acid inquartation
Reduced cost : advanced chemical compatibility of PVDF at a lower price than titanium
Optimized reaction time due to the possibility to integrate steam heating
More flexibility, able to handle a wider range of materials and alloys with higher silver contents.

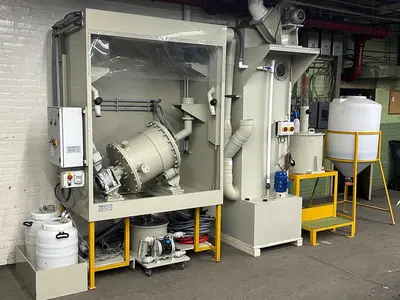

STANDARD SET UP
N.1 Polyvinylidene fluoride PVDF tumbler with a total volume of about 100 litres.
N.2 Graduated tanks for HCl and HNO3.

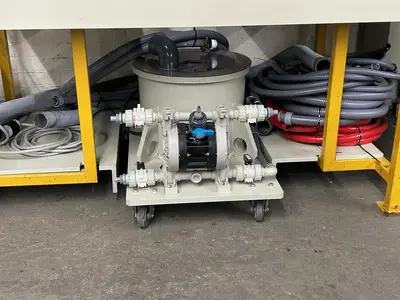

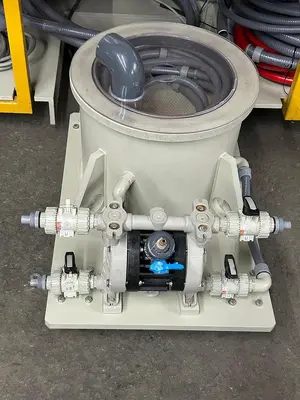

N.1 Filter unit on wheels fitted with compressed air diaphragm pumps to transfer the solutions.
N.1 100 litre precipitation tank.
N.1 Control panel.
N.1 Steam generator Power supply

TECHNICAL CHARACTERISTICS
Overall dimensions (LxWxH): 2600 x 1200 x 2500 mm
Weight (approx.) 375 kg
Production: 15 kg/day (7,5 kg/cycle)

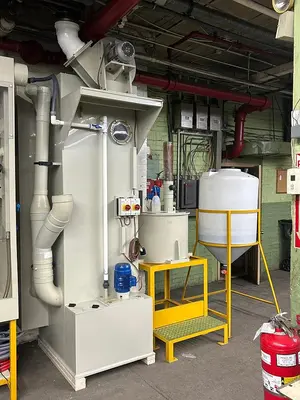

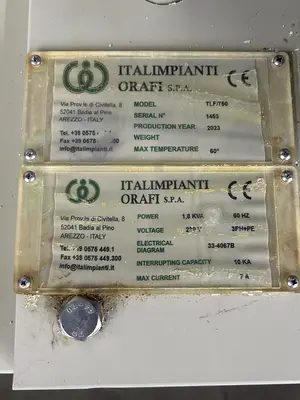

ITALIMPIANTI ORAFI spa – TLF/750-N Fume scrubber for acid fumes with NOx pre-treatment (for Aqua regia refining) - Year 2023

The tower is used to neutralize acid fumes. It is made out of polypropylene sheets and has a nozzle to spray a thick layer of plastic rings inside of the main body of the scrubber to increase the contact surface. The fumes are mixed with air/oxygen before to enter inside the tower in a mixing pipe (NOx pre-treatment). The flowrate of inlet gas can be controlled by using an Inverter (OPTIONAL). The scrubber can be equipped with a pH meter to control the acidity (OPTIONAL).

TECHNICAL CHARACTERISTICS
Tower Body dimensions 500 x 500 x 1350 mm
Washing Bed Height about 650 mm with Rings 1”
Pump Vertical Centrifugal Lenght 450 mm Power 0,75 kW
Fan 0,25 kW 230 V
Waste gas flowrate Max 600 Nm3/h
Inlet Diameter 160 mm
Outlet Diameter 160 mm
Washing solution Collecting tank 500 x 500 x 900 mm
Overall dimensions (LxWxH) 550 x 900 x 2500 mm
Weight (approx.) 100 kg

 ITALIMPIANTI ORAFI spa – IN/C Wast Water Treatment Plant - Year 2023

Water coming from the refining process can be treated with this plant which consists of:
n°1 tank complete with agitator to stir the solution to be neutralised
n.1 Filter press with pneumatic pump
The filter press is used to filter the neutralised solutions and retain the copper, zinc etc. hydroxides. The components of the filter press, from the smallest to the largest, are single-block structures that are electrically welded, machined and carefully inspected; the design has allowed for very low stress levels, even under maximum operating pressure. The heads and longitudinal bars are plated with stainless steel or other metals depending on the chemical properties of the solutions to be filtered. The cloths, the shape and the dimensions of the plates, as well as the materials used inside the filter elements, constitute the most important part of a filter press. The choice of these elements is the result of years of experience on the part of those who are familiar with these problems. The pump is provided with an electronic level control probe for the automatic starting and stopping of the plant.

TECHNICAL CHARACTERISTICS
Dimensions of filter plates 300x300 mm
Number of filter plates 8
Capacity of treatment tank 380 litres
Power supply 400V | 50/60Hz
Polarity Threephase

* Production: 15 kg/day (7,5 kg/cycle)
Voltage: 220v 3ph 50/60hz
