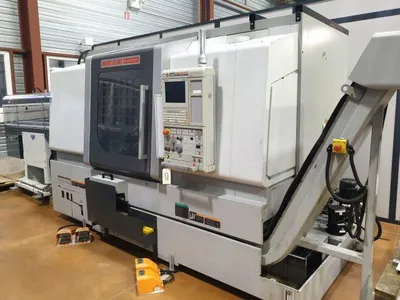

USED MORI SEIKI NLX2500 SY/700

Serial Nr: NL254120810
TECHNICAL DETAILS
- Number of spindles : 2
- Number of turrets : 1
- Number of axes : 6
MAIN SPINDLE
- Spindle nose : A2-8
- Max. bar diameter : 80 [mm]
- Spindle power : 18,5 [kW]
- Spindle speeds : 4.000 [rpm]
- Max. turning diameter : 366 [mm]
- C axis indexing precision : 0,001 [°]

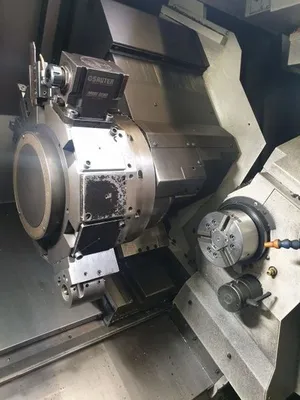

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 260 x 795 [mm]
- Y stroke : +/- 50 [mm]
- Live tools speed : 6.000 [rpm]
- Live tools power : 5,5 [kW]

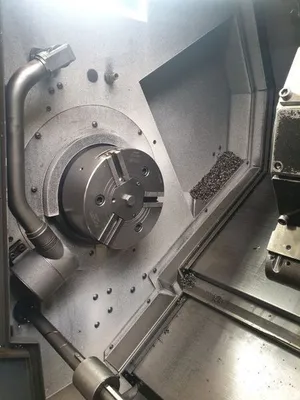

COUNTER-SPINDLE
- Spindle nose : A2-5
- Max. bar diameter : 43 [mm]
- Max. turning diameter : 190 [mm]
- Spindle power : 11 [kW]
- Spindle speeds : 6.000 [rpm]
- C axis indexing precision : 0,001 [°]
- Travel : 734 [mm]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 41 [kVA]
WEIGHT & DIMENSIONS : 1730
- Machine floor space : 4.414 x 2.370 [mm]
- Machine height : 2.115 [mm]
- Machine weight : 6.360 [kg]
MACHINE HOURS
- Number of hours under power : 34.552 [h]
- Number of working hours : 11.420 [h]
EQUIPMENT

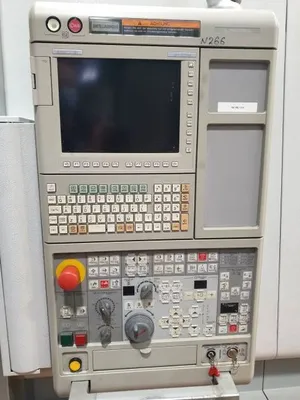

- CNC : MORI M730BM (Mitsubishi)
- Interactive programming : MAPPS 4B
- Interface : USB / RJ45
- Tool probe : Marposs
- 3 colors status lamp
- Tailstock function
- Coolant tank
- Chips conveyor
- Parts catcher

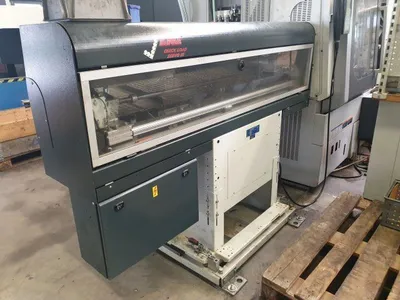

- Bar loader : LNS Quick Load Servo 3 (2011)
- Chuck 3 jaws : KITAGAWA BB210
- Chuck 3 jaws : KITAGAWA B206
- Number of fixed tool holders : 4
- Number of turning tool holders : 2
- Electric transformer : 400 /200 [V]
