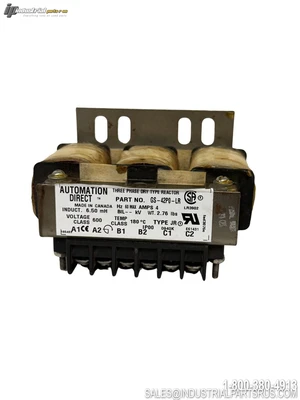

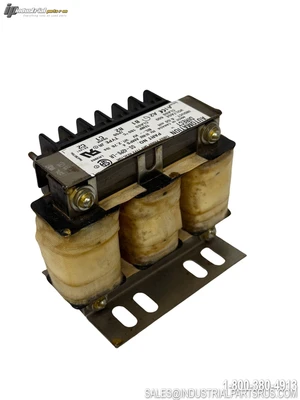

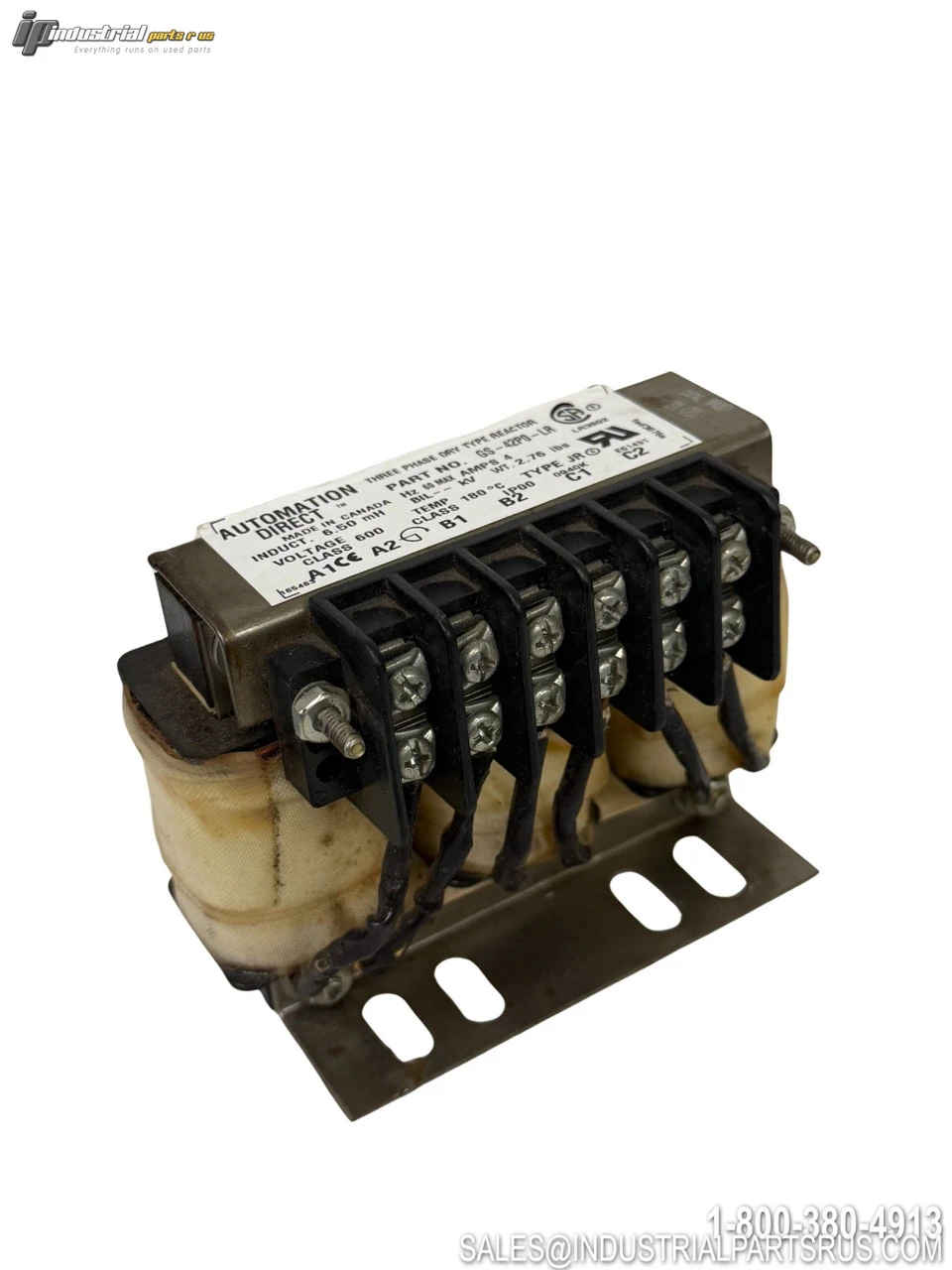

USED AUTOMATIONDIRECT GS-42PO-LR

The Automation Direct GS-42P0-LR is a three-phase AC line reactor designed for use with GS2 and GS3 series variable frequency drives. This dry type reactor features 6.50 mH inductance with 3% impedance and is rated for 4 amps. It supports both input and output applications for 460V/575V drives with 2.0/3.0 HP ratings. Line reactors protect VFDs from line transients and reduce harmonic distortion in the power system.
Specification
Value
Brand
Automation Direct
Model/Part Number
GS-42P0-LR
Product Type
Line Reactor
Reactor Type
AC Line/Load Reactor
Construction
Three Phase Dry Type
Rated Current
4 Amps
Voltage Rating
460V/575V
Frequency
60 Hz
Horsepower Rating
2.0 HP (460V) / 3.0 HP (575V)
Inductance
6.50 mH
Impedance
3%
Power Loss
13 Watts
Compatible Drives
GS2-42P0, GS2-53P0, GS3-42P0
Application
Input/Output
Status
Discontinued (Retired 11/2011)
Weight
2.81 lbs
We warranty all items for 30 days from date of purchase.
