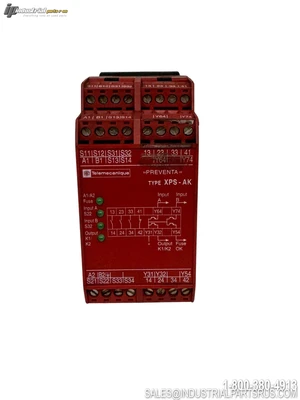

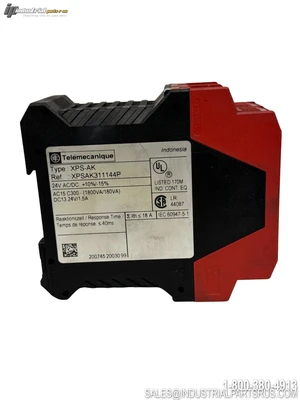

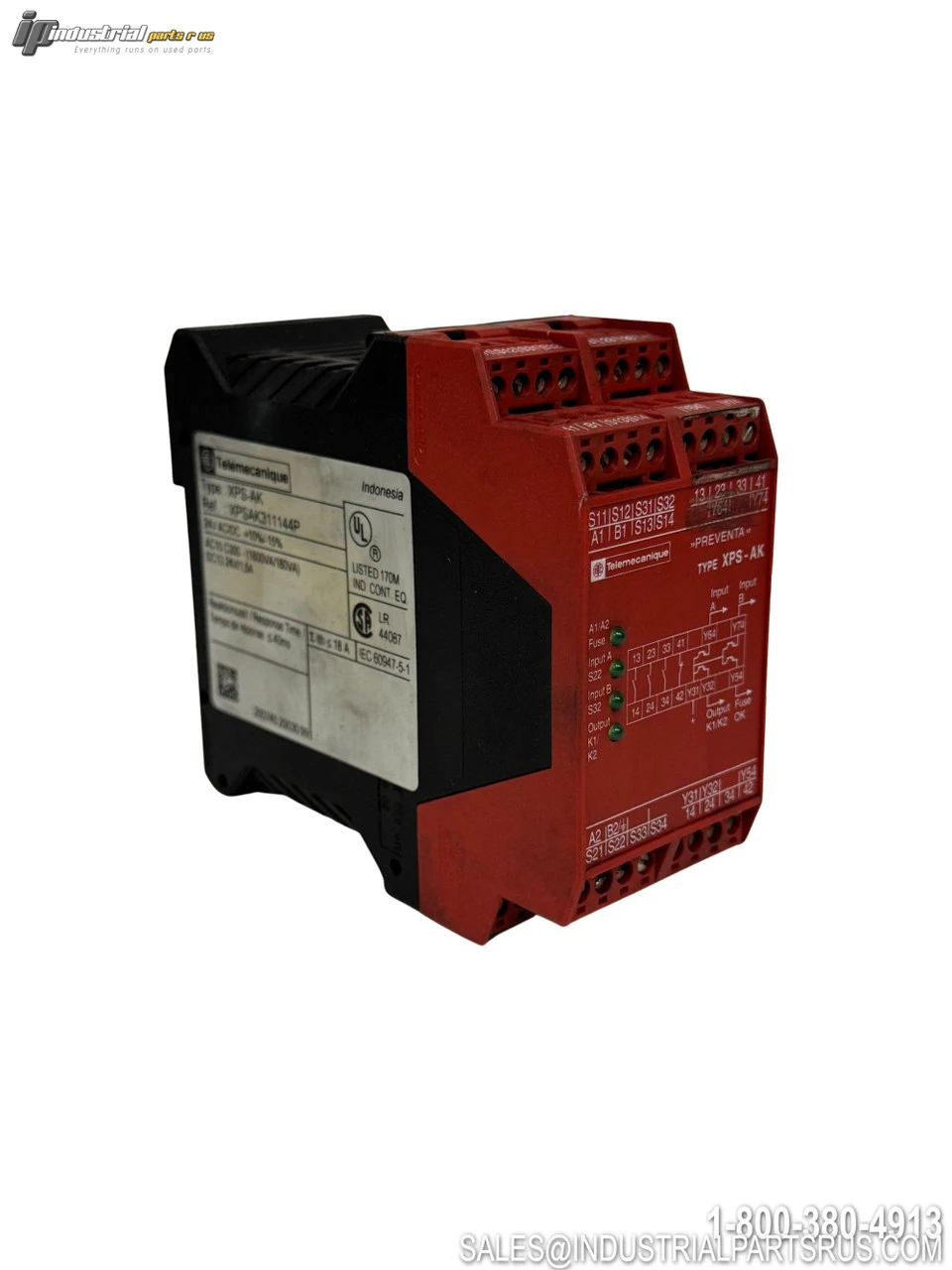

USED SCHNEIDER XPSAK311144P

The Schneider XPSAK311144P is a Preventa safety relay module designed for emergency stop and safety monitoring applications. This dual-channel safety relay features microprocessor-based technology with redundancy principles, providing advanced safety functions for industrial automation systems. The module is suitable for monitoring emergency stops, safety switches, light curtains, and safety mats/edges.
Specification
Value
Brand
Schneider Electric
Model/Part Number
XPSAK311144P
Series
XPSAK
Product Family
Preventa XPS Safety Automation
Coil Voltage
24V AC/DC
Contact Configuration
3PST-NO Safety, 1 NC Auxiliary
AC Contact Rating
2.5A @ 300V
DC Contact Rating
1.5A @ 24V
Response Time
≤ 20ms
Safety Level
SIL 3, PLe, Category 4
Mounting Type
DIN Rail
Operating Temperature
-10°C to +55°C
Dimensions
45 x 99 x 114 mm
Width
45mm
Height
99mm
Depth
114mm
IP Rating
IP20, IP40
Input Power Consumption
5.0 VA
Number of Inputs
3
Solid State Outputs
4
Terminal Type
Screw, Removable
Standards Compliance
EN ISO 13849-1, IEC 61508, EN 60204-1
We warranty all items for 30 days from date of purchase.

SKU: AI1141
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail
Current Rating: 2.5A @ 300V AC, 1.5A @ 24V DC
Manufacturer: Schneider
Part Number: XPSAK311144P
Shelf: K-57
Model: XPSAK311144P
Coil Voltage: 24V AC/DC
MPN: XPSAK311144P
Type: Safety Relay
