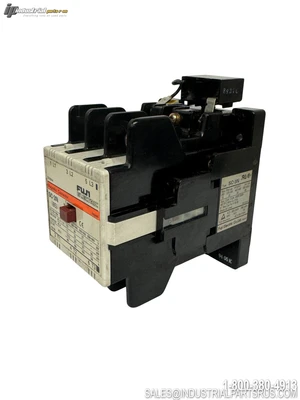

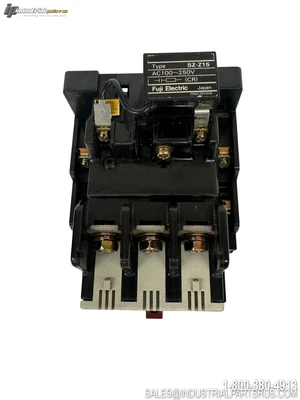

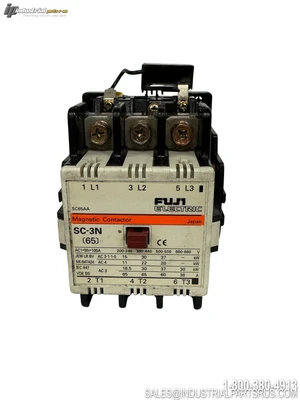

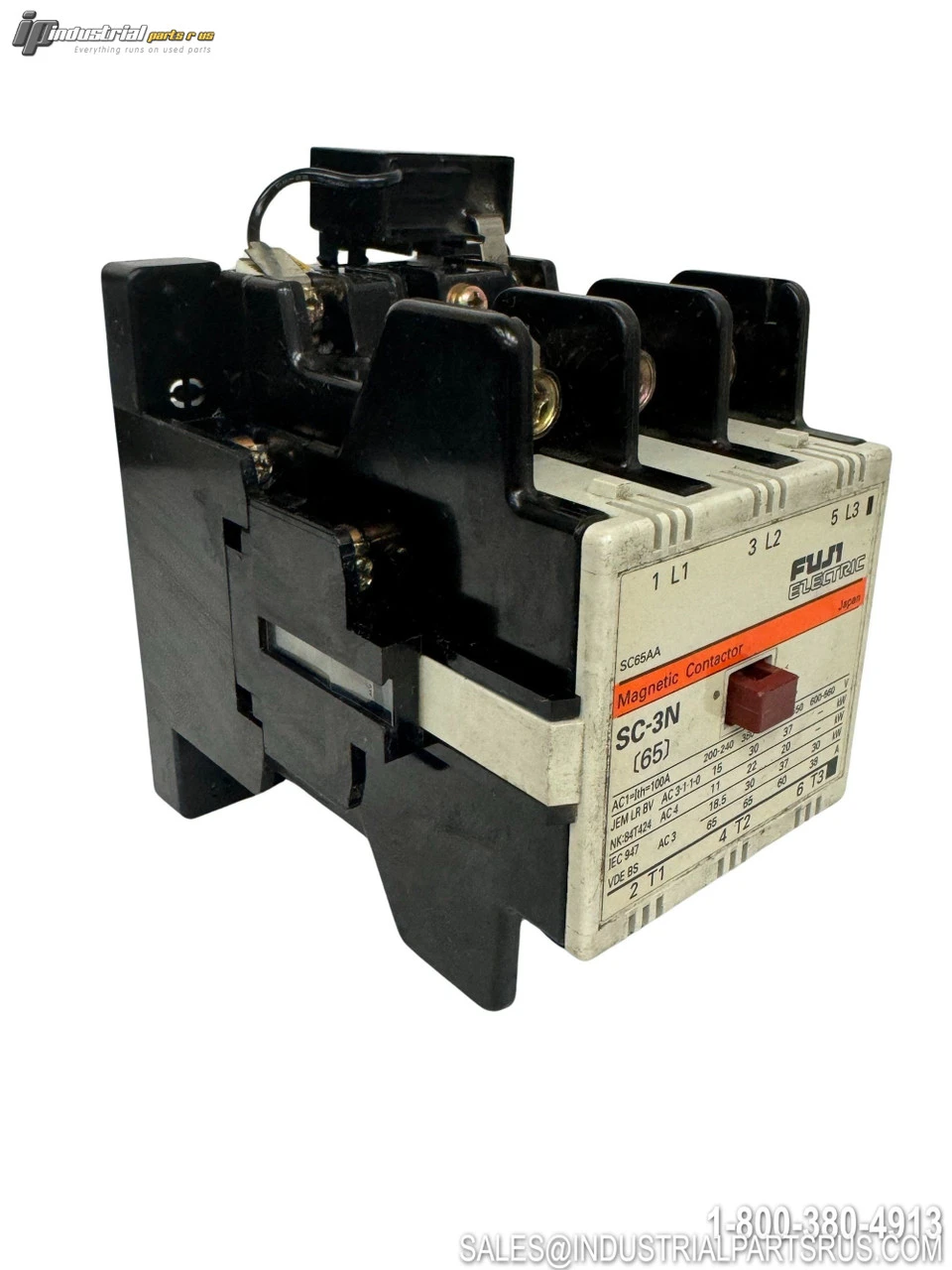

USED FUJI SC-3N

The FUJI SC-N3 is a 3-pole magnetic contactor designed for industrial motor control applications. This contactor features a 100A thermal current rating, 65A operational current at 440VAC, and auxiliary contact configurations. It is part of FUJI's SC series of high-performance contactors with compact design and reliable operation.
Specification
Value
Brand
FUJI
Model/Part Number
SC-3N
Product Type
Magnetic Contactor
Frame Size
N3
Number of Poles
3
Thermal Current (Ith)
100A
Operational Current AC-3 200-240V
65A
Operational Current AC-3 380-440V
65A
Operational Current AC-3 500-550V
60A
Operational Current AC-3 600-660V
38A
Motor Capacity 200-240V
18.5kW
Motor Capacity 380-440V
30kW
Motor Capacity 500-550V
37kW
Motor Capacity 600-660V
30kW
Auxiliary Contacts
2NO+2NC standard
Contact Configuration
3PDT-NO
Current Type
AC
IEC Standard
IEC 60947-4-1
Series
SC
We warranty all items for 30 days from date of purchase.

SKU: AI1130
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail
Current Rating: 100A
Material: Silver Contacts, Thermoplastic Housing
Full Load Amps: 100A
Manufacturer: Fuji
Part Number: SC-3N
Series: SC
Shelf: C-11
Model: SC-3N
Coil Voltage: 380-440VAC
Horsepower: 25 HP
MPN: SC-3N
Type: Contactor
