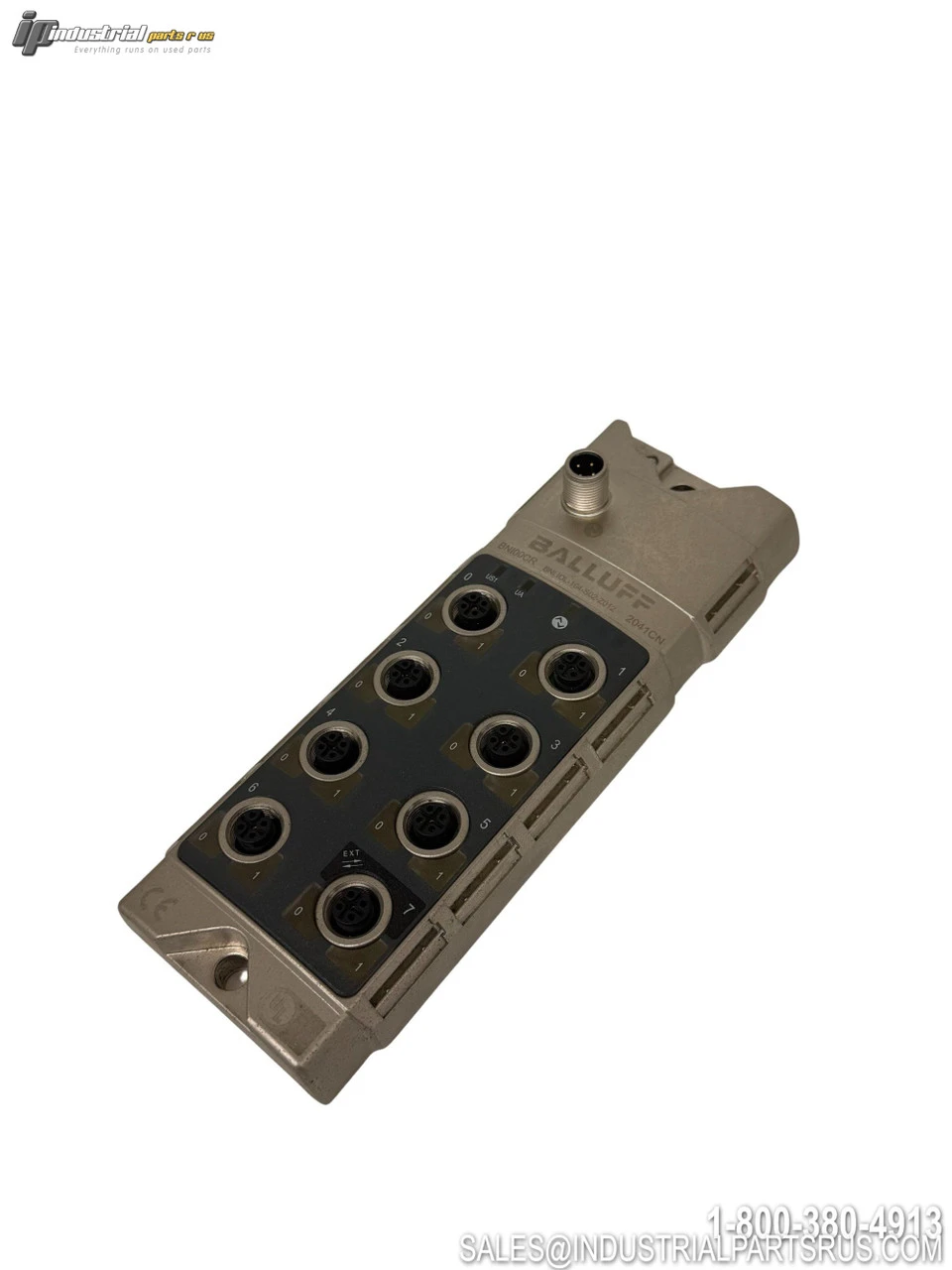

USED BALLUFF BNI IOL-104-S02-Z012

The Balluff BNI00CR is an industrial IO-Link sensor/actuator hub designed for robust automation applications. This I/O module provides 8 connection slots with M12 connectors and supports 16 digital inputs with PNP transistor technology. The unit operates on 18-30.2 VDC supply voltage and features IO-Link 1.1 interface for modern industrial networking requirements.
Specification
Value
Brand
Balluff
Model/Part Number
BNI00CR
Full Model Number
BNI IOL-104-S02-Z012
Interface
IO-Link 1.1
Operating Voltage
18-30.2 VDC
Nominal Voltage
24 VDC
Connection (COM 1)
M12x1-Male, 4-pin, A-coded
Connection Slots
8x M12x1-Female, 5-pin, A-coded
Digital Inputs
16x PNP, Type 3
Housing Material
Die-cast zinc, nickel-plated
Dimensions
68 x 31.8 x 181.5 mm
Current Sum (Sensor)
4 A
Current Sum (Actuator)
4 A
Extension Port
Yes
Single-Channel Monitoring
Yes
We warranty all items for 30 days from date of purchase.

SKU: AI1142
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Full Load Amps: 4 A
Manufacturer: Balluff
Part Number: BN100CR
Shelf: K-51 Tub 3
Model: BNI IOL-104-S02-Z012
MPN: BN100CR
Type: I/O Module
