20" x 25" MARVEL ARMSTRONG BLUM E2125TS VERTICAL BAND SAW

Equipped With
20" x 25" MARVEL ARMSTRONG BLUM E2125TS VERTICAL BAND SAW
New 2002

Description:

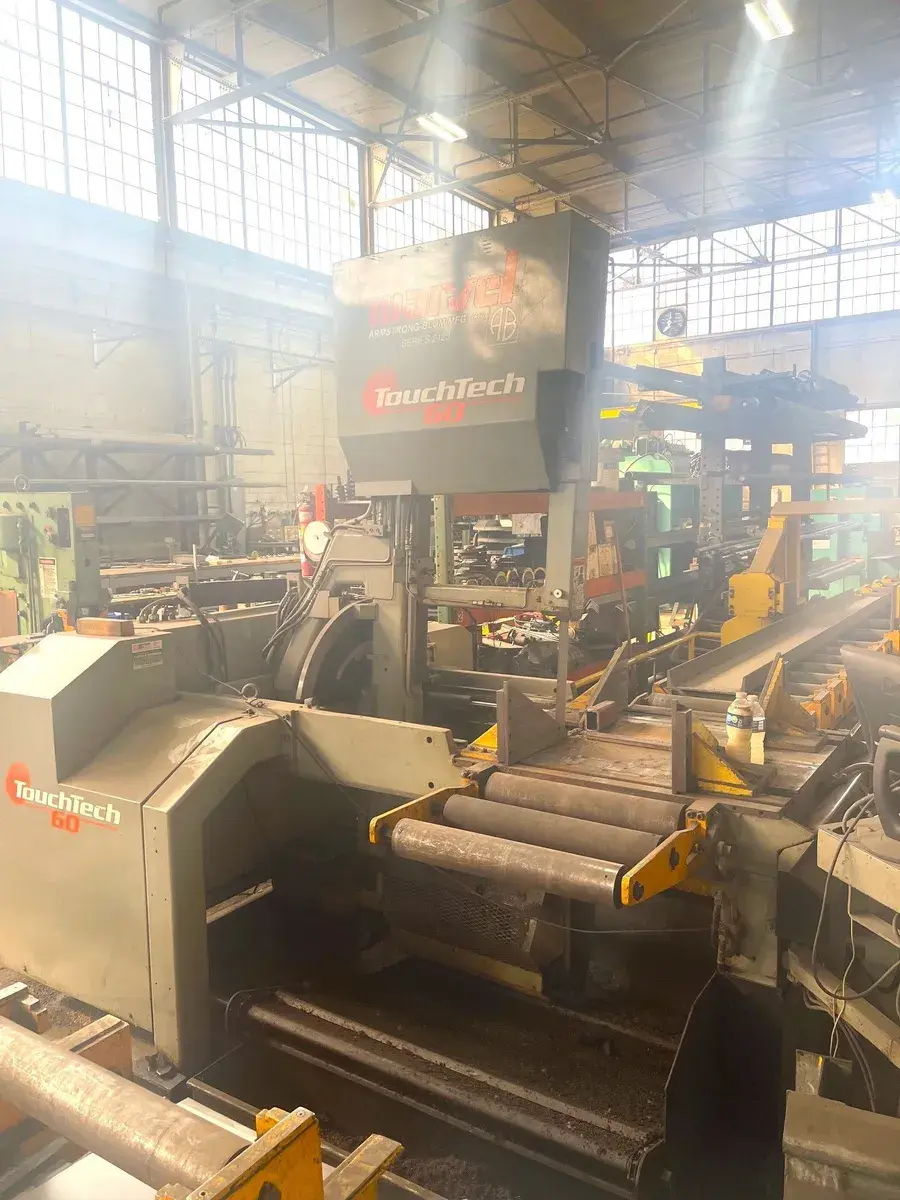

This Well Maintained 20" x 25" Capacity Marvel Armstrong Blum Series 2125 E2125TS TouchTech 60 is a high-production, automatic vertical tilt-frame band saw designed for versatile miter cutting and structural material handling. It features a large 20" x 25" throat capacity and the ability to hydraulically tilt the column up to 60° left and right



Specifications:


Throat
20"
Work Height
25"
Power
7.5 hp
Blade Width
1.25"
Blade Length
210"
FPM
475
Marvel Armstrong Blum Series 2125 E2125TS TouchTech 60 Vertical Band Saw (2002)
Cutting Capacity (0°): 20" Rounds; 20" x 25" Rectangles.
Miter Capacities:
At 45°: 20" x 17".
At 60°: 20" x 11.25".
Blade Details: 17' 6" long x 1.25" wide x .042" thick.
Blade Speed: Infinitely variable from 30 to 650 FPM (depending on specific drive configuration).
Main Motor: Typically 7.5 HP.
Table Load Capacity: 8,000 lbs on the main table; up to 14,000 lbs on integrated feed tables
Feed System: Direct Force Sensing Electric Ball Screw Feed (0–350 lbs).
Canted Column: The 3-degree forward-canted column increases cutting efficiency and blade life when cutting structural materials.
Versatility: Ideal for industries such as automotive, aerospace, and general metal fabrication.
Blade Guidance: Self-clamping, carbide roller guides with rotating Easy Load functionality.
Efficiency: Features variable vise pressure, automatic bar feed (up to 48 inches on some models), and hydraulic blade tensioning (45,000 PSI).
