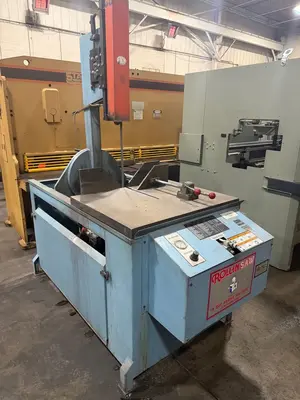

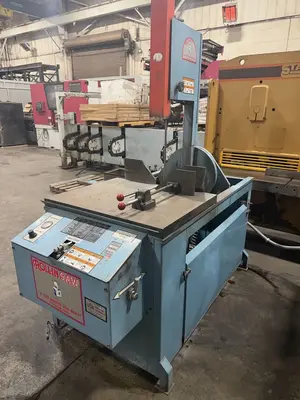

ROLL-IN MODEL TF1420 VERTICAL TILT BAND SAW

Equipped With
ROLL-IN MODEL TF1420 VERTICAL TILT BAND SAW
New 2021
Equipped With:

(2) 120" Manual roller conveyors.

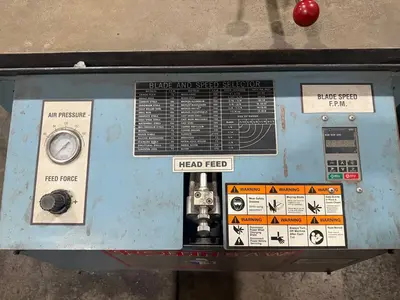

Digital blade speed control with readout.
Air over oil adjustable blade feed system.

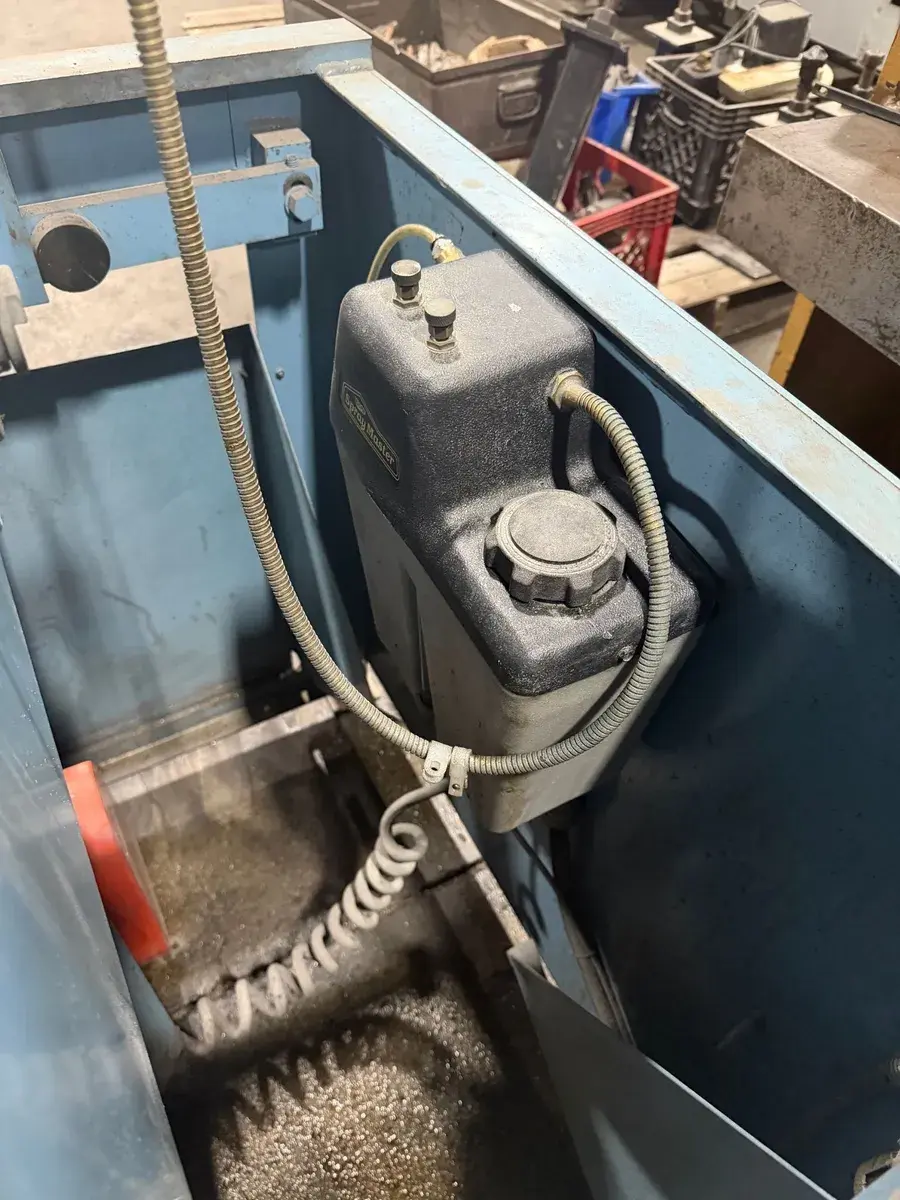

Mist coolant.
Manual blade tension.

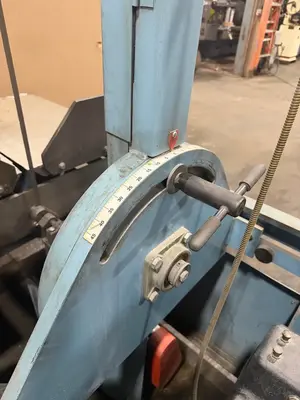

Manual head tilt with miter scale
Specifications:
Cutting capacity @ 90 degrees: 14" W x 20" T
Cutting capacity @ 45 degrees: 13" W x 15" T
Miter range: 45 degrees both directions
Capacity under guide: 20"
Throat: 14"
Blade size: 12'11" x 1" x .035"
Blade acceptable widths: 1/4", 3/8", 1/2", 5/8", 3/4", 1"
Blade speeds: 70 - 400 FPM

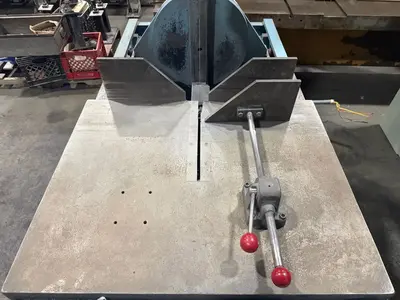

Table size: 32-1/4" x 26-1/4"
Table height: 37"
Main motor: 2 H.P.
Voltage: 440 volt 3 phase
Dimensions: 37" x 66" x 80" (saw only)
Weight: 1,400 Lbs
