Used Cincinnati 1412 Mechanical Power Squaring Shear, capacity 3/16" x 12'. Features 36" front-operated back gauge range, squaring arm, foot treadle, and automatic lubrication system. Motor: 15 HP. Dimensions: 188” W X 84” D X 80” H. Weight: 22,600 lbs.
| Max Thickness | 0.1875" | 4.7625 mm |
| Length of Blade | 12' | 3.7 m |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 36" | 914.4 mm |
| Power | 15 hp | 11.2 kW |
| SPM | 60 strokes/min. | 60 strokes/min. |
| Dimensions | 188” W X 84” D X 80” H | 188” W X 84” D X 80” H |
| Weight | 22,600 LBS | 22,600 LBS |

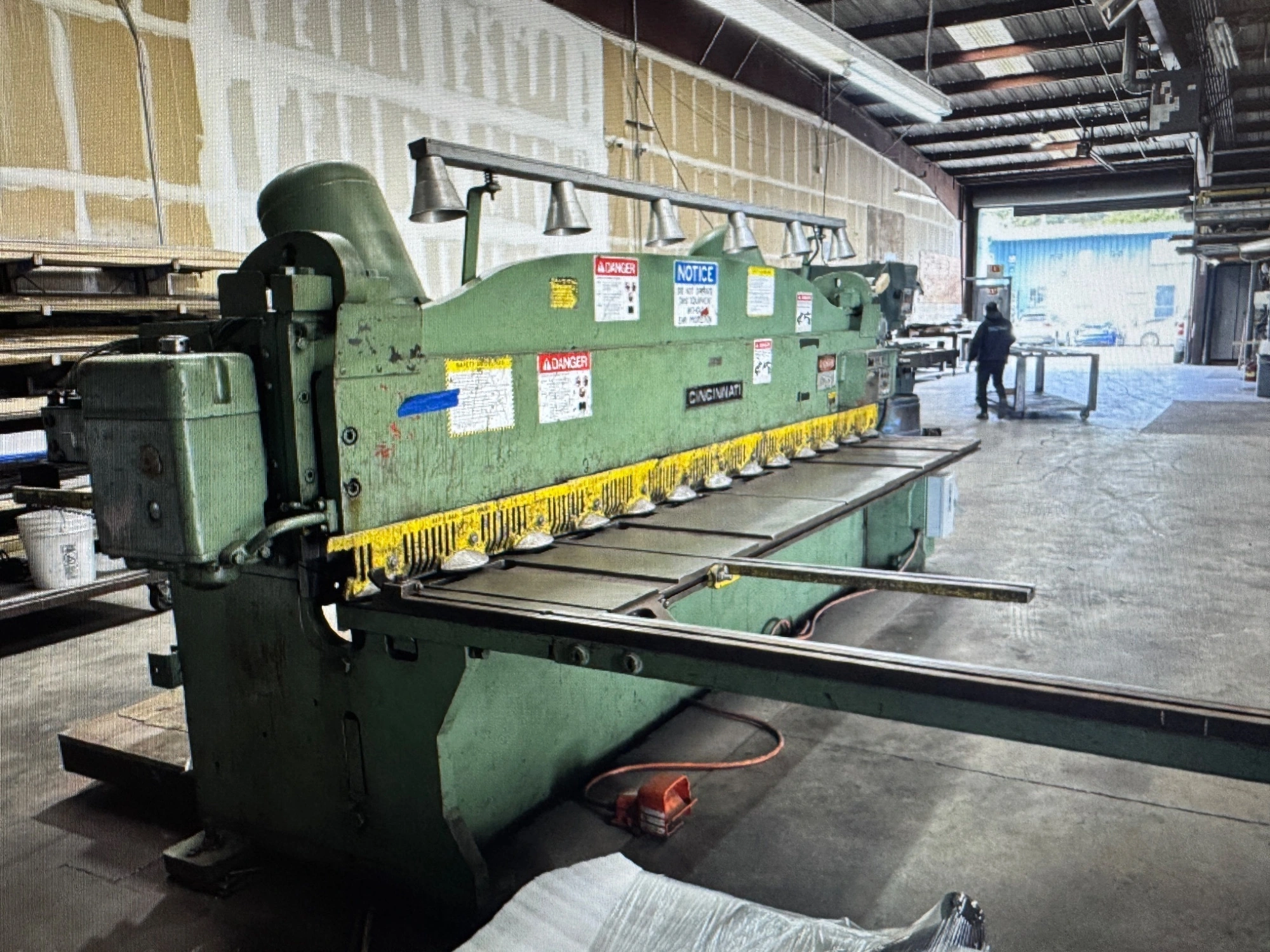

Cincinnati 1412 Mechanical Power Squaring Shear 3/16" x 12' #8176 #2
SPECIFICATIONS:
Capacity: 3/16"
Length Between Housings: 12’ 6”
Strokes Per Minute: 60
Knife Size: 4” X 1” X 12’ 4”
Rake, Taper Per Foot: ¼”
Hydraulic Hold Down Force: 8 Tons
Number of Hold Downs: 13
Back Gauge Travel: 0 - 36”
Table Height: 32”
Motor: 15 HP
Approximate Dimensions: 188” W X 84” D X 80” H.
Approximate Weight: 22,600 LBS
EQUIPPED WITH:
36” Front Operated Back Gauge Range
Squaring Arm
Electric Foot Switch
Automatic Pressurized Lubrication System
Hand Slots and Dovetail Slots in Shear Table
