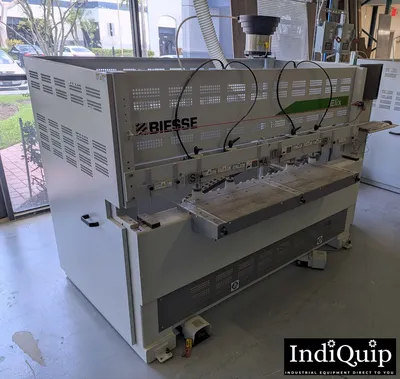

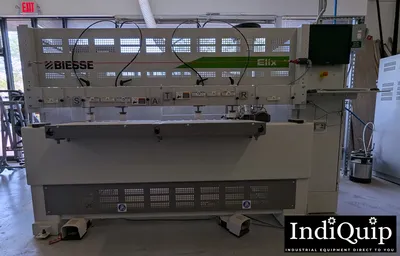

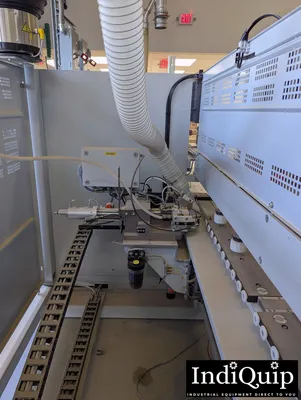

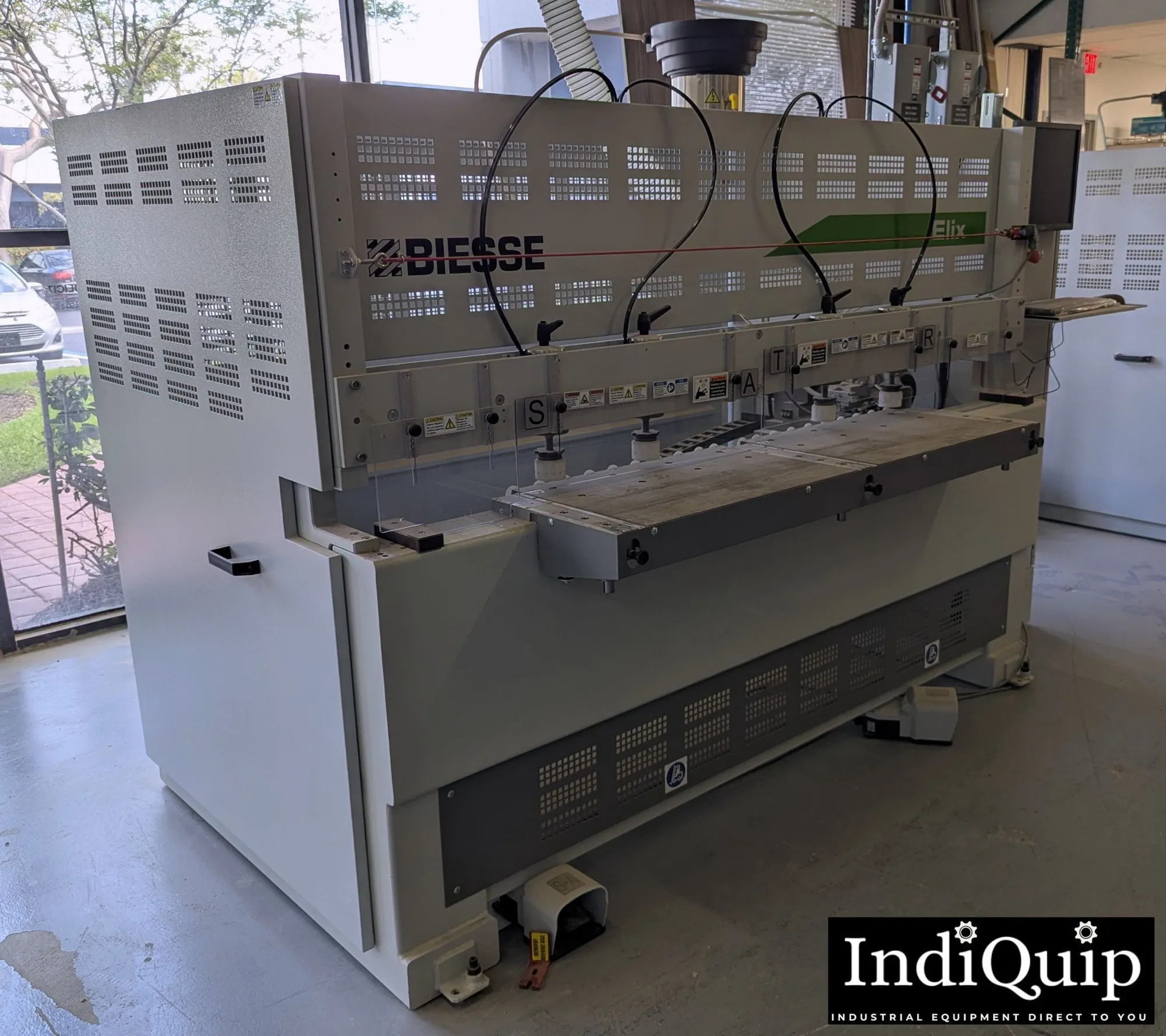

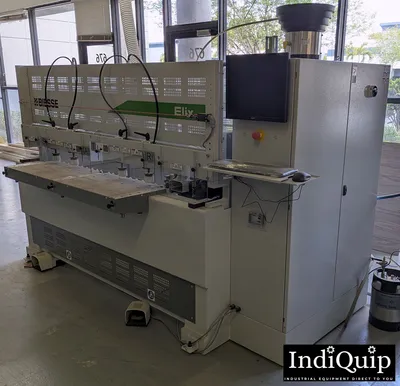

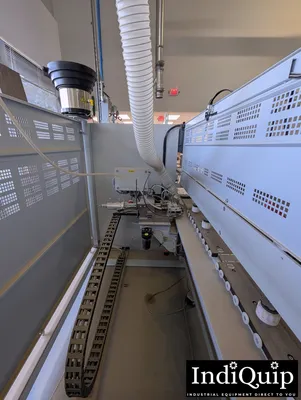

USED 2022 BIESSE Elix K3

2022 Biesse Elix K3 horizontal boring machine with dowel insertion, 1300 mm capacity, and 6000 RPM drilling. High-speed CNC drilling solution for cabinet and furniture production.

Max Panel Length: 1300 mm (51.2")
Panel Thickness Capacity: 10 – 40 mm
Horizontal Drilling Speed: 6000 RPM
Max Horizontal Hole Depth: 30 mm
Vertical Speed: 4500 RPM
Max Vertical Depth: 40 mm
Standard Dowel Size: 8 x 30 mm
Integrated Glue & Dowel Insertion System
Air Requirement: 7 Bar
Voltage: 230V
Phase: 3 Phase
Frequency: 60 Hz
Power: 3 kW
Rated Current: 10 A

Horizontal Drilling Unit (6000 RPM)
Integrated Dowel Insertion System
Glue Injection System
Laser Measurement System (length & width detection)
Optical Fiber Dowel Verification
Precision Material Pressers
Windows-Based CNC Control Interface
Foot Pedal Operation
Compact Industrial Frame
