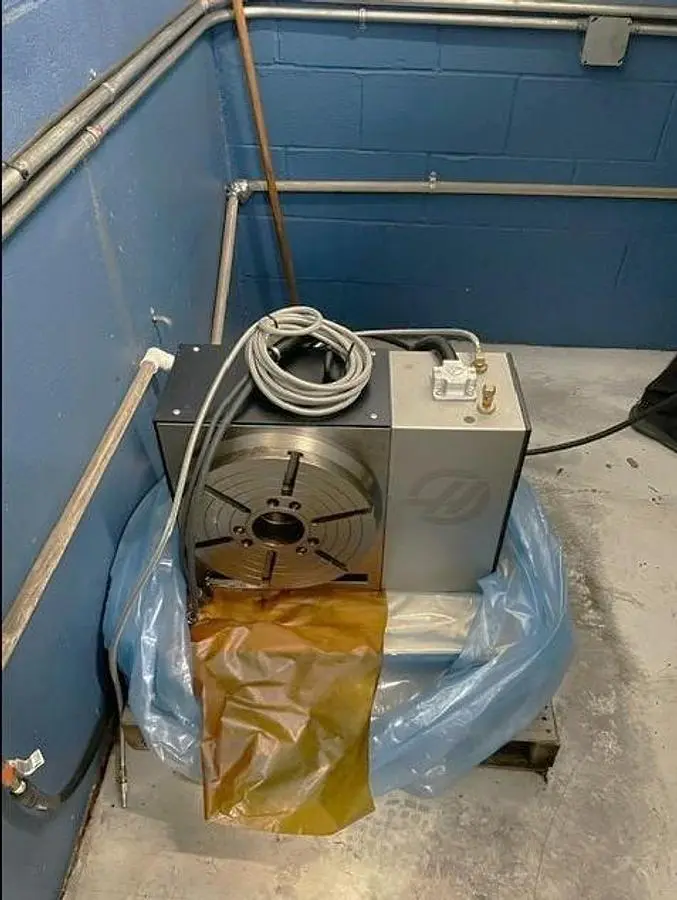

USED 2022 HAAS HRT310

BRAND NEW - NEVER USED

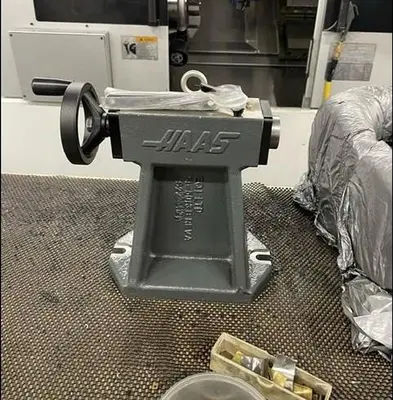

9" Height Manual Tailstock

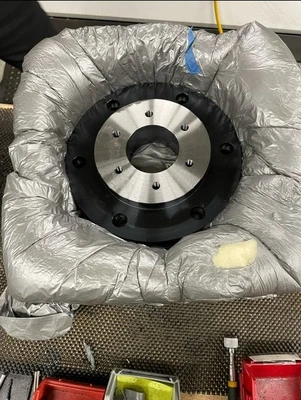

Adapter Plate for Tooling Block

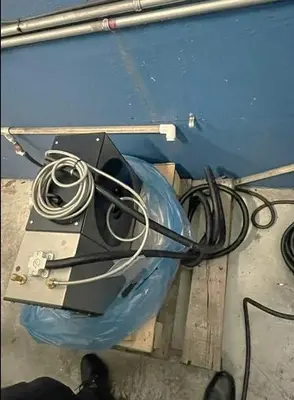

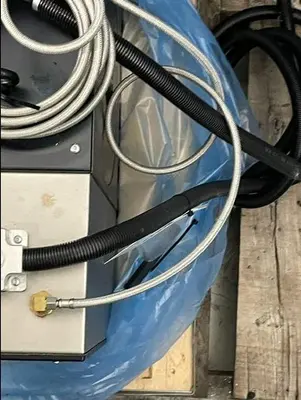

Dual Multi Pin Cable Connections
310 mm T Slotted Work Surface
Servo Driven

**Price New as Equipped at $27,385**

The 2022 Haas HRT310 rotary table is in excellent, unused condition, offering reliable performance for industrial applications. It includes two multi-pin cable connections for streamlined connectivity, a 9-inch manual tailstock, and an adapter plate for tooling block customization. The HRT310 features a 12.2-inch platter diameter, capable of handling a maximum weight of 435 lbs with support, or 218 lbs without support.

With a torque of 300 ft./lbs and a brake torque of 500 ft./lbs, the HRT310 delivers precise and efficient operations. The table includes six T-slots at 60-degree intervals for enhanced stability and flexibility in mounting. Its accuracy is rated at +/- 15 arc seconds, with a repeatability of 10 arc seconds, ensuring dependable precision in repeated rotations.

The HRT310 also boasts a hole through spindle of 3.375 inches and a worm gear diameter of 9.4 inches. It is designed for easy integration with machine dimensions of 24"x24"x21" and a weight of 450 lbs. Whether used for new installations or upgrades, this rotary table's robust specifications make it a suitable choice for diverse machining tasks.

Platter Diameter: 12.2"
Maximum Weight on Platter: With Support 435 lbs / Without Support 218 lbs
Torque: 300 ft./lbs.
T slots: 6 Slots @ 60 Degree
Accuracy: +/- 15 arc sec.
Face plate: 12.2" Diameter
Resolution: .001 Degree
Brake torque: 500 ft./lbs.
Center height: 9"
Repeatability: 10 arc sec
Runout maximum: .001"
Hole thru spindle: 3.375"
Worm gear diameter: 9.4"
Maximum rotation /step: 999.999 Deg.
Machine dimensions: 24"x24"x21"
Machine weight: 450 lbs
