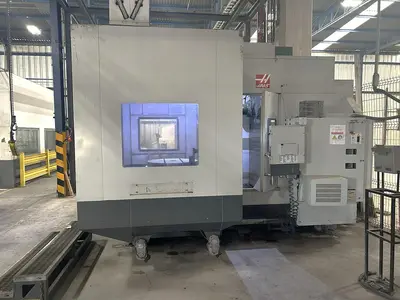

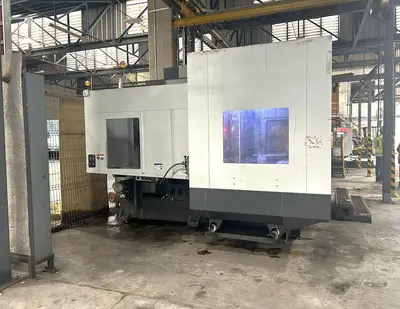

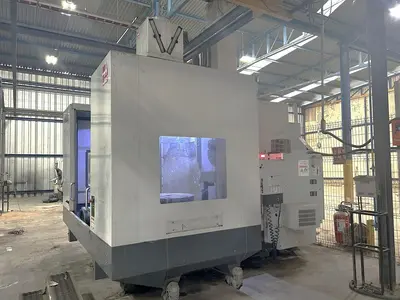

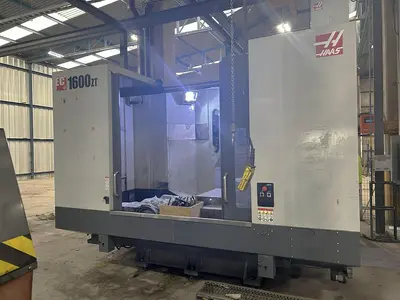

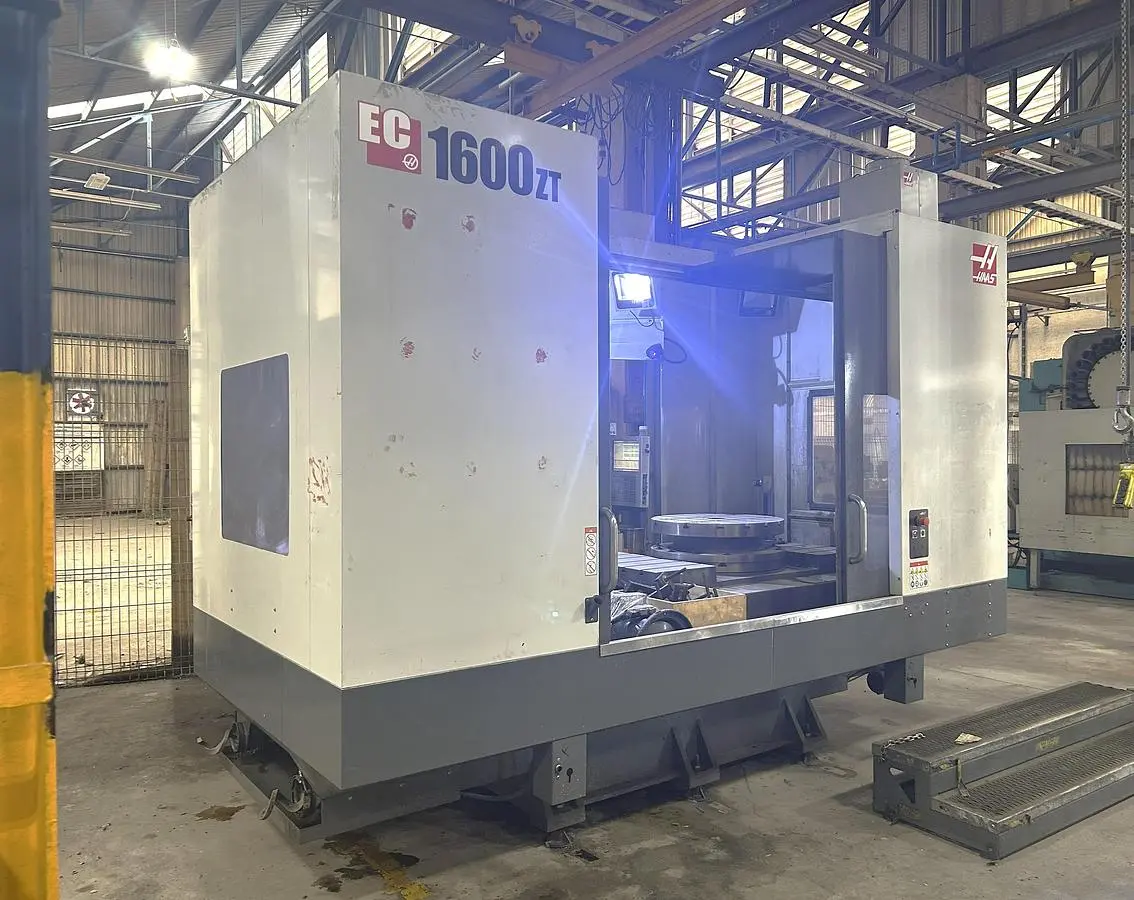

USED 2019 HAAS EC-1600ZT

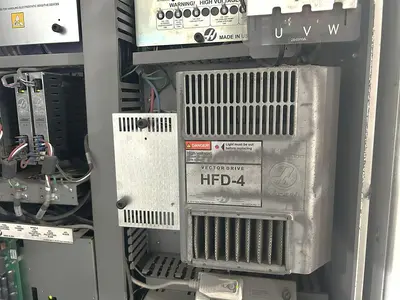

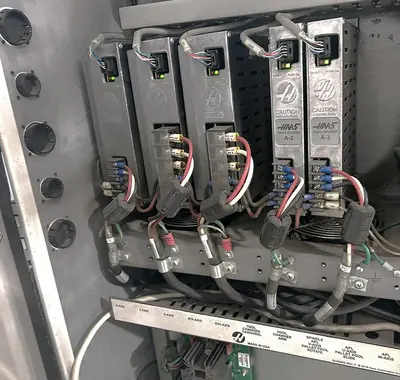

4th Axis Drive & Wiring

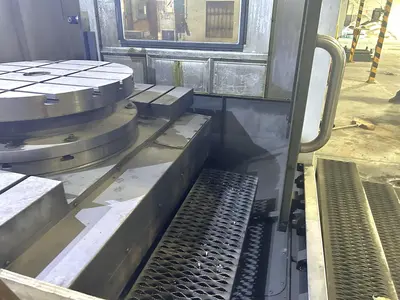

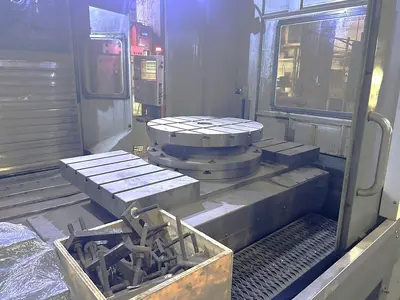

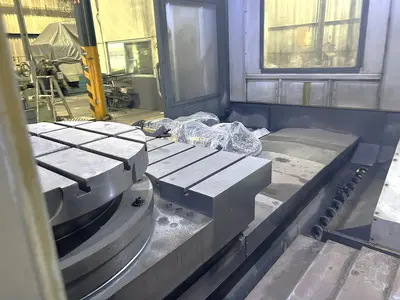

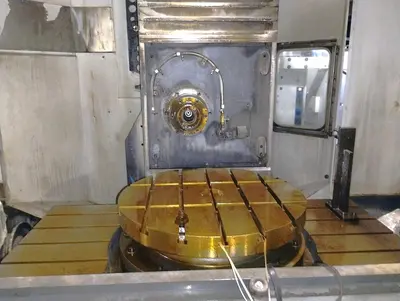

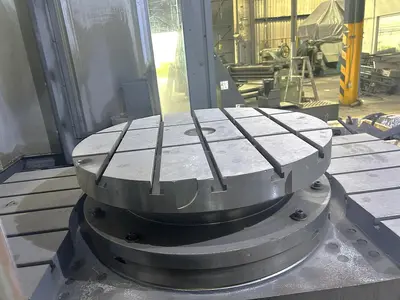

Full 4th Built-in 30" Rotary Platter with Raised T-Slotted Rotary
Extended Z-Axis Travel
Coolant Through the Spindle
Wireless Intuitive Probing System
Hand Held Pendant Control
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Visual Part Programming System

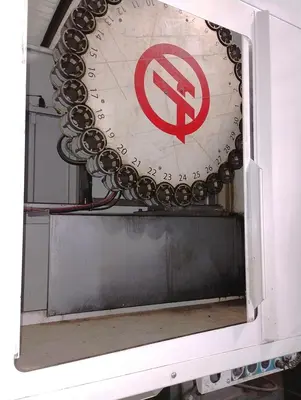

30 Station Tool Changer
Rigid Tapping
CAT 50 Taper Geared Head Spindle

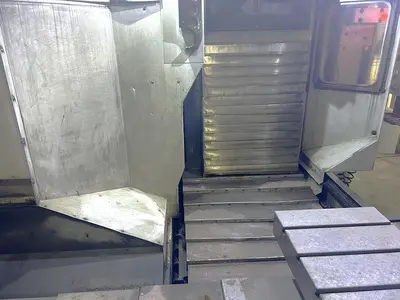

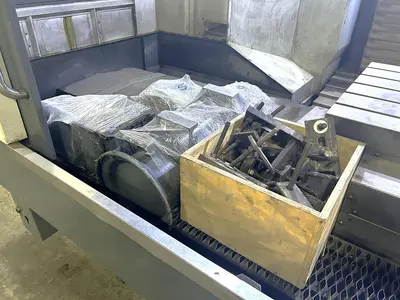

Dual Auger Style Chip Conveyor System
Media Display
Compensation Tables
1GB Program Storage
15" Color LCD Monitor
Wireless Networking
USB Port Interface
RS 232 Port Interface
Memory Lock Key Switch

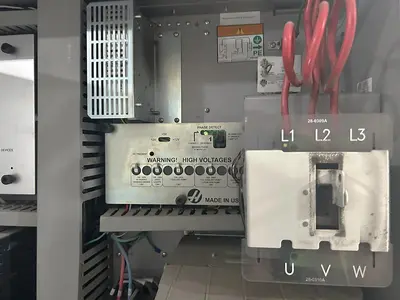

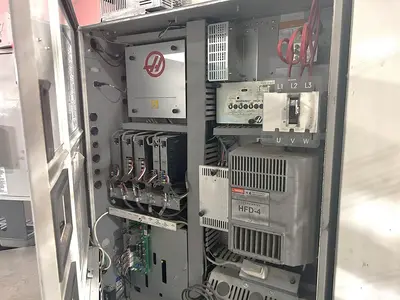

Wired at 220V Electrics

**Approximately 6,100 Cycle Start Hours**
**Approximately 5,300 Feed Cutting Hours**

**Price new as equipped at roughly $466,475**
**There are two identical 2019 Haas EC-1600ZT's that were removed from the same factory, with approximate usage and hours**

The 2019 Haas EC-1600ZT is a robust choice for those requiring a CNC horizontal machining center with advanced capabilities. Featuring an extended Z-axis travel, this model offers a significant 40 inches of Z-axis movement, complemented by 64 inches on the X-axis and 50 inches on the Y-axis. This extensive range allows for the handling of large workpieces with precision. It includes a 64" x 36" table with a maximum load capacity of 10,000 lbs, ideal for heavy-duty operations.

Equipped with a Haas NextGen Control system, the machine integrates a full 4th axis for versatile rotational capabilities. The spindle operates at a speed of 7,500 RPM, powered by a 30 HP 2-speed geared head, and is built to handle CAT 50 tooling. The tool changer has a 30-position capacity, facilitating efficient workflow and reduced downtime. Additional features such as Through Spindle Coolant (TSC) and Renishaw probing enhance accuracy and productivity.

The EC-1600ZT is designed to meet demanding industrial environments with machine dimensions of 192" x 166" x 136" and a weight of 35,000 lbs. Its rapid traverse rates reach up to 540 inches per minute, ensuring swift and precise operations, and it supports maximum tool dimensions of 10" in diameter and 20" in length with a weight limit of 30 lbs each.

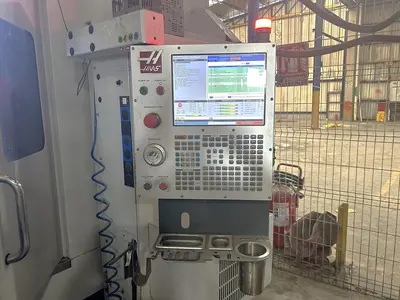

Machine Control: Haas NextGen Control

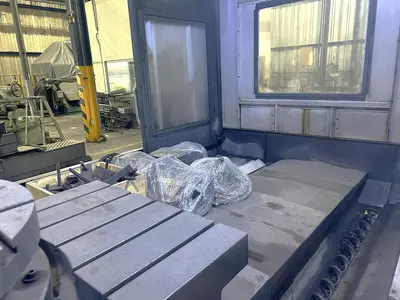

Table Size: 64" x 36"
Maximum Table Load: 10,000 lbs
B-Axis Table Rotation: Full 4th Axis
X-axis travel: 64"
Y-Axis Travel: 50"
Z-Axis Travel: 40"

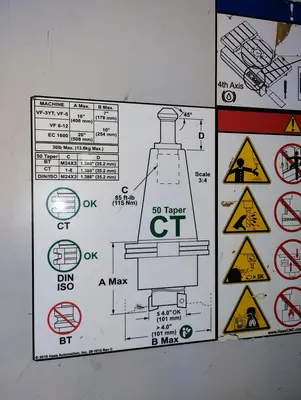

Spindle Taper: CAT 50
Spindle Speed: 7,500 RPM
Spindle Motor: 30 HP 2-Speed Geared Head
Tool Magazine Capacity: 30 Position Tool Changer
Rapid Traverse Rates: 540 IPM
Maximum Tool Diameter / Length / Weight: 10" / 20" / 30 lbs
Machine Dimensions LxWxH: 192" x 166" x 136"
Machine Weight: 35,000 lbs
