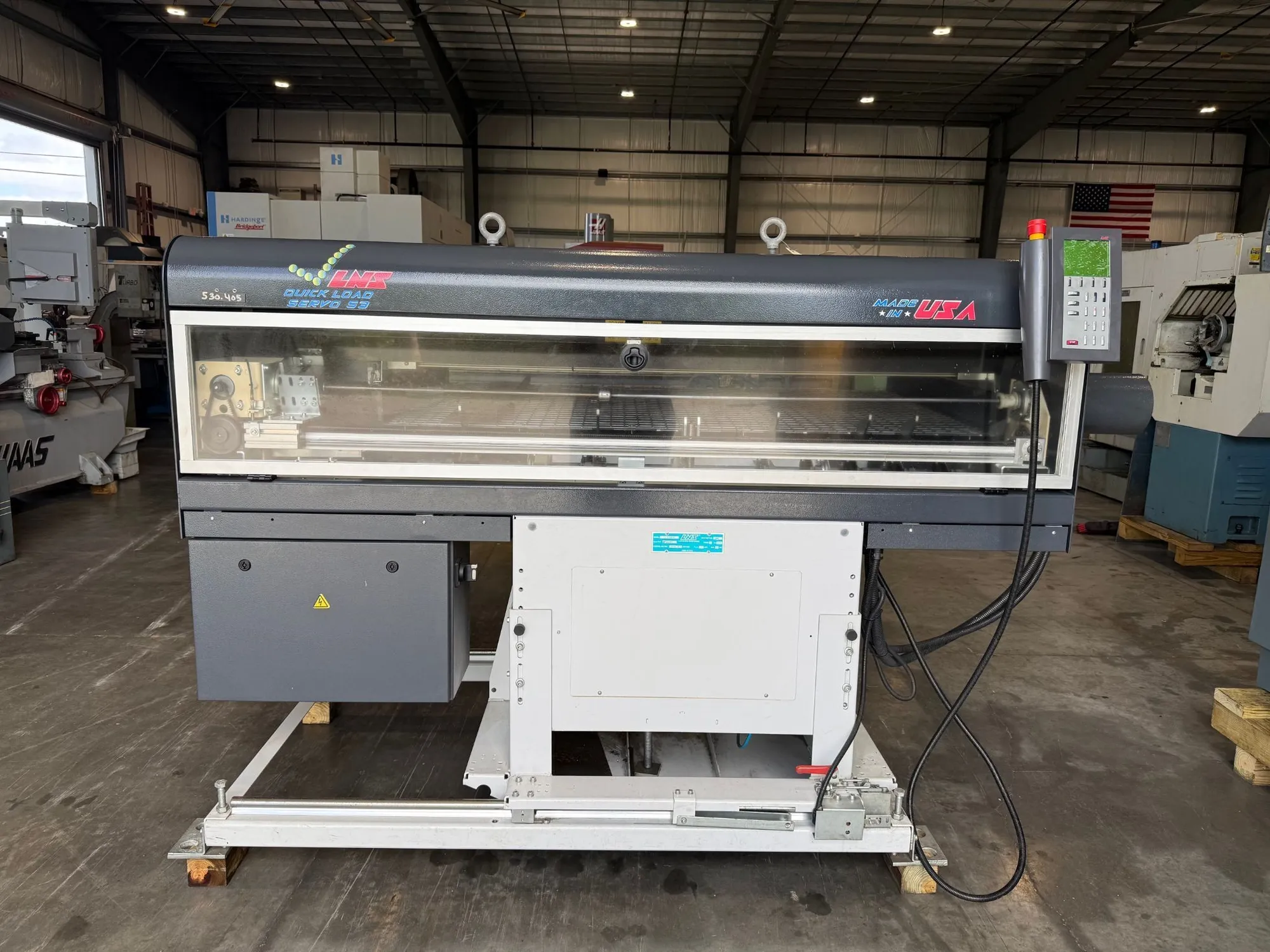

LNS Quick Load Servo S3 Magazine Barfeeder 4.7” capacity #8228
| Capacity | 4.75" | 120.65 mm |
| Bar Length | 5' | 1.5 m |
| Dimensions | 99” x 53” x 65” H | 99” x 53” x 65” H |
| Weight | 1500 Lbs. | 1500 Lbs. |
LNS Quick Load Servo S3 Magazine Barfeeder 4.7” capacity #8228
Reference # 8228
Serial # 303118
Bar capacity- 0.23” – 4.7”
Maximum bar length- 63”
Magazine depth- 39”
Loading cycle time- 8 – 12 Seconds
Control pendant
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 1,500 Lbs.
Machine dimensions- 99” x 53” x 65” H
Machine location- F.O.B. Sarasota, Florida
