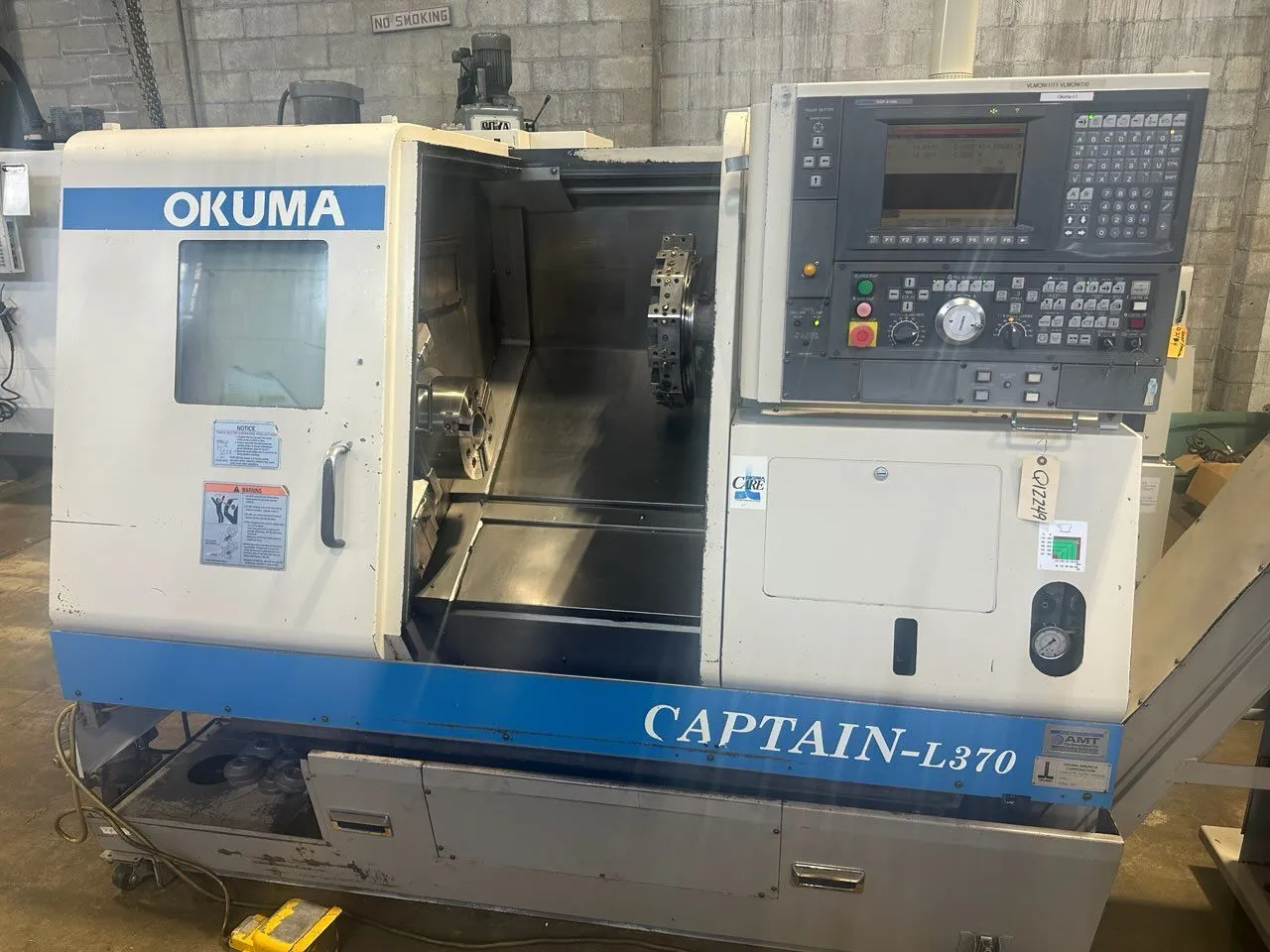

OKUMA CAPTAIN-L370 CNC TURNING CENTER, OSP-E100L CNC Control, 10" Kitagawa 3-Jaw Hydraulic Chuck, 20.8" Swing, 19.68" Max Turning Length, 2.33" Spindle Through Hole, 4500 RPM Spindle, 12-Position Turret, Touch Setter, Chip Conveyor & Coolant System, New 2003.
| CNC Control | Okuma OSP-E100L CNC | Okuma OSP-E100L CNC |
| # Axis | 2 | 2 |
| Max Swing Over Bed | 20.8" | 528.32 mm |
| Max Swing Over Saddle | 16.53" | 419.86 mm |
| Max Turning Length | 19.68" | 499.87 mm |
| Chuck Size | 10" 3-Jaw | 254 mm |
| Max Turning Diameter | 14.56" | 369.82 mm |
| X-Axis (Cross Travel) | 10.23" | 259.84 mm |
| Z-Axis (Longitudinal Travel) | 20.47" | 519.94 mm |
| X-Axis Feed Rates | 39.4 in/min. | 1 m/min. |
| X-Axis Rapid Traverse Rate | 787 in/min. | 20 m/min. |
| Z-Axis Feed Rates | 39.4 in/min. | 1 m/min. |
| Z-Axis Rapid Traverse Rate | 984 in/min. | 25 m/min. |
| Sub Spindle | No | No |
| # Tool Turrets | 1 | 1 |
| Tool Turret Positions | 12 | 12 |
| Live Tooling | No | No |
| Spindle Nose | A2-6 | A2-6 |
| Spindle Bore | 2.44" | 61.976 mm |
| Max Spindle Speed | 4,500 RPM | 4,500 RPM |
| Spindle Power | 20 hp | 14.9 kW |
| Tailstock | Yes | Yes |
| Tailstock Quill Travel | 4.72" | 119.89 mm |
| Tailstock Quill Diameter | 3.54" | 89.916 mm |
| Electrics | 220/3/60 | 220/3/60 |
| Dimensions | 86.61" x 67.72" | 86.61" x 67.72" |
| Weight | 9,240 lbs | 9,240 lbs |
Okuma OSP-E100L CNC Control, One Touch- IGF, 10" Kitagawa B-210 3-Jaw Hydraulic Chuck, 4500 RPM Spindle, 2.33" Through Hole, 12 Position Tool Turret, Touch Setter, Chip Conveyor & Coolant System.
