NEW 2026 REM SCR 17 CNC 1SF
Overview

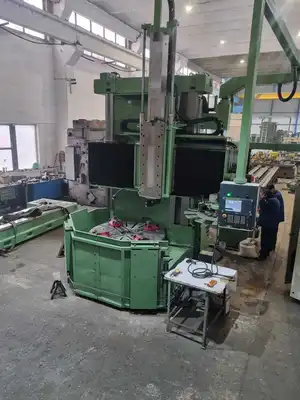

2026 REM SCR 17 CNC 1SF — New CNC Vertical Turning Lathe, Expedited - under production
MACHINE STRUCTURE & MAIN ASSEMBLIES – MORANDO TYPE STRUCTURE
The REM SCR 17 CNC 1SF is a numerically controlled vertical lathe designed with one working head with built-in live spindle, automatic tool clamping for both live tools and turning tool holders, and one ATC magazine fitted on the right end of the cross rail. Main operations: inner/outer cylindrical turning, facing with constant cutting speed, contouring, drilling, boring, milling and threading.
• Monoblock high-strength cast iron bed, heavily ribbed
• Main drive with 2-step ZF gearbox and Poly-V belt transmission
• Table mounted on TIMKEN roller cross bearing
• Movable cross rail working along the two opposite guideway seated on one heavy duty column
• Working head with built-in live spindle (Turning + Milling)
• Automatic tool clamping for both turning and live tool holders
• Centralized lubrication and hydraulic equipment
• Coolant plant with chip conveyor
• Full safety enclosure (CE marked)
Specs
TECHNICAL SPECIFICATIONS — REM SCR 17 CNC 1SF
Table diameter 1450 mm 57.09"
Max. swing diameter 1700 mm 66.93
Max load on table 8 Tons
Max. turning height under crossrail /toolholder 1750 / 1550 mm 68.9" x 61.02"
Ram travel (vertical) – Z axis 1250 mm 49.21"
Ram size 225mm X 225 mm 8.86" x 8.86"
Tool holder shank size 40x40 mm 1.57" x1.57"
Feed rates (X & Z axes) 1 to 8000 mm/min.
Rapid feed (X & Z axes) 8000 mm/min.
No. of gear steps 3
Table speed infinitely variable 2 to 200 rpm.
Main motor 40 kW/6000rpm 53.4HP
4 Mechanical jaw chuck Included
T slots (in table) Included
Automatic toolchanger 12 pos
Working light Included
Overall dimensions
Machine height 5000 mm 196.85"
Necessary floor space 4500 x 3800 mm 177.17" x 149.61"
Net weight 24.000 kg 52,911 lbs

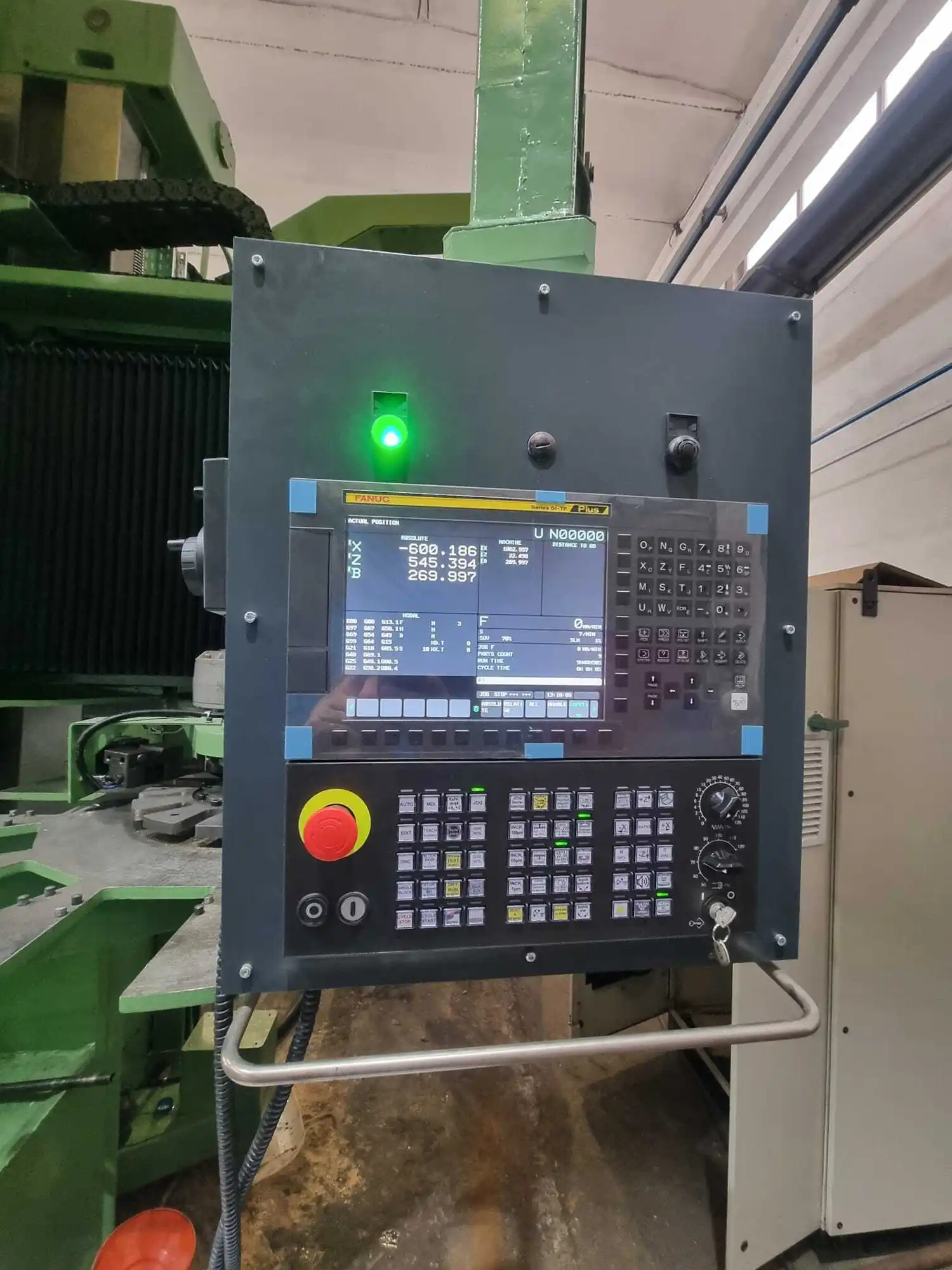

CNC Controller
Type
Manufacturer Fanuc 0iF
Equipped With
• Foundation kit = 1 set.
• Special keys = 1 set.
• FANUC AC digital servomotors and drives for all axes.
• AC motor for main spindle.
• Full Control panel.
• CNC control system FANUC 0iF
• Ball screws and feed mechanism.
• Hydraulic system.
• Automatic Centralized lubrication system.
• Machine lighting.
• ATC 12 pos
