USED 2021 FANUC FANUC M-20ID/35

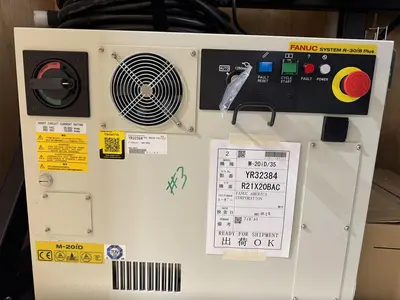

This used FANUC M-20iD/35 (2021) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller.

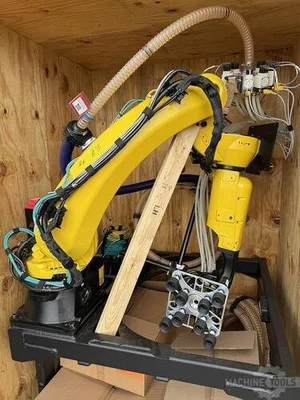

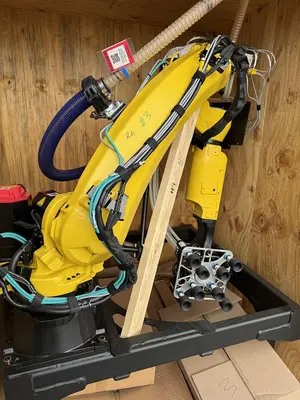

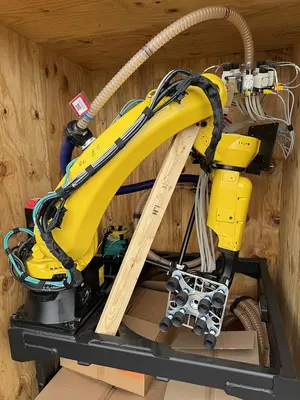

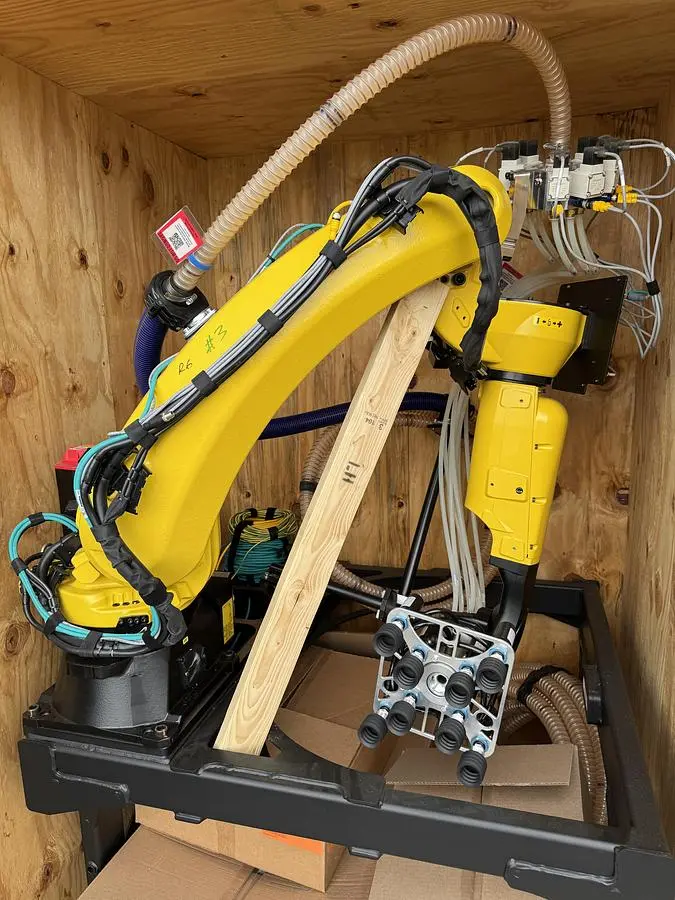

1-BARELY USED FANUC M-20iD/35 ROBOT WITH R-30iB PLUS CONTROLLER,

TEACH PENDANT, AND CABLES.

HOURS SHOW ON METER:

MECHANICAL ARM TYPE A05B-1228-B402

FACTORY ASSIGNED ARM SN R21X20BAC

SERIAL NUMBER: F

DATE OF MFG.

STK#105455

======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

Payload: 35KG

Repeatability: +/- 0.03 mm

Mechanical unit weight: 250 kg

Reach: 1831 mm

Motion Ranges:

J1: 370° or 340°

J2: 260°

J3: 458°

J4: 400°

J5: 360°

J6: 900°

Maximum Axis Speeds:

J1: 180 °/s

J2: 180 °/s

J3: 200 °/s

J4: 350 °/s

J5: 350 °/s

J6: 400 °/s

With a payload of 35 kg, this robot is designed for handling large parts of materials. Equipped with outstanding axis speeds and best-in-class accuracy, this robot is suitable for a wide range of applications. M-20iD series robots offer high flexibility for use in wrist-load applications up to 35 kg. They ensure high speeds for handling, pick & place and machine servicing operations.

Sold FOB Imlay City, MI 48444. Freight is arranged and paid by the buyer. R.A.B. Industries can assist with loading and can recommend carriers. Contact us at 586-752-0090 for assistance coordinating transport.
