USED 2023 GMC HPB-7006

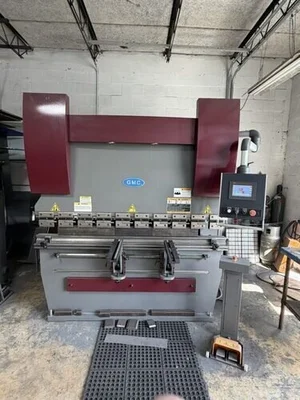

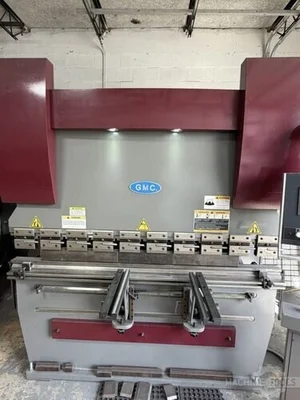

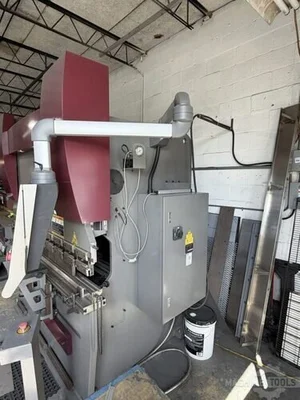

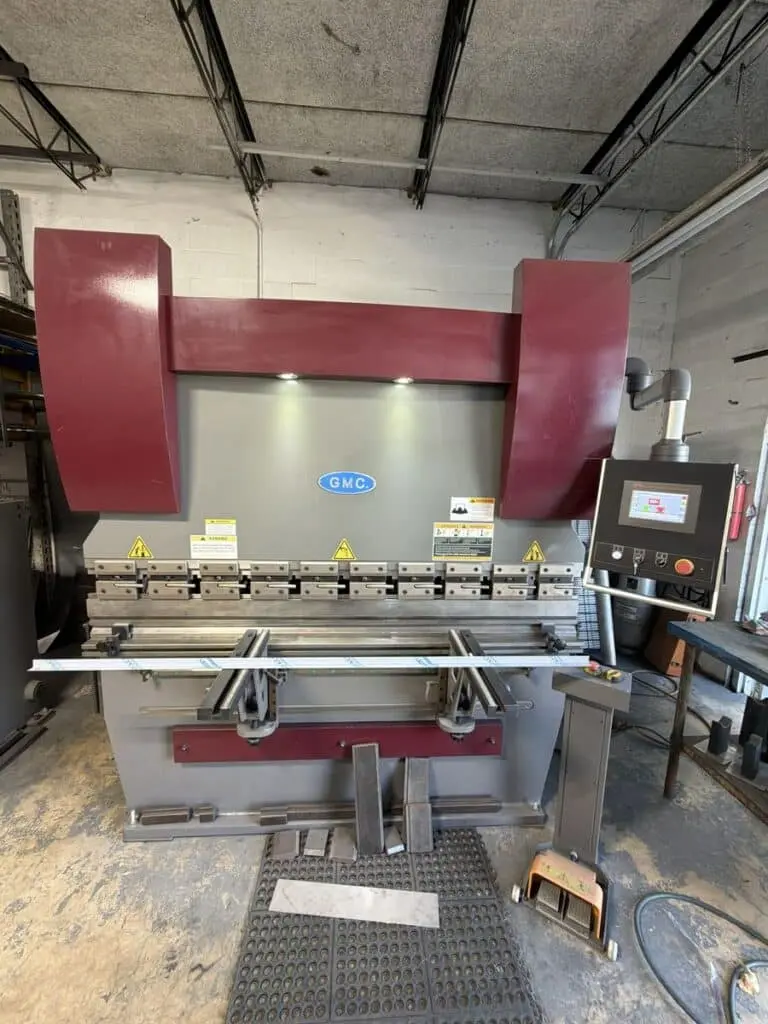

GMC HPB-7006 70 Ton x 6' CNC Hydraulic Press Brake

General Info

Stock #: 131260010
Location: FL
Brand: GMC
Model: HPB-7006
Year: 2023
Approx. Shipping Weight: 10,000 lbs
Approx. Shipping Dimensions: 109" x 66" x 98"
Loading Fee: Rigging Required

Specifications

Maximum Tonnage: 70 Tons
Bending Length Capacity: 80"
Distance Between Uprights: 63"
Ram Stroke Travel: 6"
Table Width: 6"
Daylight: 15 1/4"
Throat Depth: 10"
Back Gauge Distance: 24"
Approach Speed: 3.14 ips
Working Speed: 0.35 ips
Return Speed: 2.36 ips

Equipped With

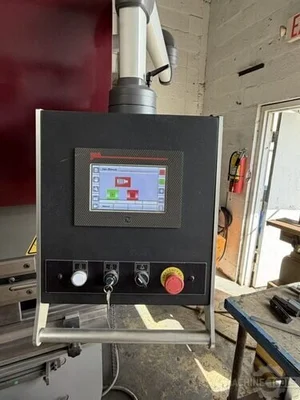

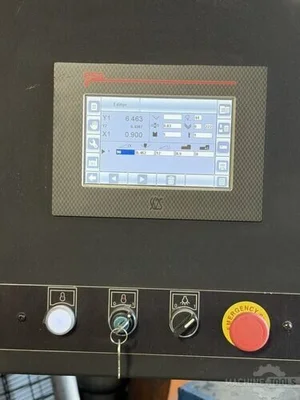

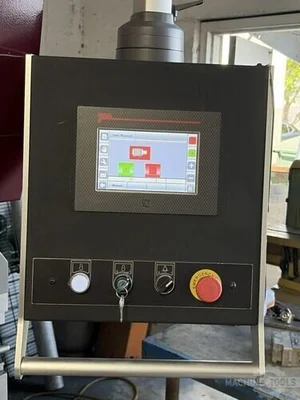

ESA Model 625, 2 Axis CNC Controller, (2) 24" front support arms, Quick Release for easy positioning, Quick release segmented (American Style Tooling) punch holder, Full Length Vee Die

Additional Info
Machine can demonstrated upon request.
