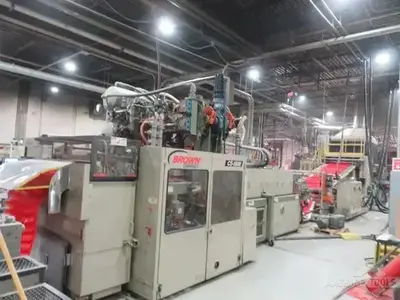

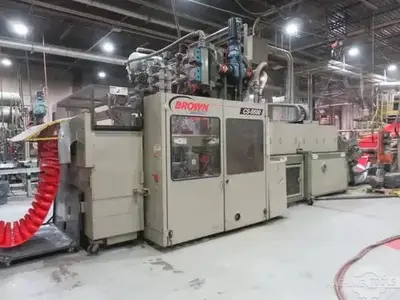

USED BROWN BROWN CS-5500 QUAD SERIES

Thermoformer w/ Brown T-345V V-Series Trim Press

Request a Quote
Add to Cart

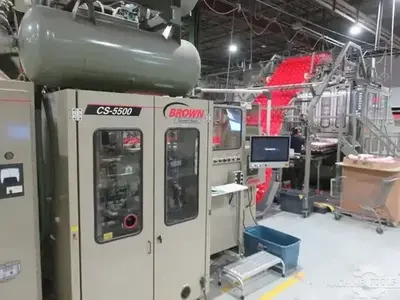

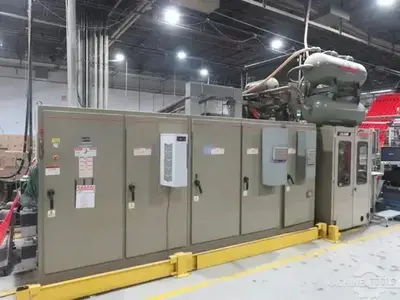

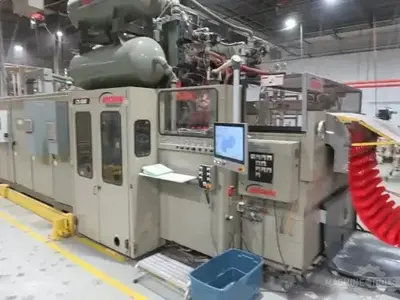

Brown Former (2011-Upgraded 2023): CS-5500 Quad Series Match Metal Continuous Former
Max Mold Capacity: 50" x 50"
Top Oven: Ceramic
Bottom Oven: Ceramic (Rblt. 2023)
Oven Length: 150"
Indexing: Servo (Upgraded Kinetix 7000 Drive System)
Platen Stroke: 9.0"

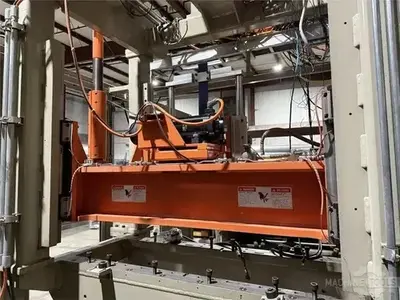

Form Station Platen Drives: Servo Platen Drives
Form Station Tonnage: 155 Tons
Form Station Holding Force: 260 Ton Holding Force
Coining Force Tonnage: 180 Ton
Draw Depth: 7.0" Draw

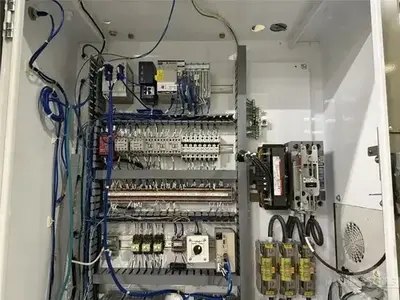

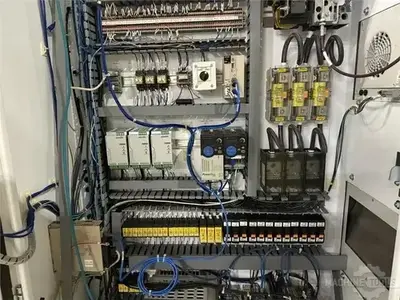

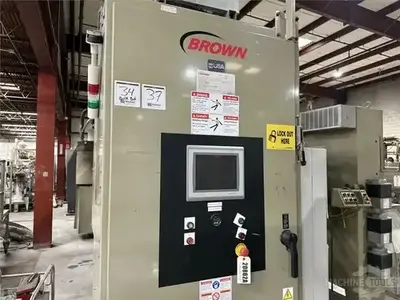

Control: Programmable Touch Screen (Upgraded)
Sheet Cutter: Brown Sheet Slitter (2008)
Shipping Dimensions: 28' L x 9' W x 12' H at Approx. 44000 Lbs.

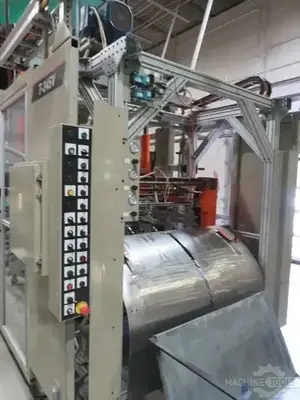

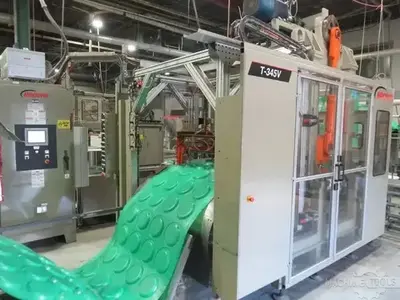

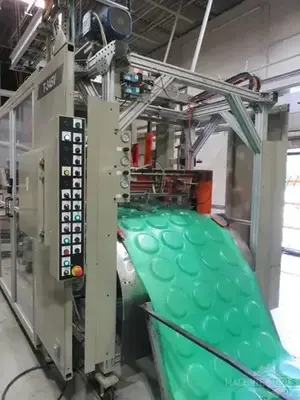

Brown Trim Station (2021): Model T-345V / V-Series High Speed Vert. Trim Press
Trim Station Tonnage: 30 Ton
Max Die Size: 57" x 30"
Max Strokes Per Min: 145
Max Sheet Width: 53"

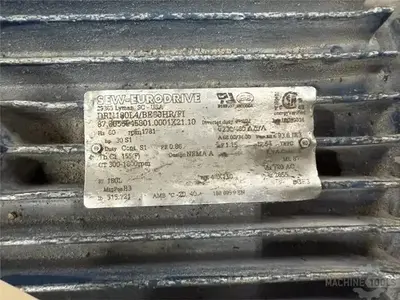

Platen Drives: 30 HP SEW AC Servo Motor

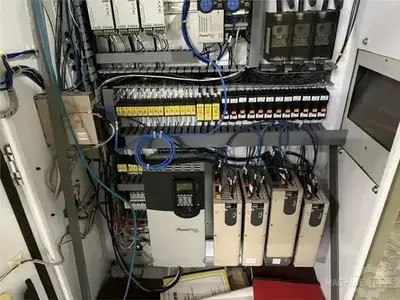

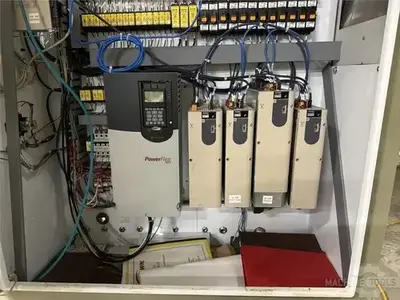

Drive Controller: Allen Bradley PowerFlex 755
Controller: Allen Bradley PanelView Plus
Part Ejection: Servo Part Ejection
Power Requirement: 480v / 3 ph / 60hz / 117 amps
Footprint: 270" L x 195" x 170"
Weight: Approx. 24000 Lbs
(2) Plate Line Loading & Unloading Carts
