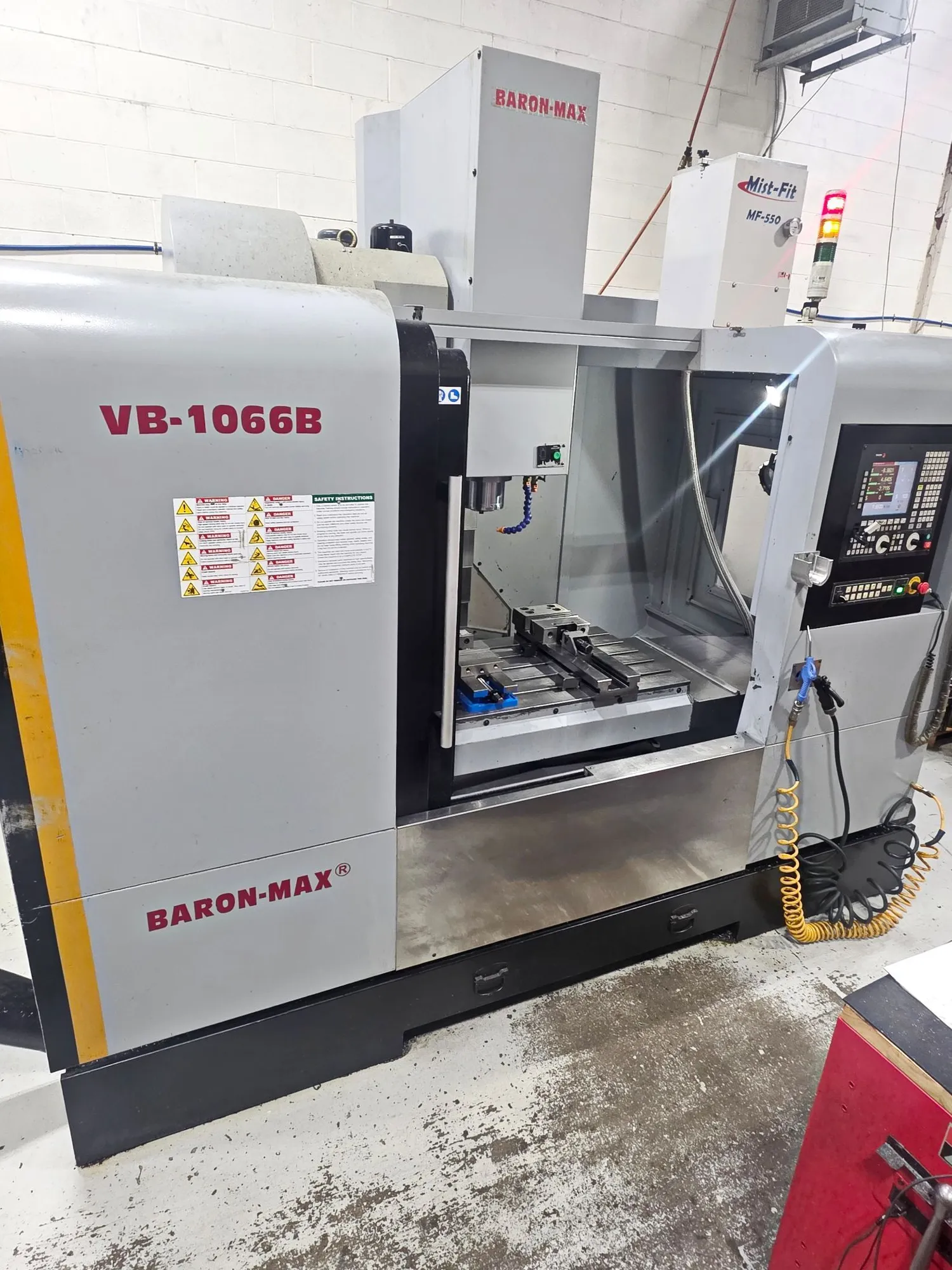

2016 Baron-Max VB-1066B Vertical CNC Machining Center, High-Pressure TSC W/ Filtration, 4th Axis Ready, Mist Collector, Chip Auger, Spindle Chiller
| X-Axis | 41.3" | 1,049 mm |
| Y-Axis | 23.6" | 599.44 mm |
| Z-Axis | 23.6" | 599.44 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | BT-40 | BT-40 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 43.3" | 1,099.8 mm |
| # Axis | 3 | 3 |
| Max Table Load | 1,700 lb | 771.1 kg |
| Distance Spindle Nose to Table | 27.9" | 708.66 mm |
| Rapids (X/Y/Z) | 944 / 944 / 787 in/min. | 944 / 944 / 787 in/min. |
| Made In | Taiwan | Taiwan |
| Control | CNC (Fagor 8055i) | CNC (Fagor 8055i) |
| Dimensions | 110" X 95" X 102" (Approx.) | 110" X 95" X 102" (Approx.) |
| Weight | 14,300 lb | 14,300 lb |
High-pressure through spindle coolant w/ filtration
4th axis ready
Mist-Fit MF-550 mist collector
Chip auger
Spindle chiller
Automatic lubrication system
