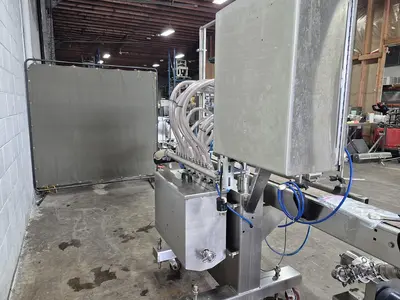

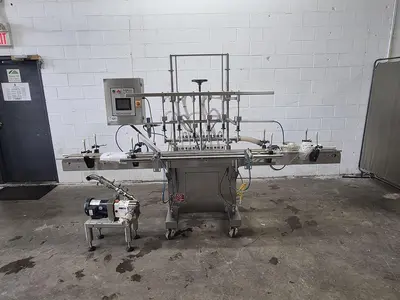

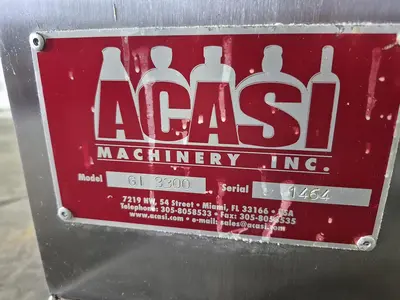

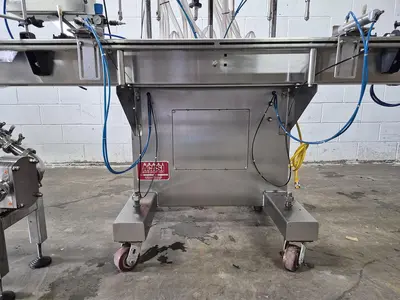

USED ACASI MACHINERY INC. GI3300

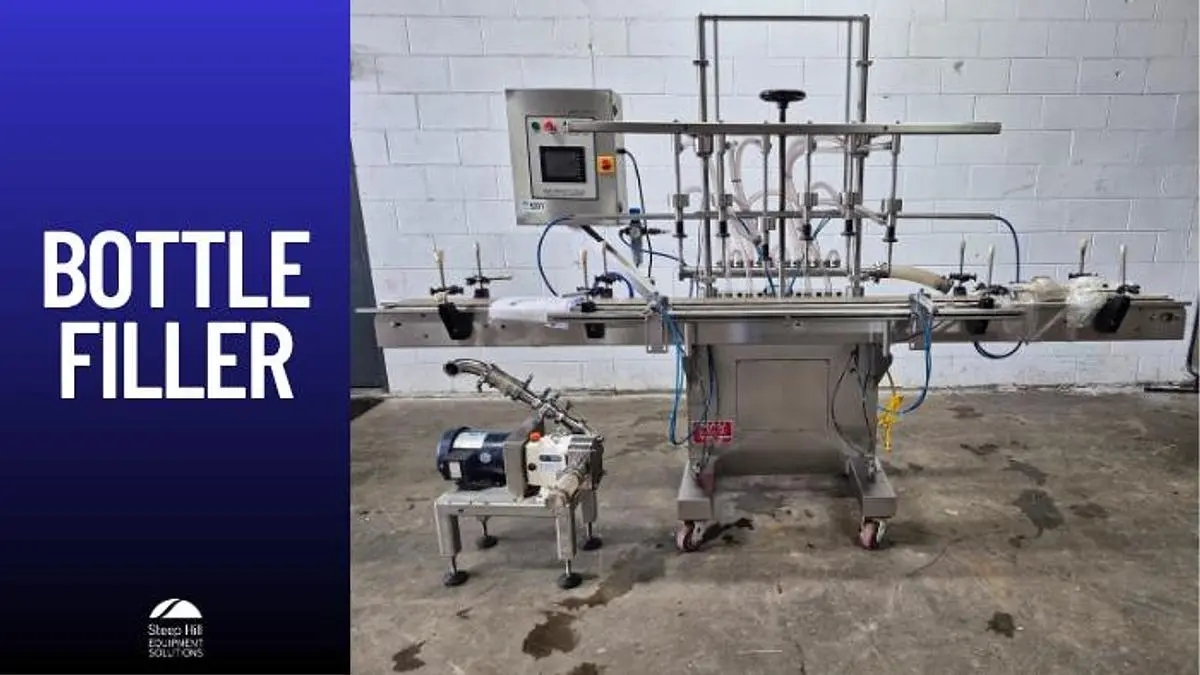

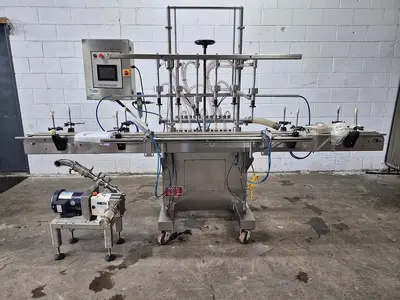

Acasi Expandable Pressure Overflow Bottle Filler
Is an automatic inline pressure overflow bottle filling machine designed for low to medium-viscosity liquids. It is primarily used in industries like beverages, cosmetics, and cleaning solutions where consistent fill levels and product appearance are critical.
Specs:

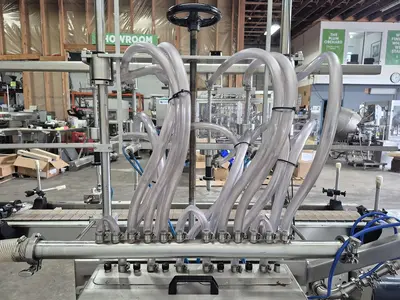

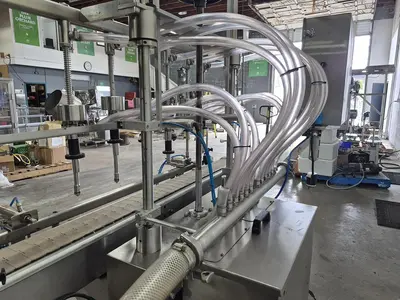

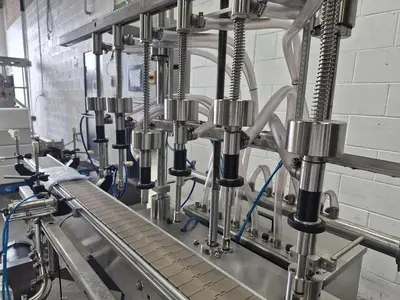

Filling System:  Uses a pressure overflow system with two tubes per nozzle (one for fill, one for return) to ensure containers are filled to a predetermined level
Capacity & Speed: Features a 20-gallon stainless steel overflow tank and a centrifugal pump capable of 96 gallons per minute
Container Height: Accommodates containers from 1 to 16 inches tall

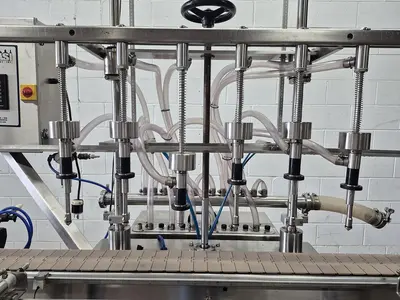

Nozzle Stroke: Adjustable from 0 to 10 inches
Expandability: Can be expanded to hold up to 20 nozzles to increase production speed
Controls: Equipped with an Omron PLC for machine logic and a color touch-screen control panel

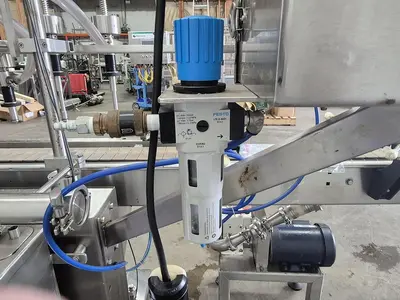

Power Requirements: Operates on 220 Volts, 60Hz, and 10 Amps, requiring 5 CFM of air at 80 p.s.i.

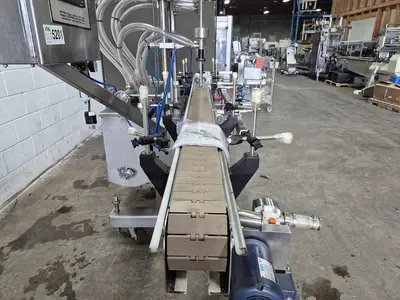

Conveyor: 112.50" L x 4.5" W x 34" Discharge Height

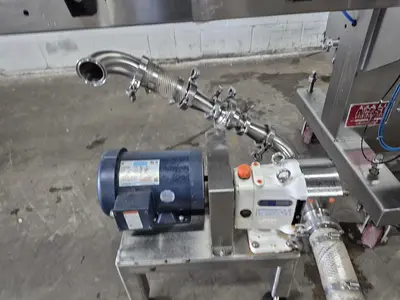

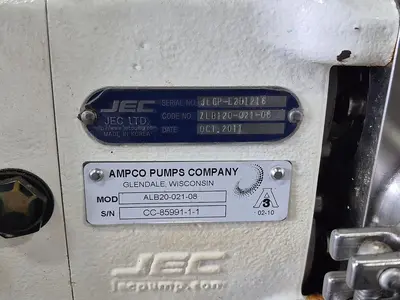

Comes with a JEC Ltd. (now a Verder company) JRZL Rotary Lobe Pump
Specs:

Inlet/Outlet: 2 inches
Max Flow Rate: 100 liters/min (at max rpm)
Max Pressure: 8 bar (approx. 115 psi)
Max Speed: 800 rpm

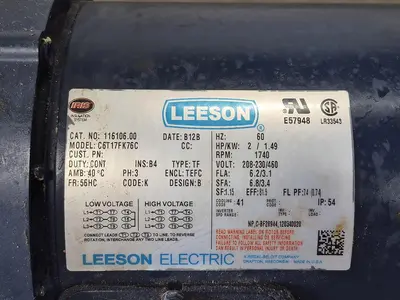

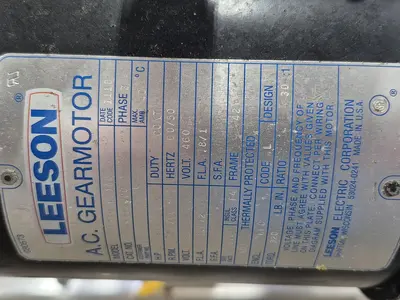

Pump powered by a LEESON Electric
Specs:

Model: C6T17FK76C
Power: 2 HP (1.49 kW)
Speed: 1740 RPM
Voltage: 208-230/460 Volts (Three Phase)
Frequency: 60 Hz

Dimensions (l x w x h): 120" x 35" x 76"
