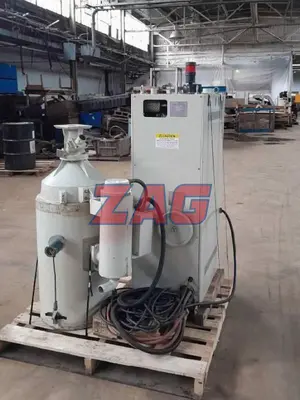

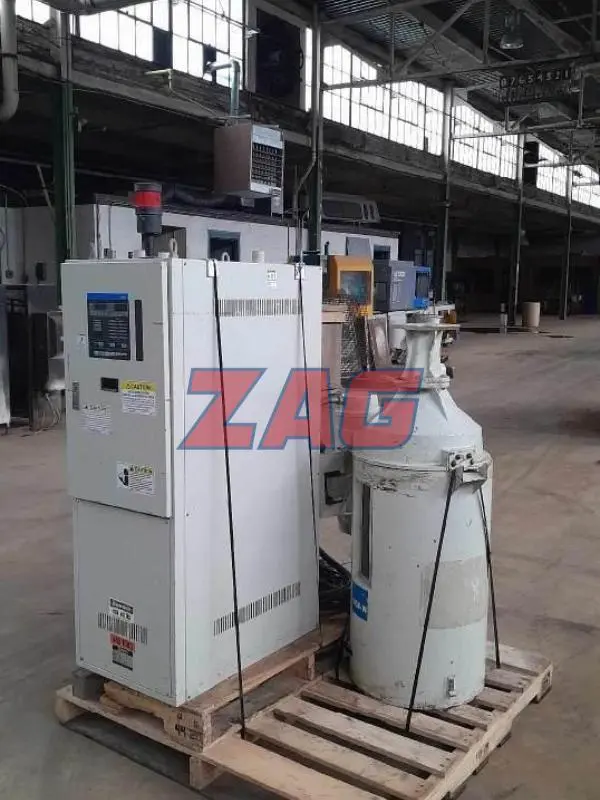

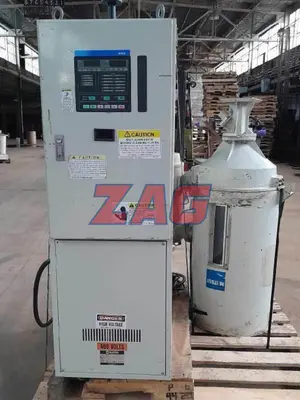

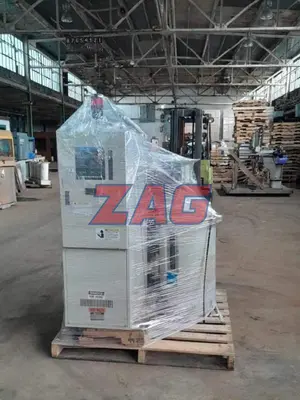

USED MATSUI DMZ-80-50

Manufacturer
Matsui
Model
DMZ80-50
Voltage
460V
Capacity Throughput
Apporx 50 lb/r
Approx 50 lb/hr of most materials
Hopper capacity:  110 lb / 50 kg
Hopper construction:  stainless steel
Hopper model:  HDII-50
Max drying temp:  256F
Style:  rotary
Voltage:  460V
Process heater size:  2.4kw
Air flow connection size:  2"
Single wall hopper
Vacuum take off size:  1.5"
Equipped with:  dew point meter, after cooler
Hopper width:  15.75"
Hopper straight wall height:  30"
Hopper overall height:  46.5"
Hopper cone height:  9"

Dimensions:  42"L x 28"W x 70"H
Weight:  340 lbs.
