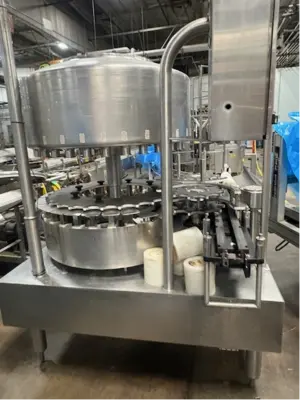

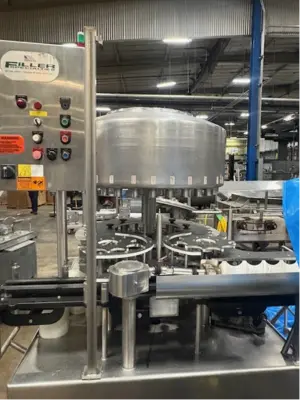

FILLER MODELAWFS30 Left Hand
CAPPER TYPENA
MOTOR1 HP, Voltage 220. Motor Pulley: 6", Gearbox Pulley: 6". Filler Speed (HI) 200, (LO) 20. Filler Belt: A-38.
VALVE TUBE LIST
VALVE SLEEVE LIST
VALVESTop Shoulder to bottom of O-ring: 5.00. TUBES: SS,EMV,590G. Bowl Gasket: NONE. SLEEVES: 590G, 1.825. O-RING: 1111S. DIAPHRAGM RUBBERS: 728885G. VALVE RUBBERS: 18690. DEROMETER: 25, 38500-LS. Max Ht Bowl: 19.75", Min Ht Bowl: 10.75".
RAISE/LOWER
CAPPER INFO: NA
BHE EQUIP#1) downfill 1", opening 28", plastic, 16 oz. #2) downfill: 1.250, opening 28, plastic, 32 oz.
CONLIFTLifter Size: A-pad. Pl. Inserts: No. Top Center to Center Hole: Bowl 8.875, Capper N/A.
BOWL COMPONENTSFloat Size 1 1/2" TC. Product Supply 1 1/2".
