SERIAL .................... 1685 5-77

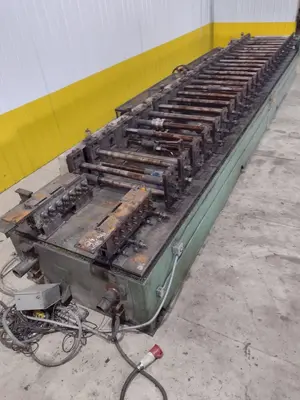

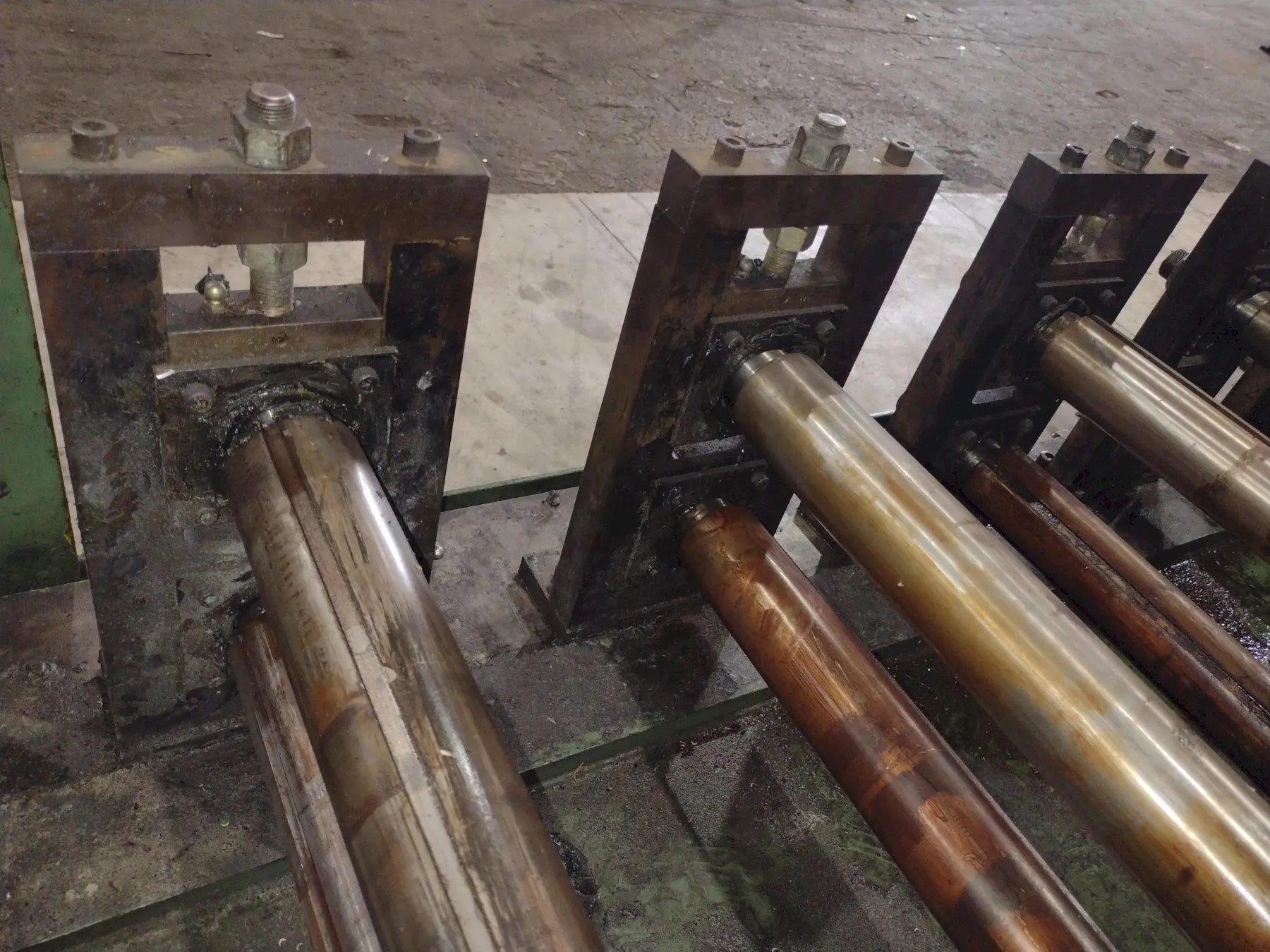

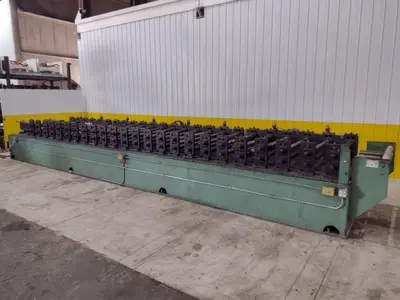

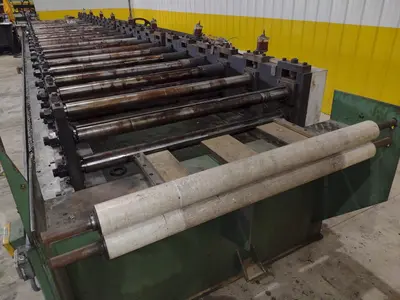

MODEL ..................... 24 STAND DOOR PANEL
STANDS .................... 24
ARBOR ..................... 3"
ROLL SPACE ................ 46"
CAPACITY .................. .019" TO .035"
HORIZONTAL CENTERS ........ 14"
VERTICAL CENTERS .......... 5.5" TO 7"
BASE TO LOWER SPINDLE ..... 5.5"
DRIVE GEARBOXES ........... 4
GEARBOX RATIO ............. 15:1
PASS LINE ................. 39"
EXIT SIDE ROLLS ........... YES WITH TOOLING
MOTOR ..................... 40 HP DC WITH CONTROLS
Brand
CLINTON
Type
Roll Formers
Stock No.
21327
