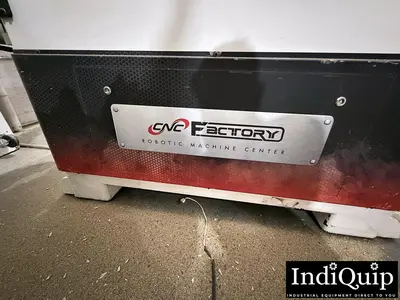

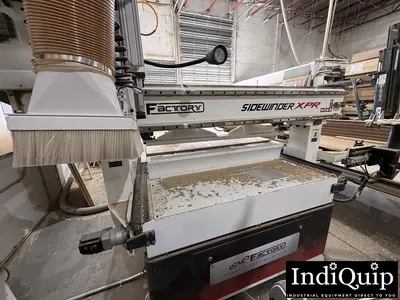

USED 2023 CNC FACTORY SIDEWINDER XPR

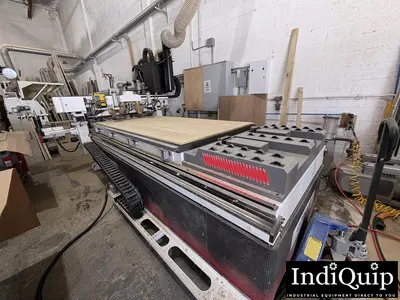

2023 CNC Factory Sidewinder XPR 4x8 CNC router with 12HP spindle, 8-tool ATC, and high-flow vacuum table. Turnkey cabinet shop package with V300 vacuum pump, tooling, and training included.

Table Size: 4' x 8'

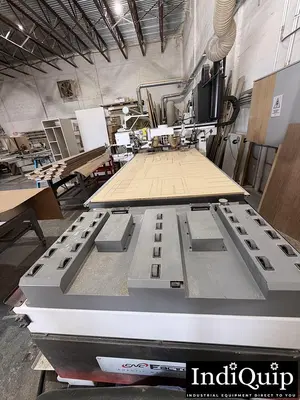

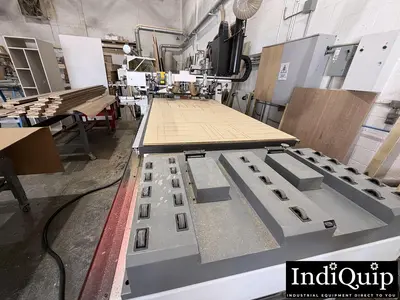

Vacuum Table: 4-zone, dual-layer high-flow phenolic grid
Spindle: 12 HP air-cooled ATC spindle
Spindle Speed: 1,000 – 24,000 RPM
Tool Holder Type: ISO-30

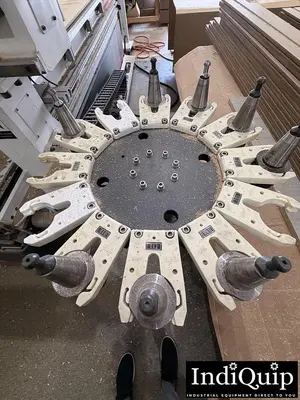

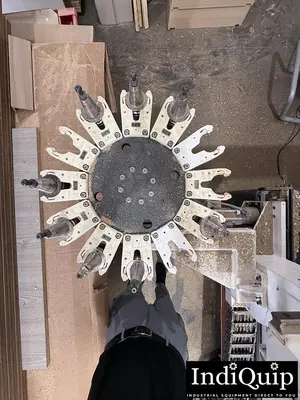

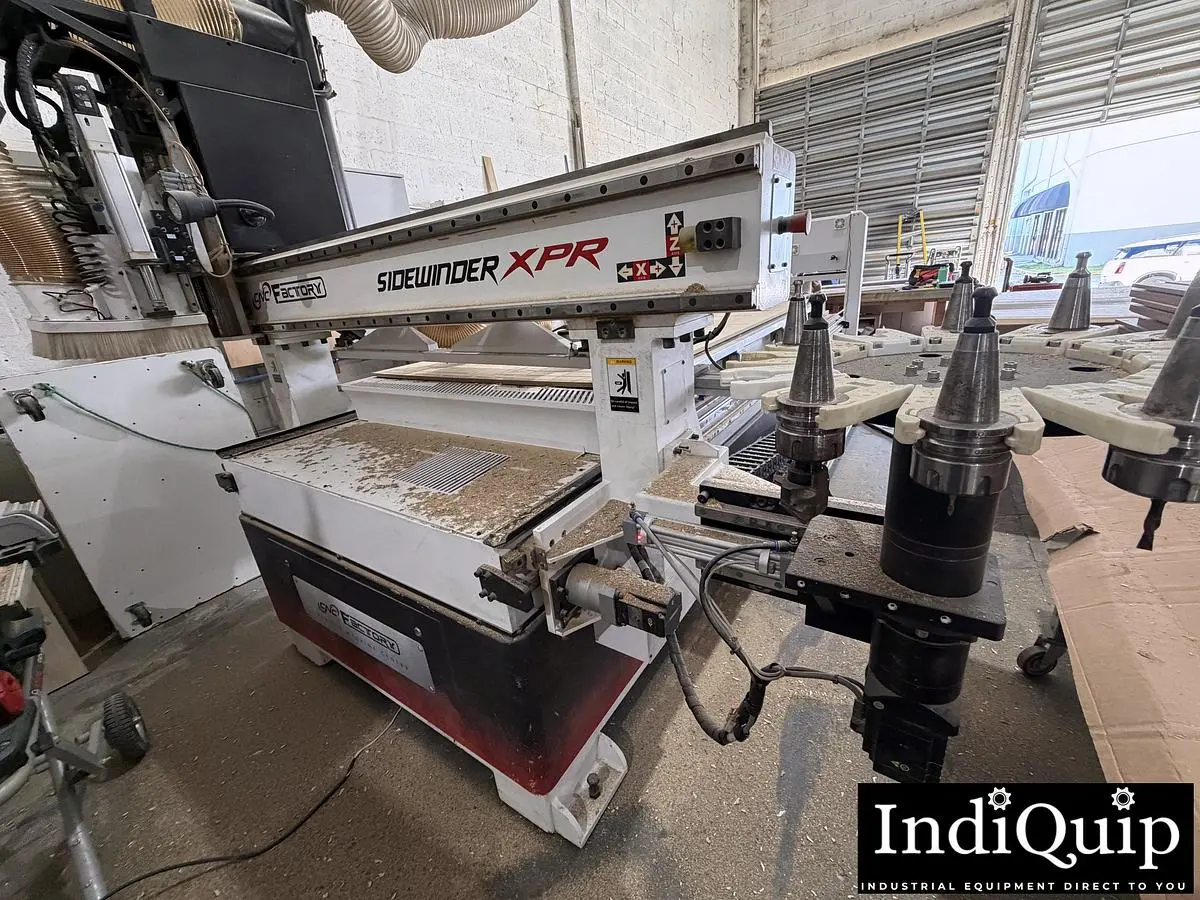

Tool Changer: 12-position rotary ATC
Tool Change Time: ~8 seconds
Max Cutting Speed: 1,200 IPM
Rapid Traverse: 2,200 IPM
Positioning Accuracy: ±0.001"

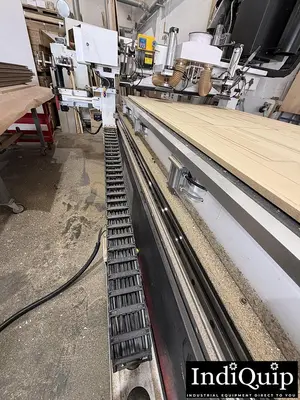

Drive System: 5th generation helical rack & pinion
Servo System: Yaskawa 5G servo motors
Z-Axis Travel: 11.5"
Z Clearance: up to 7"

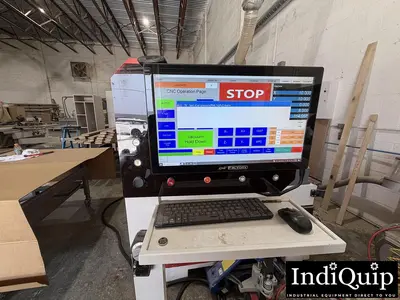

Controller: 21" touchscreen industrial control
Connectivity: WiFi, Ethernet, USB
Software Compatibility: G-code compatible (KCD, VCarve, others)

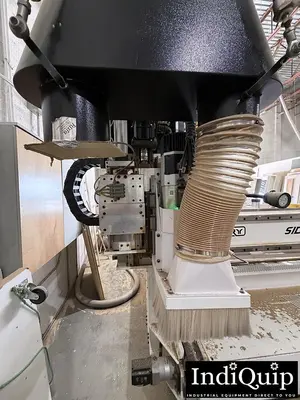

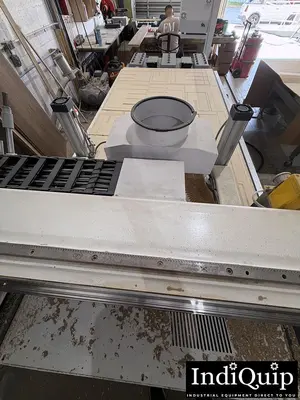

Dust Collection Port: 6"
Dust Collection Requirement: ~2,500–2,800 CFM
Air Requirement: 120 PSI, ~9 CFM
Electrical: 208–240V, 3 Phase, ~30–40 Amp
Machine Weight: approx. 7,200 lbs
